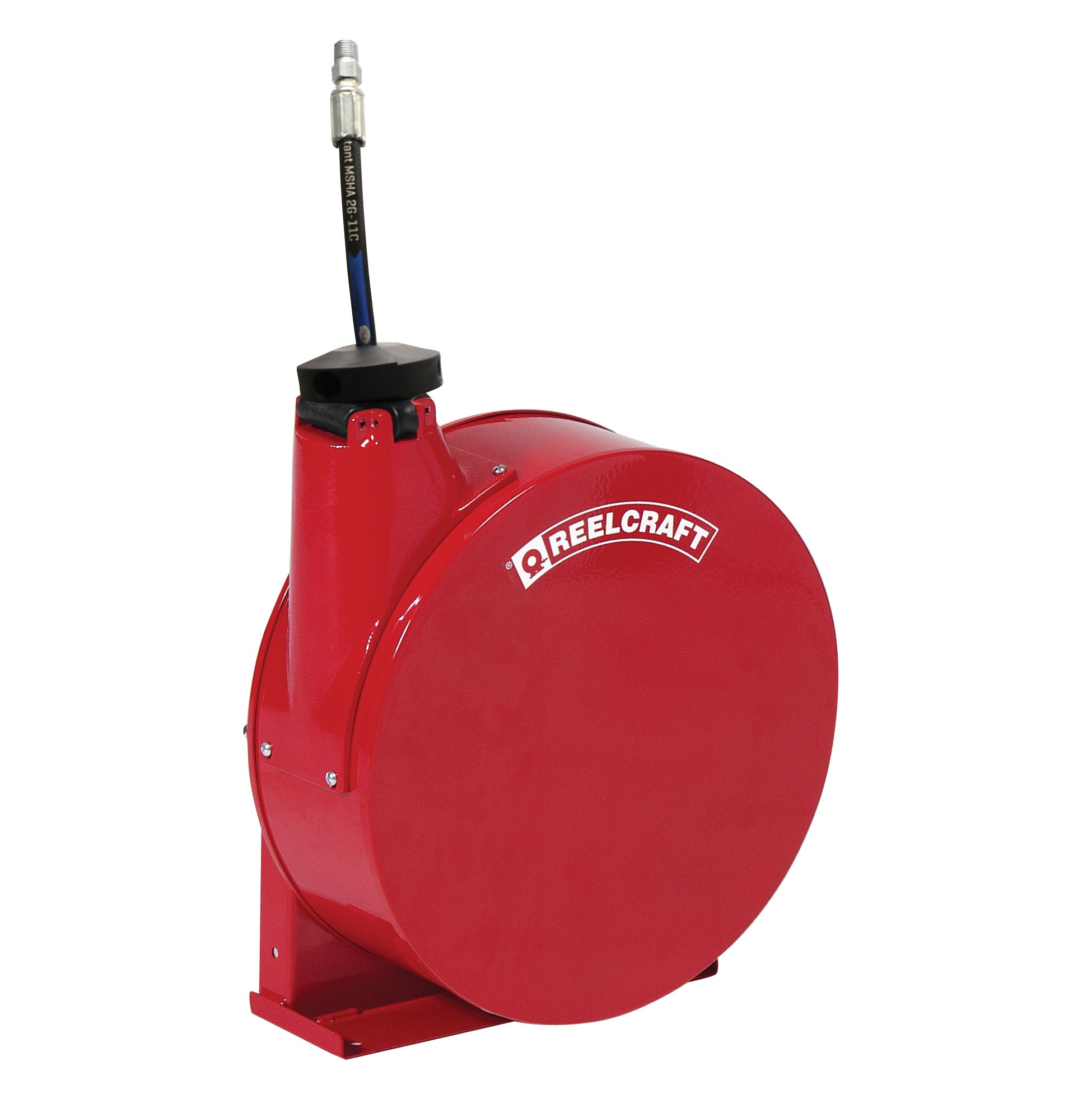

REELCRAFT AV5425 ELP Spring Return Hose Reel, 25 Ft, 1/4 Inch Size Mnpt, 300 Psi Max Op Pressure
Get it by Tuesday, Aug 25
Payment
Delivery
Product Specifications:
| Item | Spring Return Hose Reel |
| Base Motion Type | Stationary |
| Base Mount Width | 4" |
| Bearing Construction | Permanent Lubricated |
| Corrosion Resistance | Yes |
| Corrosion Resistant | Yes |
| Dimensions A | 15" |
| Dimensions B | 16.25" |
| Dimensions C | 9 3/4" |
| Dimensions D | 2.5" |
| Dimensions E | 7" |
| Drive Type | Spring Return |
| Enclosed | Yes |
| Fasteners Included | No |
| Features | Designed For Air Vending |
| Finish | Powder Coating |
| Fitting Size | 1/4" x 1/4" |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Height | 15" |
| Hose Color | Black |
| Hose Cover Material | Synthetic Rubber |
| Hose End Configuration | 1/4" MNPT |
| Hose End Size | 1/4" |
| Hose End Type | BSP , MNPT |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Steel |
| Hose Fitting A Size | 1/4" |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Steel |
| Hose Fitting B Size | 1/4" |
| Hose Fitting B Type | NPT |
| Hose Included | Yes |
| Hose Inside Dia. | 1/4" , 25 ft. |
| Hose Length | 25 ft. |
| Hose Outside Dia. | 0.47" , 1/2" |
| Hose Reel Primary Application | Air |
| Hose Reel Type | Floor, Vehicle, Wall Mount Hose Reel, Ceiling |
| Hose Tube Material | Synthetic Rubber |
| Included | Hose, Bumper |
| Included Hose | Yes |
| Included Hose Stop | Yes |
| Included Leader Hose | No |
| Inlet Size | 3/8" |
| Inlet Type | FNPT |
| Latch Type | Spring Loaded |
| Length | 16 1/4" |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 150°F |
| Max. Pressure | 300 psi |
| Max. Temp. | 150°F |
| Min. Operating Temp. | 32°F |
| Mount Base Height | 11.594" |
| Mount Hole Center To Center Width | 2 1/4" |
| Mounting | Ceiling, Floor, Wall |
| Mounting Hole Center To Center Height | 9 3/4" |
| Mounting Hole Dia. | 3/8" |
| No. Of Guide Arms | 1 |
| No. Of Mounting Holes | 4 |
| Overall Height | 15" |
| Overall Length | 16 1/4" |
| Overall Width | 7" |
| Pedestal Type | Single Pedestal |
| Pressure | 300 psi |
| Product Datasheet | reelcraft-av5425-elp.pdf |
| Reel Color | Red |
| Reel Dia. | 7" |
| Reel Finish | Powder Coated |
| Reel Material | Carbon Steel |
| Reel Outlet Size | 1/4" |
| Reel Outlet Type | FNPT |
| Reel Width | 7" |
| Series | 5000 Series |
| Speed Limited Retraction | No |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 3/8" |
| Swivel Inlet Thread Size | 3/8"-18 |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 1/4" |
| Swivel Outlet Thread Size | 1/4"-18 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| Width | 7" |
Shipping Info:
| Ship weight (kg) | 15.75 |
| Ship height (cm) | 46.36 |
| Ship length (cm) | 39.69 |
| Ship width (cm) | 21.27 |
| Country of Origin | US |
Product Details:
,The AV5425 ELP enclosed hose reel from Reelcraft is designed for air service. The reel is our most compact design able to handle 25 feet of 1/4 inch hose and is small enough to be incorporated into air service stations or inside truck cabinets. It comes with a tough, one wire braid hose to resist abrasion and crushing., , ,Compact – Designed for tight spaces so that it may be mounted inside cabinetry., ,Durable – Reel is made from heavy gauge industrial steel and the hose is abrasion and crush resistant one wire braid., ,Extra protection – Reels feature a steel enclosure that offers an additional level of protection for the hose from potentially harmful foreign debris. The reel are design allows for the cover to be removed from either side of the reel to allow access to the majority of serviceable parts., ,Made in USA, ,
