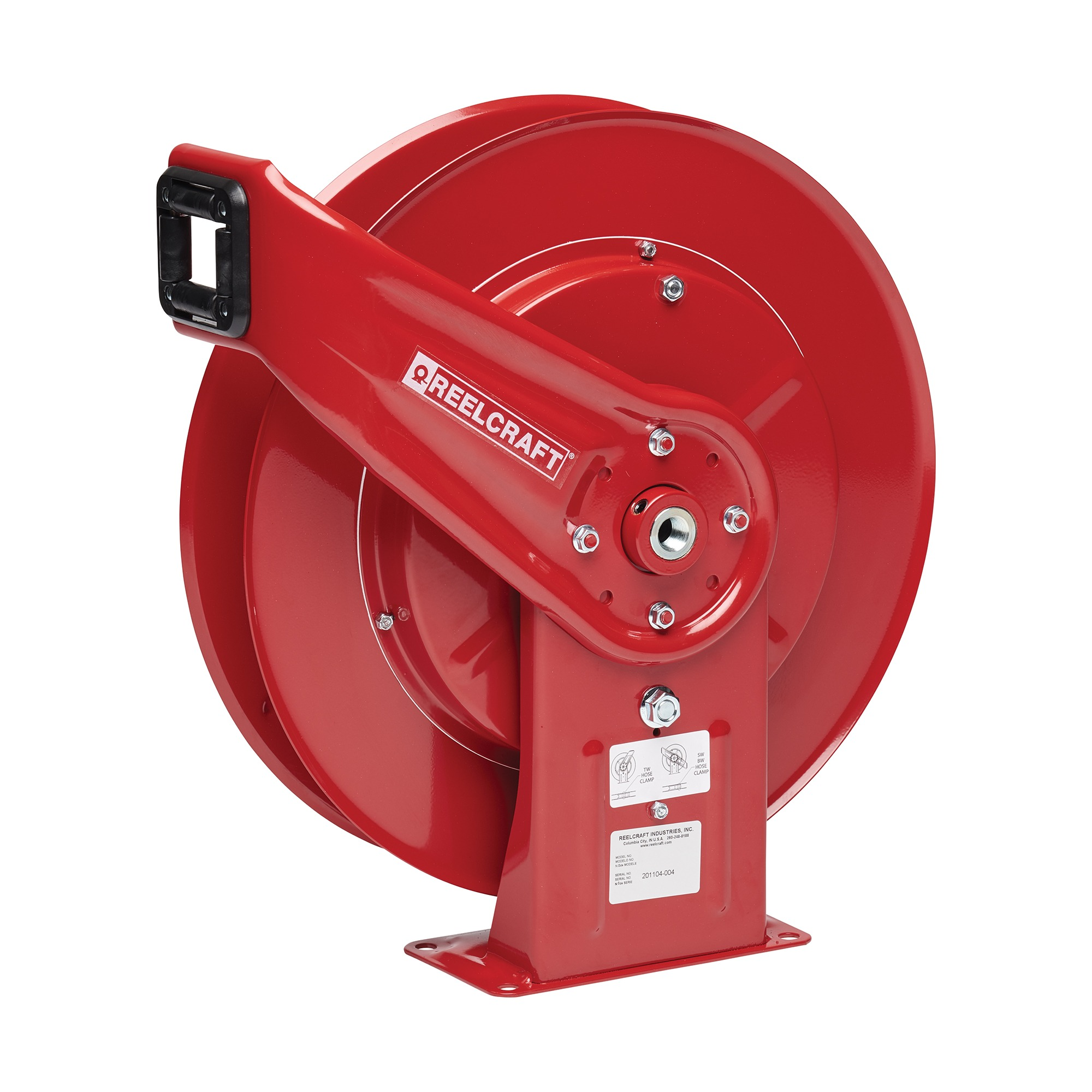

REELCRAFT 7600 OLP Hose Reel, Inner Diameter 3/8 Inch, 500 Psi, Hose Length 50 Feet
Get it by Tuesday, Sep 1
Payment
Delivery
Product Specifications:
| Item | Hose Reel |
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Corrosion Resistant | Yes |
| Dimensions A | 20 1/4" |
| Dimensions B | 19.75" |
| Dimensions C | 7 13/16" |
| Dimensions D | 3.875" |
| Dimensions E | 7" |
| Drive Type | Spring Driven |
| Enclosed | No |
| Fasteners Included | No |
| Features | Full Flow Swivel Design, Heavy Duty |
| For Dual Hose | No |
| Height | 20 1/4" |
| Hose | No |
| Hose Capacity | 50 ft. |
| Hose Included | No |
| Hose Inside Dia. | 3/8" |
| Hose Length | 50 ft. , 70 ft. |
| Hose Reel Primary Application | Air, Water |
| Hose Reel Type | Free Standing Hose Reel, Vehicle, Wall Mount Hose Reel |
| Included Hose | No |
| Included Leader Hose | No |
| Inlet Size | 1/2" |
| Inlet Type | FNPT |
| Latch Type | Spring Loaded |
| Length | 19 3/4" |
| Max. Operating Pressure | 500 psi |
| Max. Operating Temp. | 150°F |
| Max. Pressure | 500 psi |
| Max. Temp. | 150°F |
| Min. Operating Temp. | 32°F |
| Mount Base Height | 9" |
| Mount Base Width | 6 3/4" |
| Mount Hole Dia. | 1/2" |
| Mounting | Ceiling, Floor, Wall |
| Mounting Hole Center To Center Height | 7 7/8" |
| Mounting Hole Center To Center Width | 3 7/8" |
| No. Of Guide Arms | 1 |
| No. Of Mount Holes | 4 |
| Overall Height | 20 1/4" |
| Overall Length | 19 3/4" |
| Overall Width | 7" |
| Pedestal Type | Single Pedestal |
| Pressure | 500 psi |
| Product Datasheet | reelcraft-7450ohp.pdf |
| Reel Color | Red |
| Reel Dia. | 9" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Outlet Size | 1/2" |
| Reel Outlet Type | FNPT |
| Reel Width | 7" |
| Series | 7000 Series |
| Speed Limited Retraction | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1/2" |
| Swivel Inlet Thread Size | 1/2"-14 |
| Swivel Inlet Type | NPT |
| Swivel Material | Steel |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 1/2" |
| Swivel Outlet Thread Size | 1/2"-14 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| Width | 7" |
Shipping Info:
| Ship weight (kg) | 18 |
| Ship height (cm) | 64.77 |
| Ship length (cm) | 59.37 |
| Ship width (cm) | 23.81 |
| Country of Origin | US |
Product Details:
,The Reelcraft Series 7000 spring retractable hose reel is very robust and ideal for the most demanding applications. The base and guide arm are constructed from high-grade steel and engineered with structural forms and gussets to yield the greatest amount of strength., , ,Individually powder-coated steel components offer maximum protection from premature corrosion, ,Inlet hose is plumbed into the base to eliminate the risk of stress on the swivel, ,Guide arm adjusts to seven positions, ,Base plate, upright, and guide arm are constructed from 11 gauge steel; the spool is 16 gauge steel, ,Additional Series 7000 reel models include stainless steel, controlled return, enclosed, twin hydraulic, fuel delivery, pressure wash, and gas/cable welding, ,Made in the USA, , ,*Reel is shipped in the top wind position. The reel image is shown in the side wind position.,
Documentation:
Product Variants
| Product | Model | Hose Inside Dia. | Swivel Material | Max. Pressure | Overall Height | Overall Width | Housing Material | Max. Temp. | Hose | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
UR7850OLB | 1/2" | Stainless Steel | 300 psi | 20 1/4" | 7" | Steel | 150°F | - | €1,833.73 | |
 |
UR7925OLB | 3/4" | Stainless Steel | 300 psi | 20 1/4" | 7" | Steel | 150°F | - | €1,991.48 | |
|
PW7600OHP | 3/8" | Nickel Plated Steel | 4500 psi | 20 1/4" | 7" | Steel | 400°F | - | €1,023.17 | |
|
F7925OLP | 3/4" | Nickel Plated Steel | 250 psi | 20 1/4" | 7" | - | 150°F | - | €1,090.09 | |
 |
7650OLP | 3/8" | Nickel Plated Steel | 300 psi | 20 1/4" | 7" | - | 150°F | - | €810.03 | |
|
7850OLP | 1/2" | Nickel Plated Steel | 300 psi | 20 1/4" | 7" | - | 150°F | - | €875.74 | |
 |
7600OHP | 3/8" | Nickel Plated Steel | 5000 psi | 20 1/4" | 7" | - | 210°F | - | €1,171.66 |
