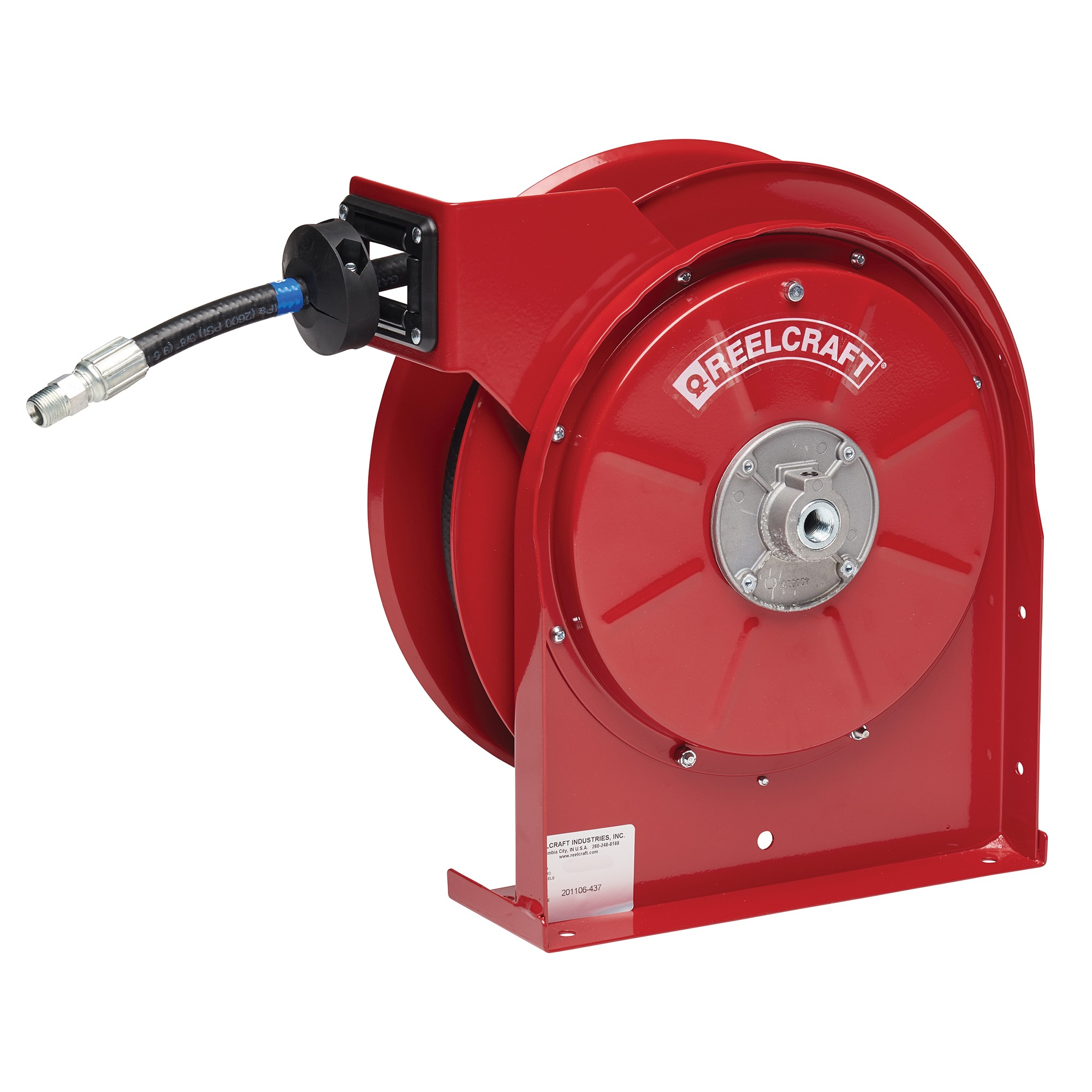

REELCRAFT 5630 OMP Hose Reel, Inner Diameter 3/8 Inch, 2600 Psi, Hose Length 30 Feet
30 ft.
3/8"
2600 psi
Get it by Friday, Jul 3
5.00% off
€906.21 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hose Reel |
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Corrosion Resistant | Yes |
| Dimensions A | 14 3/8" |
| Dimensions B | 14.25" |
| Dimensions C | 9 3/4" |
| Dimensions D | 2.5" |
| Dimensions E | 6 1/8" |
| Drive Type | Spring Return |
| Enclosed | No |
| Fasteners Included | No |
| Features | Premium Duty Hose Reel |
| Fitting Gender | Male x Male |
| Fitting Size | 3/8" x 3/8" |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Height | 14 3/8" |
| Hose | Yes |
| Hose Capacity | 30 ft. |
| Hose Color | Black |
| Hose Cover Material | Synthetic Rubber |
| Hose End Configuration | 3/8" MNPT |
| Hose End Size | 3/8" |
| Hose End Type | MNPT |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Steel |
| Hose Fitting A Size | 3/8" |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Steel |
| Hose Fitting B Size | 3/8" |
| Hose Fitting B Type | NPT |
| Hose Included | Yes |
| Hose Inside Dia. | 3/8" |
| Hose Length | 30 ft. |
| Hose Outside Dia. | 0.69" , 11/16" |
| Hose Reel Primary Application | Oil |
| Hose Reel Type | Ceiling, Floor, Vehicle, Wall Mount Hose Reel |
| Hose Tube Material | Synthetic Rubber |
| Included | Hose, Bumper |
| Included Hose | Yes |
| Included Hose Stop | Yes |
| Included Leader Hose | No |
| Inlet Size | 3/8" |
| Inlet Type | FNPT |
| Latch Type | Spring Loaded |
| Length | 14 1/4" |
| Max. Operating Pressure | 2600 psi |
| Max. Operating Temp. | 210°F |
| Max. Pressure | 2750 psi |
| Max. Temp. | 210°F |
| Min. Operating Temp. | 32°F |
| Mount Base Height | 11 19/32" |
| Mount Base Width | 4" |
| Mount Hole Dia. | 5/16" |
| Mounting | Ceiling, Floor, Wall |
| Mounting Hole Center To Center Height | 9 3/4" |
| Mounting Hole Center To Center Width | 2 1/2" |
| No. Of Guide Arms | 1 |
| No. Of Mount Holes | 4 |
| Overall Height | 14 3/8" |
| Overall Length | 14 1/4" |
| Overall Width | 6 1/8" |
| Pedestal Type | Single Pedestal |
| Pressure | 2600 psi |
| Product Datasheet | reelcraft-5400olp.pdf |
| Reel Color | Red |
| Reel Dia. | 7" |
| Reel Finish | Powder Coated |
| Reel Material | Carbon Steel |
| Reel Outlet Size | 3/8" |
| Reel Outlet Type | FNPT |
| Reel Width | 6 1/8" |
| Series | 5000 Series |
| Speed Limited Retraction | No |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 3/8" |
| Swivel Inlet Thread Size | 3/8"-18 |
| Swivel Inlet Type | NPT |
| Swivel Material | Steel |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 3/8" |
| Swivel Outlet Thread Size | 3/8"-18 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| Width | 6 1/8" |
Shipping Info:
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 38.74 |
| Ship length (cm) | 36.51 |
| Ship width (cm) | 15.24 |
| Country of Origin | US |
Product Details:
,Reelcraft’s Series 5000 hose reels are durable and compact for a wide range of applications with critical space requirements., , ,Hose is plumbed into the base to eliminate the risk of undue stress on the swivel, ,The bent tube swivel design offers a smooth hose transition onto the spool, ,Swivel is nested inside the spool for protection from impact and the environment, ,The reliable speed latch allows for positive locking of the spool in two positions per rotation, ,All steel components are powder coated for maximum corrosion resistance, ,Robotically welded steel base offers maximum strength and consistent quality, ,Made in the USA, , ,*Reel is shipped in the top wind position. The reel image is shown in the side wind position.,
Documentation:
Product Variants
| Product | Model | Mounting | Swivel Material | Hose Included | Hose Capacity | Max. Operating Pressure | Reel Material | Fitting Size | Max. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A5835OMP | Ceiling, Truck, Floor, Wall | Nickel Plated Steel | - | 35 ft. | 3000 psi | Carbon Steel | 1/2" x 1/2" | 210°F | €1,226.95 | |
 |
5400OLP | Ceiling, Floor, Wall | Brass | - | 50 ft. | 500 psi | Steel | - | 150°F | €612.66 | |
 |
5450ELP | Ceiling, Floor, Wall | Brass | - | 25 ft. | 300 psi | Carbon Steel | 1/4" x 1/4" | 150°F | €765.24 | |
 |
5635OLPSW5 | Ceiling, Floor, Wall | Brass | - | 35 ft. | 125 psi | Carbon Steel | 3/8" x 3/8" | 210°F | €956.99 | |
 |
A5825 OLP | Ceiling, Floor, Wall | Steel | Yes | - | - | - | - | 150°F | €646.96 | |
|
5635 OLP | Ceiling, Floor, Wall | Brass | Yes | 35 ft. | 300 psi | Carbon Steel | 1/4" x 1/4" | 150°F | €607.11 | |
|
5450 OLP | Ceiling, Floor, Wall | Brass | Yes | 50 ft. | 300 psi | Carbon Steel | 1/4" x 1/4" | 150°F | €608.72 |
