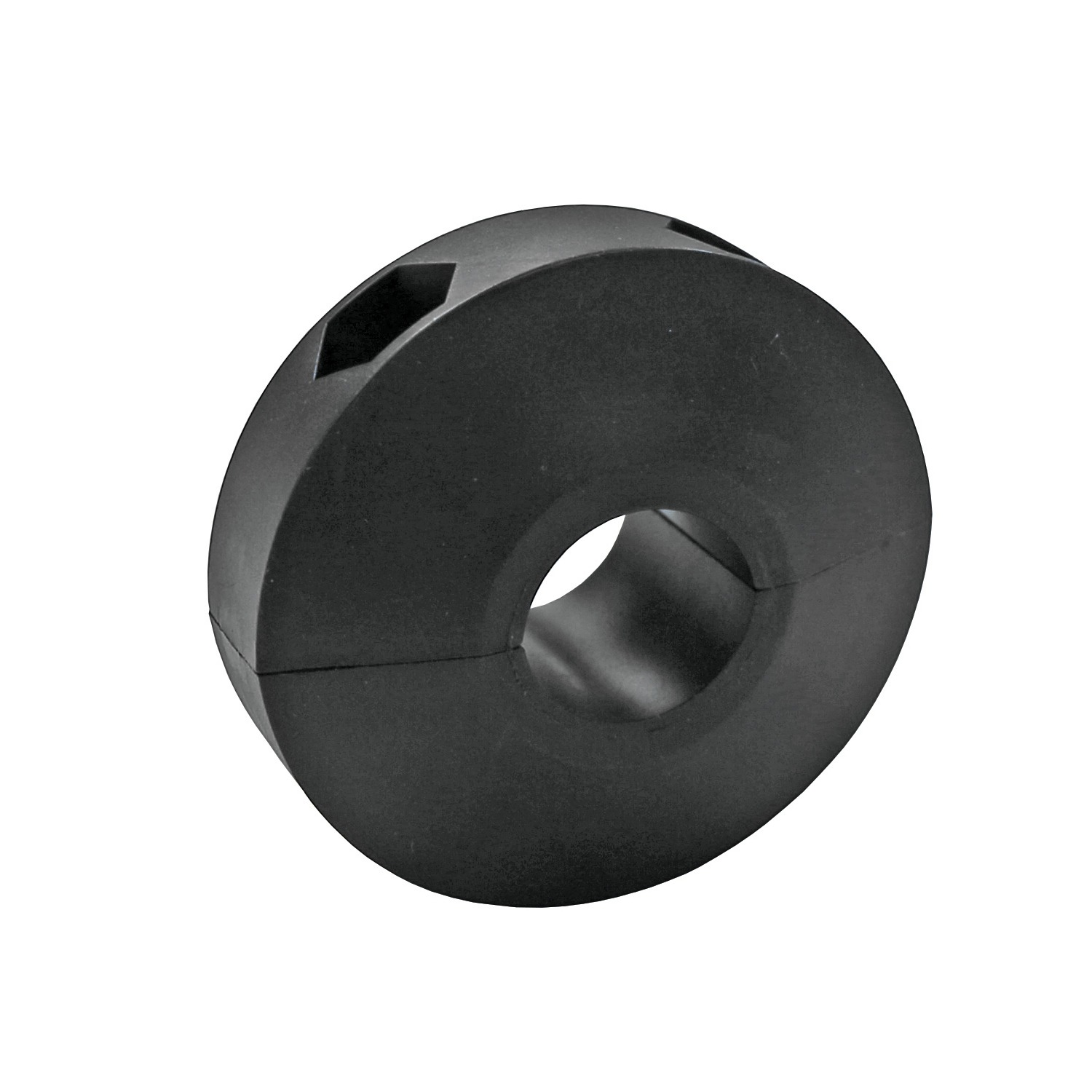

REELCRAFT 3-HS1004-3 Adjustable Bumper Stop, Inner Diameter 1.06 Inch - 1.38 Inch, Stainless Steel
Item: BT6RPLModel: 3-HS1004-3Cross Ref: 69AH56
7 In Stock
Ships within 2 days via
5.00% off
€39.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hose Reel Bumper |
| Dia. | 1.06" to 1.38" |
| Dia. A | 1.06" to 1.38" |
| Dia. B-c-e | 3" |
| Dia. D | 1 1/4" |
| For Cord Outside Dia. Range | 1.06" to 1.38" |
| For Gauge/conductor | 6/4 |
| For Hose Dia. | 3/4" |
| For Hose Outside Dia. | 1.06" to 1.38" |
| For No. Of Hoses | 1 |
| For Reel Series | 7000 Series, HD70000 Series, 80000 Series, DGM Series |
| For Use | 7000, HD70000, 80000 and DGM |
| For Use With Grainger Item Number | 12U317, 2CAH8, 4NA87, 4NB21, 5PG07, 5PG09, 6Z786, 9HWE3 |
| For Use With Mfr. Model Number | 7900 OLP1, 7925 OLP1, D83000 OLS1, D83075 OLP1, F7925 OLP1, FD83000 OLP1, FD83075 OLP1, UR7925 OLB 1 |
| Hose Inside Dia. | 3/4" |
| Hose Stop Overall Outside Dia. | 3" |
| Hose Stop Overall Width | 1 1/4" |
| Included | Hardware |
| Material | Plastic |
| Shape | Circle |
| Width D | 1 1/4" |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 3.18 |
| Country of Origin | CN |
Product Details:
,Adjustable bumpers are solid molded rubber assuring long life and nonslip grip. Bumpers allow the desired length of hose or cord to be permanently stored outside the reel. Bumpers are included on the reels purchased with hose or cord. When ordering, advise the part number, reel model and the hose I.D. and O.D or the cord AWG and number of conductors. ,*This bumper includes stainless steel hardware.*,
Product Variants
| Product | Model | Width D | Hose Inside Dia. | Hose Stop Overall Outside Dia. | Hose Stop Overall Width | For Hose Dia. | For Hose Outside Dia. | For Cord Outside Dia. Range | Dia. B-c-e | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1-HR1004-A | - | - | 2 1/2" | 1 1/4" | 1/4" | 0.438" to 5/8" | 0.438" to 0.625" | - | €30.89 | |
 |
2-HR1004-3 | 1 1/4" | - | - | - | - | - | - | - | €32.02 | |
 |
8HR10043 | - | - | 3" | 1 1/4" | 1/4" | 0.53" Twin | 0.53" Twin | - | €33.29 | |
 |
S600547-1 | 2 7/8" | 1 1/4" | 3 3/4" | 2 7/8" | 1 1/4" | 1.55" to 1 3/4" | 1.55" to 1.75" | 3 3/4" | €224.33 | |
|
S600547-2 | 2 7/8" | 1 1/2" | 3 3/4" | 2 7/8" | 1 1/2" | 1 3/4" to 2.03" | 1.75" to 2.03" | 3 3/4" | €224.82 | |
 |
3-HS1005 | 2 7/8" | 3/4" | 3 1/2" | 2 7/8" | 3/4" | 1.06" to 1.38" | 1.06" to 1.38" | 3 1/2" | €81.41 | |
 |
4HR1005 | 2 7/8" | 1" | 3 1/2" | 2 7/8" | 1" | 1.39" to 1.55" | 1.39" to 1.55" | 3 1/2" | - | RFQ
|
