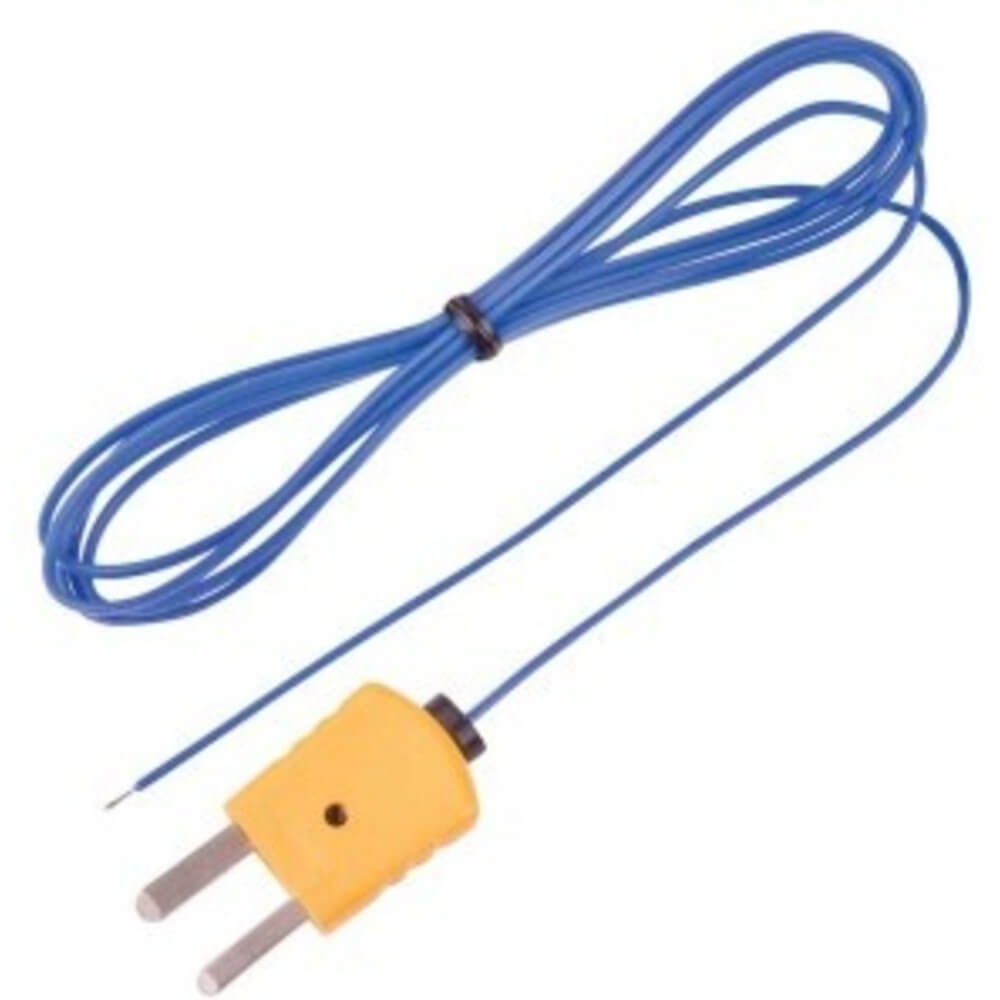

REED INSTRUMENTS TP-01 Thermocouple Wire Probe K Mini Plastic
Item: AH6WGKModel: TP-01Cross Ref: 36JH35
7 In Stock
Ships within 2 days via
5.00% off
€25.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thermocouple Wire Probe |
| Accuracy | ±3.96°F At -40°F to 482°F |
| Cable Length | 38" |
| Compatible With | Type-K Temperature Measuring Instruments |
| Connection Type | Mini |
| Connector Type | Mini Plug |
| Contact Material | Stainless Steel |
| For Air | No |
| For Application | Surface |
| For Gases | No |
| For Liquids And Gels | Yes |
| For Solids | Yes |
| For Surfaces | Yes |
| Head Material | Stainless Steel |
| Length | 1/2" |
| Max. Temp. | 250°C , 482°F |
| Measurement | -40°F to +482°F |
| Measurement Range | -40 to 482 Deg. F |
| Min. Temp. | -40°C , -40°F |
| Primary Measuring Element | Thermocouple |
| Probe Dia. | 0.125" , 1/8" |
| Probe Length | 0.5" |
| Probe Material | Plastic , Stainless Steel |
| Probe Sheath Material | PTFE Coated |
| Probe Size | 1/8" x 1/2" |
| Probe Temp. Measuring Element | K Thermocouple |
| Probe Tip Dia. | 2 mm |
| Probe Wire Length | 3 ft. |
| Process Connection | Probe |
| Product Type | Thermocouple Wire Probe |
| Response Time | 2 sec. |
| Sensor Type | Thermocouple |
| Temp. | -40° to +250° , -40°F to +482°F |
| Temp. Measuring Element | K Thermocouple |
| Thermocouple Type | Type K |
| Type | Temperature Probe |
| Use | Digital Thermometer Or Multimeter |
| Wire Length | 38" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 10.92 |
| Ship width (cm) | 5.08 |
| Country of Origin | TW |
Product Variants
| Product | Model | Max. Temp. | Probe Dia. | Probe Material | Thermocouple Type | Connector Type | Probe Size | For Application | For Air | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
TP-01-NIST | - | - | - | - | - | - | - | - | €188.76 |
