REED INSTRUMENTS R5002 Insulation Tester, Digital, High Voltage, Upto 5kV
Get it by Wednesday, Dec 17
€711.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Insulation Tester |
| Ac/dc Voltage Accuracy | -1% to +1% |
| Ac/dc Voltage Range | 0-600V |
| Analog Bargraph | Yes |
| Auto Power Off | Yes After 20 min. |
| Backlit Display | Yes |
| Continuity Buzzer | Yes |
| Dimensions | 7 4/5" x 5 4/5" x 3 2/5" |
| Display Type | LCD |
| Fuse Protection | Yes |
| Insulation Resistance Accuracy | -2.5% to +2.5% |
| Insulation Resistance Ranges | 0 M ohms to 6 M ohms, 0 M ohms to 60 M ohms, 0 M ohms to 600 M ohms, 0 G ohms to 6 G ohms, 0 G ohms to 60 G ohms |
| Low Battery Indicator | Yes |
| Max./min., Peak, Relative And Data Hold Functions | Yes |
| No. Of Batteries Required | 8 |
| Operating Temp. | 32°F to 104°F |
| Overvoltage Category | Cat. IV 600V |
| Power Source | _C Batteries, Ac Adapter |
| Range Selection | Autoranging, Manual |
| Resistance Accuracy | -1.5% to +1.5% |
| Resistance Range | 0 ohms to 600 ohms |
| Sampling Rate | 2.5 times/sec. |
| Storage Temp. | -4°F to +140°F |
| Test Voltage Accuracy | -2.5% to +2.5% |
| Test Voltage Ranges | 500/1000/2500/5000V |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Auto Power Off | Voltage | Price | |
|---|---|---|---|---|---|
 |

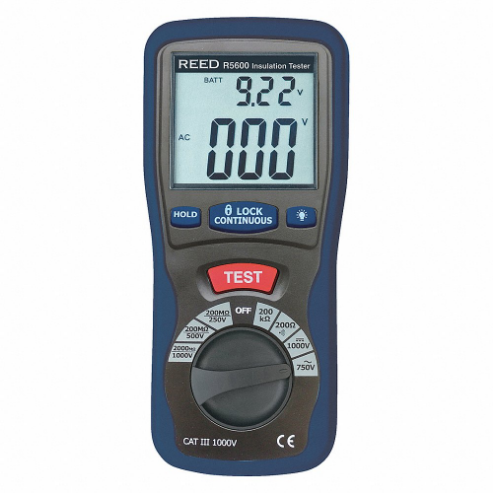

R5600 | Yes After 15 min. | 500V | €369.60 |
