RED HAT EV8314G30124/DCDD Solenoid Valve 3-way 1/4 Inch Universal 24v
Item: AB7ZQNModel: EV8314G30124/DCDDCross Ref: 24W645
7 In Stock
Ships within 2 days via
10.00% off
€619.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Body Material | Stainless Steel |
| Class | Class F |
| Coefficient Of Volume | 0.08 |
| Coefficient Of Volume (cv) | 0.08 |
| Coil Enclosure | Explosion Proof And Watertight |
| Coil Insulation Class | F |
| Electrical Connections | 1/2" Conduit W/18" Leads |
| For Media | Air, Inert Gases |
| Grade | Grade 316 |
| Includes Coil | Yes |
| Includes Seal | Yes |
| Inlet Connection Type | NPTF |
| Max. Fluid Temp. | 140°F |
| Max. Fluid Temperature | 140°F |
| Max. Operating Pressure Differential - Air/inert Gas | 150 psi |
| Max. Operating Pressure Differential - Light Oil | Not Rated |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential - Water | Not Rated |
| Max. Operating Pressure Differential Air/inert Gas | 150 psi |
| Max. Operating Pressure Differential Light Oil | Not Rated |
| Max. Operating Pressure Differential Water | Not Rated |
| Media Type | Air, Inert Gas |
| Min. Operating Pressure Differential | 0 psi |
| Nema Rating | NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 7, NEMA 9 |
| Nominal Pipe Size | 1/4" |
| Operating Environment | Hazardous, Indoor, Outdoor |
| Operation | Direct Acting |
| Operation Type | Direct Acting |
| Orifice Diameter | 1/16" |
| Outlet Connection Type | NPTF |
| Overall Height | 3 13/16" |
| Overall Length | 1 5/16" |
| Overall Width | 1 5/16" |
| Pipe Size | 1/4" |
| Seal Material | Nbr |
| Valve Configuration | Configurable |
| Valve Positions | 2 Position |
| Valve Type | Moderate Flow |
| Valve Ways | 3-Way |
| Valve Ways And Positions | 3 Ways And 2 Positions |
| Voltage | 24V DC |
| Wattage | 1.4 W |
Shipping Info:
| Ship weight (kg) | 0.88 |
| Ship height (cm) | 11.94 |
| Ship length (cm) | 7.87 |
| Ship width (cm) | 11.94 |
| HS code | 8481809005 |
| Country of Origin | US |
Product Variants
| Product | Model | Valve Configuration | Pipe Size | Voltage | Seal Material | Max. Operating Pressure Differential Air/inert Gas | Max. Operating Pressure Differential Water | Max. Operating Pressure Differential Light Oil | Max. Fluid Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EV8327G04224/DCDD | Configurable | 1/4" | 24V DC | FKM | 150 psi | 150 psi | 150 psi | 248°F | €1,170.90 | |
 |

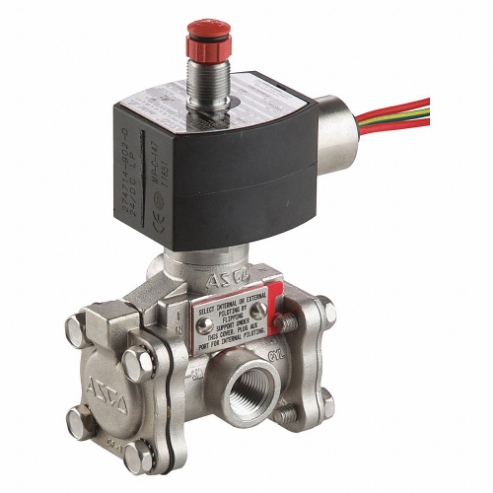

EV8316G382V24/DCDD | Normally Closed | 3/8" | 24V DC | Nbr | 130 psi | Not Rated | Not Rated | 130°F | €1,695.20 | |
|
EV8327G042120/50-60DA | Configurable | 1/4" | 120V AC | FKM | 150 psi | 150 psi | 150 psi | 248°F | €1,557.31 | |
 |
EV8316G381V24/DCDD | Normally Closed | 1/4" | 24V DC | FKM | 130 psi | Not Rated | Not Rated | 130°F | €1,490.10 | |
|
EV8316G384V24/DCDD | Normally Closed | 1/2" | 24V DC | FKM | 130 psi | Not Rated | Not Rated | 130°F | €1,658.46 |
