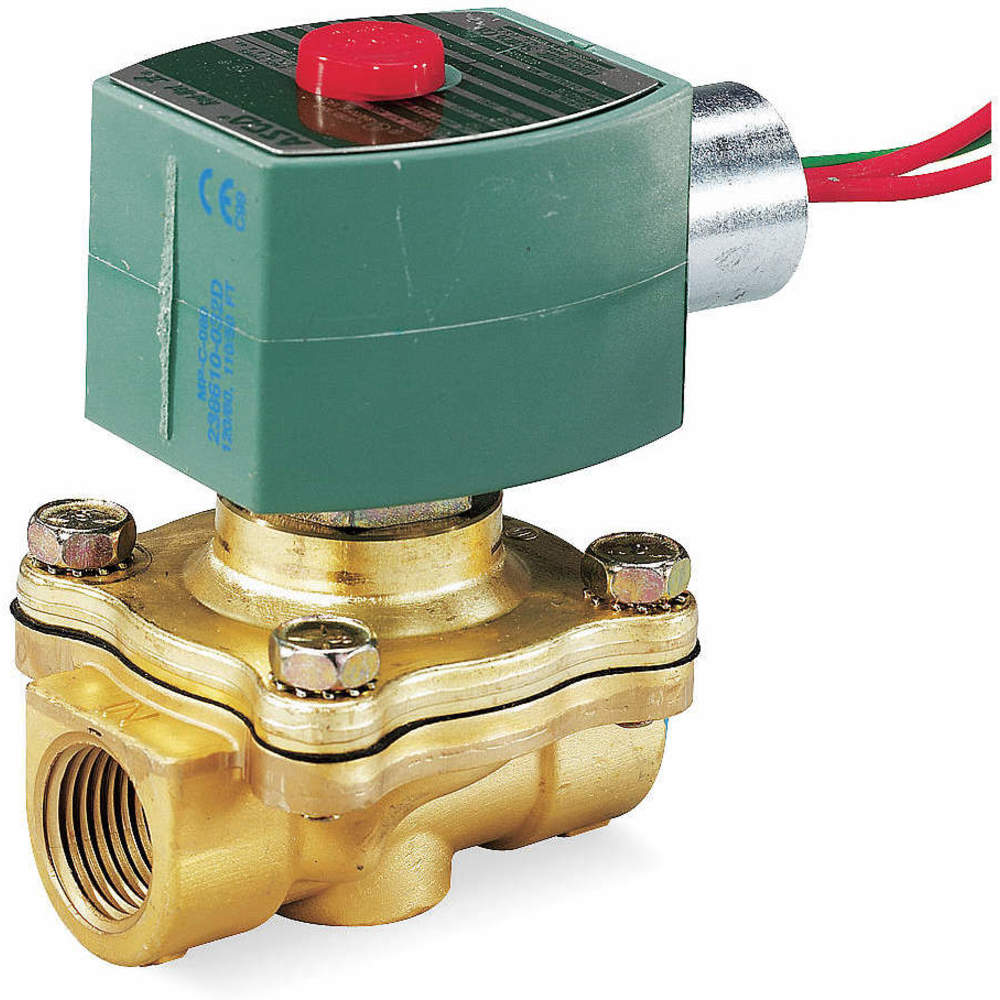

RED HAT 8210G094 Solenoid Valve 2/2 1/2 Inch Nc 240/220v
Item: AD7HHRModel: 8210G094Cross Ref: 4EKT5
7 In Stock
Ships within 2 days via
10.00% off
€257.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Application | Air Compressors, Car Wash Equipment, Industrial Water Control, Laundry Equipment, Pumps |
| Body Material | Brass |
| Center Line Pipe Center Size | 3.312" |
| Class | Class F |
| Coefficient Of Volume | 4 |
| Coil Enclosure | Watertight |
| Coil Insulation Class | F |
| Electrical Connections | 1/2" Conduit Hub |
| For Media | Air, Inert Gases, Light Oil, Water |
| Frequency | 50/60 Hz |
| Hz | 50/60 Hz |
| Includes Coil | Yes |
| Includes Seal | Yes |
| Inlet Connection Type | NPTF |
| Ip Rating | IP66 |
| Max. Ambient Temperature | 140°F |
| Max. Fluid Temp. | 180°F |
| Max. Fluid Temperature | 180°F |
| Max. Operating Pressure Differential - Air/inert Gas | 150 psi |
| Max. Operating Pressure Differential - Light Oil | Not Rated |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential - Water | 150 psi |
| Max. Operating Pressure Differential Air/inert Gas | 150 psi |
| Max. Operating Pressure Differential Light Oil | 150 psi |
| Max. Operating Pressure Differential Water | 150 psi |
| Media Type | Air, Inert Gas, Water |
| Min. Ambient Temperature | 14°F |
| Min. Operating Pressure Differential | 0 psi |
| Mounting Orientation | Vertical |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X |
| Nominal Pipe Size | 1/2" |
| Operating Environment | Indoor, Outdoor |
| Operation | Pilot Operated |
| Operation Type | Pilot Operated |
| Orifice Diameter | 5/8" |
| Outlet Connection Type | NPTF |
| Overall Height | 3 15/16" |
| Overall Length | 3" |
| Overall Width | 2 5/16" |
| Pipe Size | 1/2" |
| Response Time | 1 sec. |
| Seal Material | Nbr |
| Valve Configuration | Normally Closed |
| Valve Positions | 2 Position |
| Valve Type | High Flow |
| Valve Ways | 2-Way |
| Valve Ways And Positions | 2 Ways And 2 Positions |
| Voltage | 220/240V AC |
| Wattage | 10.1 W |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 14.48 |
| Ship length (cm) | 11.68 |
| Ship width (cm) | 8.89 |
| HS code | 8481809005 |
| Country of Origin | MX |
