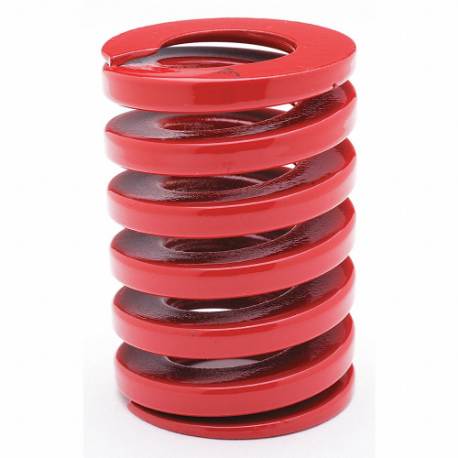

ASSOCIATED SPRING RAYMOND ASM030200 Compression Spring, 27.6 N/Mm Stiffness Rate, 405 lbs Load Capacity, Chrome Silicone
Item: CT8TAJModel: ASM030200Cross Ref: 54KF71
7 In Stock
Ships within 2 days via
10.00% off
€54.98 /unit
This product can only be shipped in multiples of 7Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Die Spring |
| Color | Red |
| Die Spring Color | Red |
| End Type | Closed, Grounded |
| Finish | Chromium |
| Free Length | 7 7/8" |
| Inner Dia. | 0.591" |
| Load Capacity | 405 lbs. |
| Material | Alloy Steel |
| Max. Deflection | 2.52" |
| Operating Temp. Range | Not Rated |
| Outer Dia. | 1.181" |
| Outside Diameter | 1.18" |
| Product Type | Die Spring |
| Series | JIS Series |
| Solid Length | 5.354" |
| Spring Rate | 27.6 N/mm |
| Spring Rate (stiffness) | 157.6 lbs./in. |
| Spring Shape | Cylindrical |
| System Of Measurement | Imperial |
| Type | Medium Duty |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 20 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Material | Free Length | Solid Length | Outer Dia. | Inner Dia. | Spring Rate (stiffness) | Load Capacity | Finish | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ASM008010 | Alloy Steel | 25/64" | 0.264" | 0.315" | 0.157" | 243.25 lbs./in. | 31 lbs. | Chromium | 10 | €54.12 | |
| ASM035100 | Alloy Steel | 3 15/16" | 2.677" | 1.378" | 0.689" | 428.26 lbs./in. | 551 lbs. | Chromium | 1 | €45.50 | |
| ASM040100 | Alloy Steel | 3 15/16" | 2.677" | 1.575" | 0.787" | 560.17 lbs./in. | 720 lbs. | Chromium | 1 | €58.34 | |
| ASM050100 | Alloy Steel | 3 15/16" | 2.677" | 1.969" | 0.984" | 874.8 lbs./in. | 1124 lbs. | Chromium | 1 | €85.34 | |
| ASM060100 | Alloy Steel | 3 15/16" | 2.677" | 2.362" | 1.181" | 1260.23 lbs./in. | 1615 lbs. | Chromium | 1 | €116.66 | |
| ASM020100 | Chrome Silicone | 3.937" | 2.677" | 0.787" | 0.394" | 139.9 lbs./in. | 180 lbs. | Painted | 5 | €134.90 | |
| ASM025100 | Alloy Steel | 3 15/16" | 2.677" | 0.984" | 0.492" | 218.13 lbs./in. | 281 lbs. | Chromium | 5 | €134.90 |
