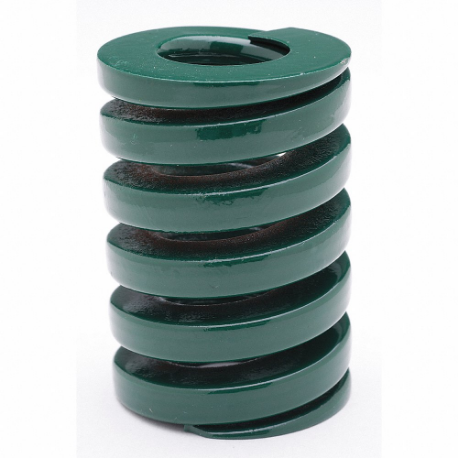

ASSOCIATED SPRING RAYMOND ASH010065 Compression Spring, 18.8 N/Mm Stiffness Rate, 66 lbf Load Capacity, Chrome Silicone
Item: CT8TNTModel: ASH010065Cross Ref: 54JZ06
7 In Stock
Ships within 2 days via
10.00% off
€112.17 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Die Spring |
| Color | Green |
| End Type | Closed, Grounded |
| Finish | Painted |
| Free Length | 2.559" |
| Inner Dia. | 0.197" |
| Load At Max. Deflection For Long Life | 61 lbf. |
| Load At Max. Deflection For Optimal Life | 52 lbf. |
| Load Capacity | Not Rated |
| Material | Chrome Silicone |
| Max. Deflection | 0.61" |
| Max. Deflection For Long Life | 0.563" |
| Max. Deflection For Optimal Life | 0.486" |
| Max. Operating Deflection | 0.614" |
| Operating Temp. Range | Not Rated |
| Outer Dia. | 0.394" |
| Solid Length | 1.949" |
| Spring Rate (stiffness) | 107.35 lbs./in. |
| Type | Heavy Duty |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 6.5 |
| Ship width (cm) | 2.79 |
| Country of Origin | US |
Product Variants
| Model | Material | Free Length | Solid Length | Outer Dia. | Inner Dia. | Spring Rate (stiffness) | Load Capacity | Finish | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ASH008010 | Alloy Steel, Sillicon Wire | 25/64" | 0.294" | 0.315" | 0.157" | 492.79 lbs./in. | Not Rated | Chromium | 10 | €59.66 | |
| ASH040100 | Alloy Steel, Sillicon Wire | 3 15/16" | 2.987" | 1.575" | 0.787" | 1119.76 lbs./in. | Not Rated | Chromium | 1 | €65.50 | |
| ASH050100 | Alloy Steel, Sillicon Wire | 3 15/16" | 2.987" | 1.969" | 0.984" | 1750.16 lbs./in. | Not Rated | Chromium | 1 | €98.35 | |
| ASH060100 | Chrome Silicone | 3.937" | 2.987" | 2.362" | 1.181" | 2519.89 lbs./in. | Not Rated | Painted | 1 | €135.33 | |
| ASH025100 | Alloy Steel, Sillicon Wire | 3 15/16" | 2.987" | 0.984" | 0.492" | 436.26 lbs./in. | Not Rated | Chromium | 5 | €141.41 | |
| ASH030100 | Alloy Steel, Sillicon Wire | 3 15/16" | 2.987" | 1.181" | 0.591" | 629.83 lbs./in. | Not Rated | Chromium | 2 | €78.96 | |
| ASH018100 | Alloy Steel, Sillicon Wire | 3 15/16" | 2.987" | 0.709" | 0.354" | 226.12 lbs./in. | Not Rated | Chromium | 5 | €141.41 |
