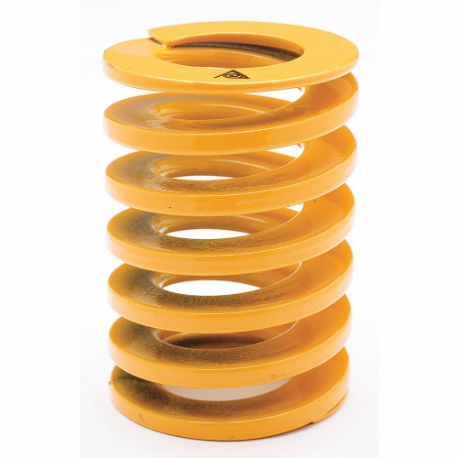

ASSOCIATED SPRING RAYMOND ASF020070 Die Spring, Extra Light Duty, Oil Tempered Chrome Silicone, 70 mm Overall Lg, Yellow, 8.9 N/mm Spring Rate
Item: CT8RMDModel: ASF020070Cross Ref: 54JX54
7 In Stock
8.9 N/mm
Ships within 2 days via
5.00% off
€90.76 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Die Spring |
| Color | Yellow |
| Die Spring Color | Yellow |
| End Type | Closed, Grounded |
| Finish | Chromium |
| Free Length | 2 3/4" |
| Inside Dia. | 0.433" |
| Load @ Max. Deflection For Long Life | 64 lbf. |
| Load @ Max. Deflection For Optimal Life | 57 lbf. |
| Load Capacity | Not Rated |
| Material | Alloy Steel, Sillicon Wire |
| Max. Deflection | 1.38" |
| Max. Deflection For Long Life | 1.24" |
| Max. Deflection For Optimal Life | 1.102" |
| Max. Operating Deflection | 1.378" |
| Operating Temp. | Not Rated |
| Outside Dia. | 0.787" , 0.79" |
| Product Type | Die Spring |
| Series | JIS Series |
| Solid Length | 1.376" |
| Spring Rate | 52 lbs.-in. |
| Spring Rate (stiffness) | 52 lbs./in. |
| Spring Shape | Cylindrical |
| System Of Measurement | Imperial |
| Type | Extra Light Duty |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 7 |
| Ship width (cm) | 2.79 |
| Country of Origin | US |
Product Variants
| Model | Material | Free Length | Solid Length | Outer Dia. | Inner Dia. | Spring Rate (stiffness) | Load Capacity | Finish | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ASF008010 | Alloy Steel, Sillicon Wire | 25/64" | 0.194" | - | - | 87.37 lbs./in. | Not Rated | Chromium | 10 | €72.71 | |
| ASF030100 | Alloy Steel, Sillicon Wire | 3 15/16" | 1.967" | - | - | 80.51 lbs./in. | Not Rated | Chromium | 5 | €121.64 | |
| ASF035100 | Alloy Steel, Sillicon Wire | 3 15/16" | 1.967" | - | - | 109.64 lbs./in. | Not Rated | Chromium | 5 | €146.13 | |
| ASF025100 | Alloy Steel, Sillicon Wire | 3 15/16" | 1.967" | - | - | 56 lbs./in. | Not Rated | Chromium | 5 | €121.64 | |
| ASF020100 | Alloy Steel, Sillicon Wire | 3 15/16" | 1.967" | - | - | 35.97 lbs./in. | Not Rated | Chromium | 5 | €120.72 | |
| ASF027100 | Alloy Steel, Sillicon Wire | 3 15/16" | 1.967" | - | - | 67.38 lbs./in. | Not Rated | Chromium | 5 | €112.75 | |
| ASF022100 | Alloy Steel, Sillicon Wire | 3 15/16" | 1.967" | - | - | 44.54 lbs./in. | Not Rated | Chromium | 5 | €120.74 |
