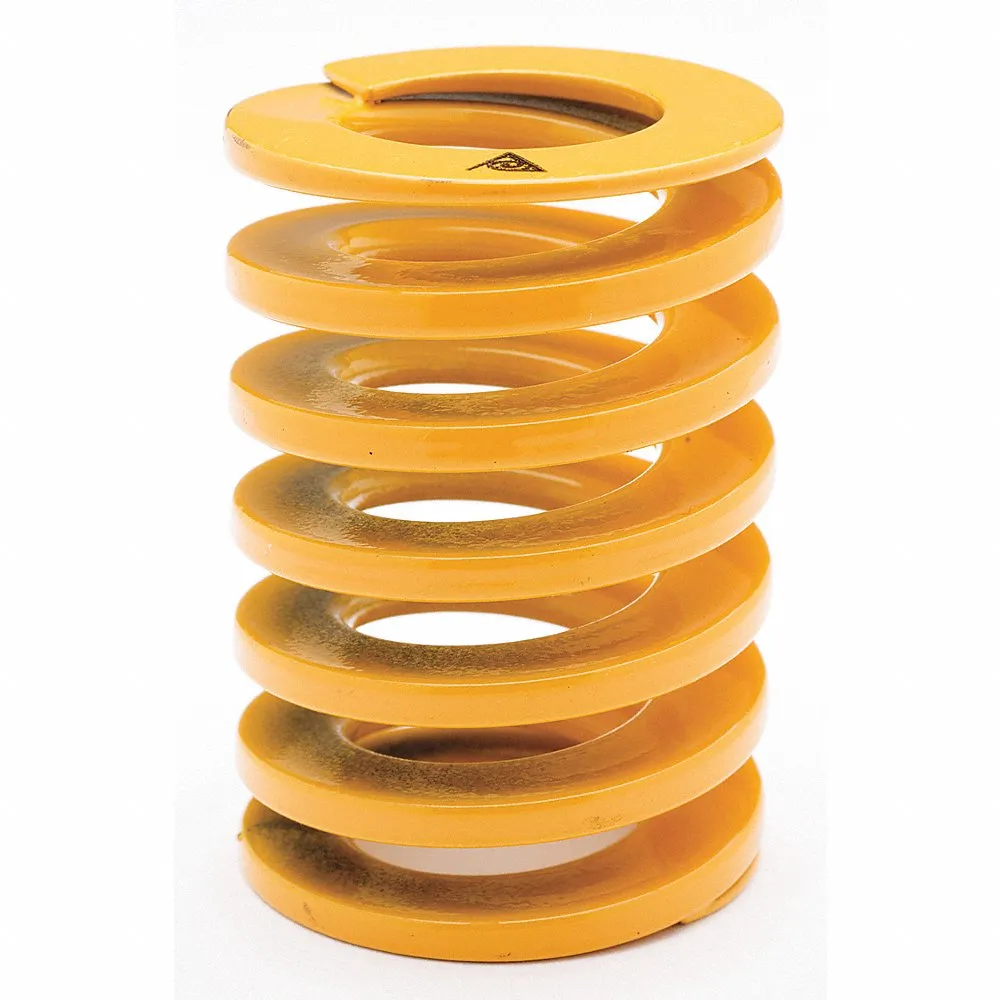

ASSOCIATED SPRING RAYMOND ASF012020 Compression Spring, 13.7 N/Mm Stiffness Rate, 30 lbf Load Capacity, Chrome Silicone
Item: CT8RGLModel: ASF012020Cross Ref: 54JW87
7 In Stock
Ships within 2 days via
10.00% off
€73.32 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Die Spring |
| Color | Yellow |
| Die Spring Color | Yellow |
| End Type | Closed, Grounded |
| Finish | Chromium |
| Free Length | 25/32" |
| Inner Dia. | 0.236" |
| Load At Max. Deflection For Long Life | 27 lbf. |
| Load At Max. Deflection For Optimal Life | 24 lbf. |
| Material | Alloy Steel, Sillicon Wire |
| Max. Deflection | 0.39" |
| Max. Deflection For Long Life | 0.354" |
| Max. Deflection For Optimal Life | 0.315" |
| Max. Operating Deflection | 0.394" |
| Operating Temp. Range | Not Rated |
| Outer Dia. | 0.472" |
| Outside Diameter | 0.47" |
| Product Type | Die Spring |
| Series | JIS Series |
| Solid Length | 0.397" |
| Spring Rate | 77.1 lbs.-in. |
| Spring Rate (stiffness) | 78.23 lbs./in. |
| Spring Shape | Cylindrical |
| System Of Measurement | Imperial |
| Type | Extra Light Duty |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 2.79 |
| Ship width (cm) | 2.79 |
| Country of Origin | US |
Product Variants
| Model | Material | Free Length | Solid Length | Outer Dia. | Inner Dia. | Spring Rate (stiffness) | Load Capacity | Finish | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ASF008010 | Alloy Steel, Sillicon Wire | 25/64" | 0.194" | 0.315" | 0.157" | 87.37 lbs./in. | Not Rated | Chromium | 10 | €72.71 | |
| ASF030100 | Alloy Steel, Sillicon Wire | 3 15/16" | 1.967" | 1.181" | 0.63" | 80.51 lbs./in. | Not Rated | Chromium | 5 | €121.64 | |
| ASF035100 | Alloy Steel, Sillicon Wire | 3 15/16" | 1.967" | 1.378" | 0.748" | 109.64 lbs./in. | Not Rated | Chromium | 5 | €146.13 | |
| ASF025100 | Alloy Steel, Sillicon Wire | 3 15/16" | 1.967" | 0.984" | 0.531" | 56 lbs./in. | Not Rated | Chromium | 5 | €121.64 | |
| ASF020100 | Alloy Steel, Sillicon Wire | 3 15/16" | 1.967" | 0.787" | 0.433" | 35.97 lbs./in. | Not Rated | Chromium | 5 | €120.72 | |
| ASF027100 | Alloy Steel, Sillicon Wire | 3 15/16" | 1.967" | 1.063" | 0.531" | 67.38 lbs./in. | Not Rated | Chromium | 5 | €112.75 | |
| ASF022100 | Alloy Steel, Sillicon Wire | 3 15/16" | 1.967" | 0.866" | 0.433" | 44.54 lbs./in. | Not Rated | Chromium | 5 | €120.74 |
