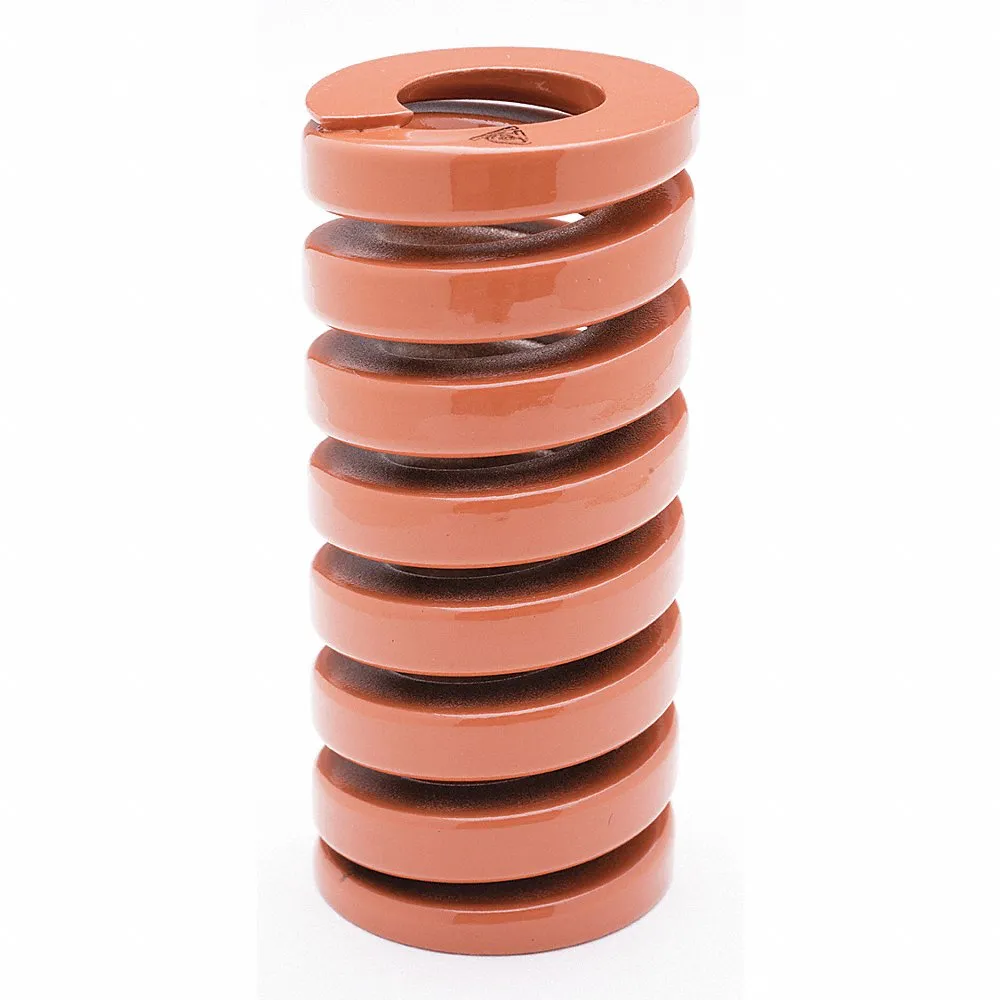

ASSOCIATED SPRING RAYMOND ASB020080 Die Spring, Extra Heavy Duty, Oil Tempered Chrome Silicone, 80 mm Overall Lg, Brown, 104.6 N/mm Spring Rate
Item: CT8REKModel: ASB020080Cross Ref: 54JV42
7 In Stock
104.6 N/mm
Ships within 2 days via
5.00% off
€134.34 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Die Spring |
| Color | Brown |
| Die Spring Color | Brown |
| End Type | Closed, Grounded |
| Finish | Chromium |
| Free Length | 3 5/32" |
| Inside Dia. | 0.394" |
| Load @ Max. Deflection For Long Life | 318 lbf. |
| Load @ Max. Deflection For Optimal Life | 282 lbf. |
| Load Capacity | Not Rated |
| Material | Alloy Steel, Sillicon Wire |
| Max. Deflection | 0.63" |
| Max. Deflection For Long Life | 0.567" |
| Max. Deflection For Optimal Life | 0.504" |
| Max. Operating Deflection | 0.63" |
| Operating Temp. | Not Rated |
| Outside Dia. | 0.787" , 0.79" |
| Product Type | Die Spring |
| Series | JIS Series |
| Solid Length | 2.52" |
| Spring Rate | 560 lbs.-in. |
| Spring Rate (stiffness) | 560 lbs./in. |
| Spring Shape | Cylindrical |
| System Of Measurement | Imperial |
| Type | Extra Heavy Duty |
Shipping Info:
| Ship weight (kg) | 0.24 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 8 |
| Ship width (cm) | 2.79 |
| Country of Origin | US |
Product Variants
| Model | Material | Free Length | Solid Length | Outer Dia. | Inner Dia. | Spring Rate (stiffness) | Load Capacity | Finish | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ASB008010 | Alloy Steel, Sillicon Wire | 25/64" | 0.314" | - | - | 948 lbs./in. | Not Rated | Chromium | 10 | €87.03 | |
| ASB035100 | Alloy Steel, Sillicon Wire | 3 15/16" | 3.147" | - | - | 1370 lbs./in. | Not Rated | Chromium | 1 | €56.74 | |
| ASB030100 | Alloy Steel, Sillicon Wire | 3 15/16" | 3.147" | - | - | 1011 lbs./in. | Not Rated | Chromium | 2 | €83.35 | |
| ASB018100 | Alloy Steel, Sillicon Wire | 3 15/16" | 3.147" | - | - | 348 lbs./in. | Not Rated | Chromium | 5 | €153.39 | |
| ASB020100 | Alloy Steel, Sillicon Wire | 3 15/16" | 3.147" | - | - | 445 lbs./in. | Not Rated | Chromium | 5 | €166.81 | |
| ASB022100 | Alloy Steel, Sillicon Wire | 3 15/16" | 3.147" | - | - | 548 lbs./in. | Not Rated | Chromium | 5 | €169.52 | |
| ASB016100 | Alloy Steel, Sillicon Wire | 3 15/16" | 3.147" | - | - | 279.8 lbs./in. | Not Rated | Chromium | 5 | €151.99 |
