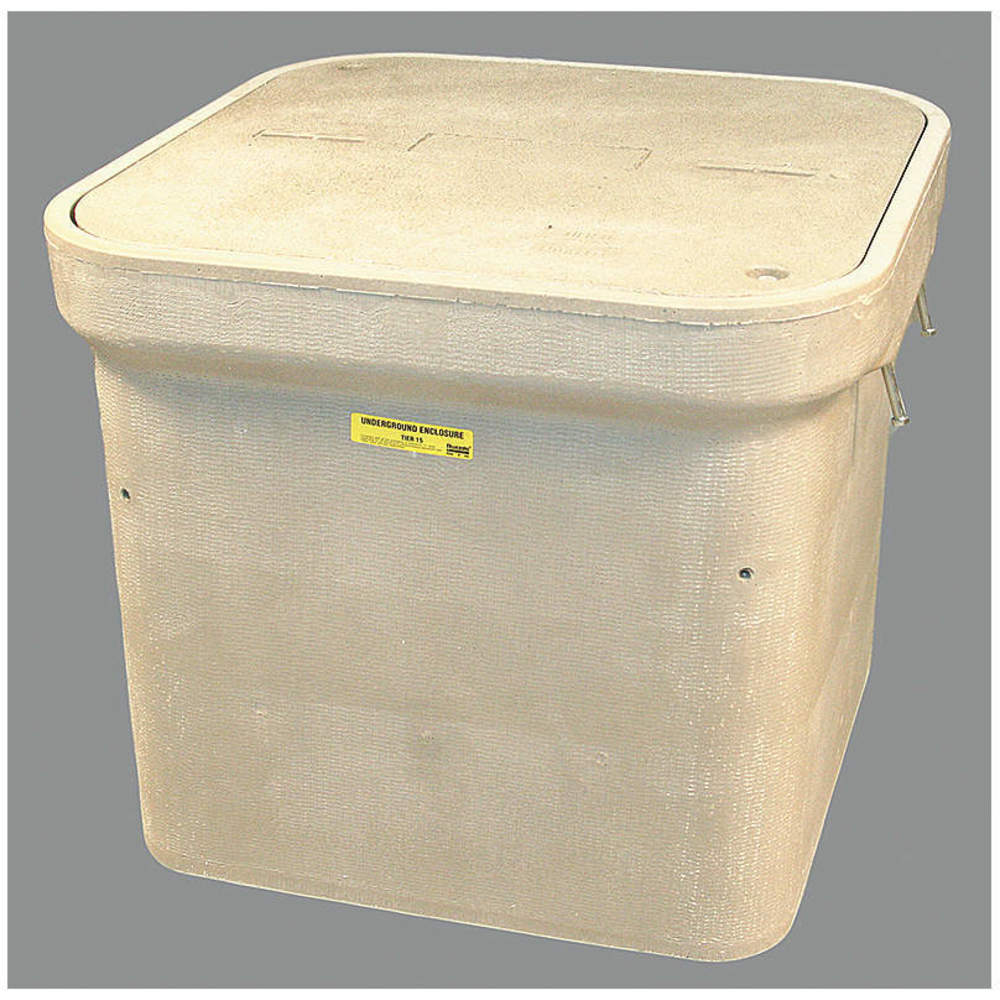

QUAZITE PG2424Z80717 Enclosure Assembly Electric 24.125 x 24.125 x 22 Tier 8
Get it by Monday, Dec 22
10.00% off
€3,269.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Underground Encl. Assembly |
| Assembly Style | PG |
| Bottom Style | Open |
| Color | Gray |
| Cover Bolt Type | (2) 3/8 In-16 x 2 3/4 In UNC Stainless Steel Hex Head Bolts |
| Cover Bolt Type | 2 Stainless Steel Hex Head Bolts 3/8-16 x 2 3/4 UNC |
| Cover Logo | Electric |
| Cover Pull Slot Size (in.) | 1/2" x 4" |
| Cover Pull Slot Size (in.) | 1/2 x 4 |
| Description/special Features | Non-Deliberate Traffic Only, Stackable |
| Dimension | 24 1/8" x 24 1/8" x 22" |
| Dimension | 24-1/8"L x 24-1/8"W x 22"H |
| Environment | Underground |
| Includes | Cover |
| Length | 28" |
| Load Capacity - Maximum | 8000 lbs. |
| Load Rating | 8000 lbs. |
| Material | Monolithic Polymer Concrete |
| Material Of Construction | Monolithic Polymer Concrete |
| Nominal Height | 22" |
| Nominal Length | 24-1/8 In. |
| Nominal Length | 24 1/8" |
| Nominal Width | 24 1/8" |
| Overall Dimensions | 28" x 28" x 24" |
| Overall Height | 24" |
| Overall Length | 28" |
| Overall Width | 28" |
| Type | PG |
| Usable Interior Height | 22" |
| Usable Interior Length | 24 1/8" |
| Usable Interior Width | 24 1/8" |
Shipping Info:
| Ship weight (kg) | 130.5 |
| Ship height (cm) | 76.2 |
| Ship length (cm) | 106.68 |
| Ship width (cm) | 73.66 |
| HS code | 6810990080 |
| Country of Origin | US |
Product Details:
- Special Features: Open Bottom
Product Variants
| Product | Model | Overall Height | Overall Length | Overall Width | Cover Logo | Load Rating | Nominal Length | Nominal Width | Overall Dimensions | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PG1118Z80246 | 12" | 20 1/4" | 13 3/8" | Traffic Signal | 15000 lbs. | 17" | 10 1/8" | 20 1/4" x 13 3/8" x 12" | €1,555.31 | |
 |
PG1324Z80129 | 12" | 25" | 15 1/2" | Lighting | 8000 lbs. | 21 1/4" | 11 3/4" | 25" x 15 1/2" x 12" | €1,648.15 | |
|
PG1324Z80146 | 12" | 25" | 15 1/2" | Traffic Signal | 8000 lbs. | 21 1/4" | 11 3/4" | 25" x 15 1/2" x 12" | €1,648.15 | |
|
PG1324Z80241 | 12" | 25" | 15 1/2" | Street Lighting | 15000 lbs. | 21 1/4" | 11 3/4" | 25" x 15 1/2" x 12" | €1,978.91 | |
|
PG1324Z80246 | 12" | 25" | 15 1/2" | Traffic Signal | - | 21 1/4" | 11 3/4" | 25" x 15 1/2" x 12" | €1,978.91 | |
 |
PG1324Z80541 | 18" | 25" | 15 1/2" | Street Lighting | 15000 lbs. | 21 1/4" | 15 1/2" | 25" x 15 1/2" x 18" | €2,060.11 | |
|
PG1324Z80546 | 18" | 25" | 15 1/2" | Traffic Signal | 15000 lbs. | 21 1/4" | 15 1/2" | 25" x 15 1/2" x 18" | €2,060.11 |
