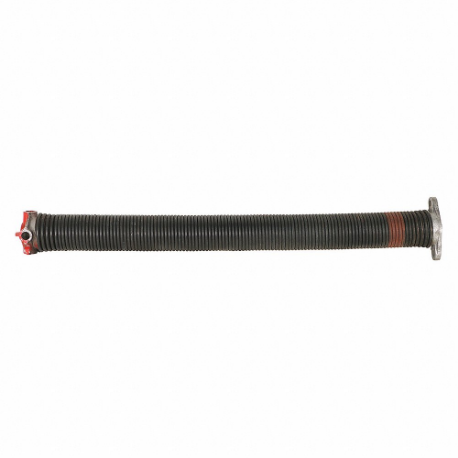

PRIME LINE GD 12308 Torsion Spring, 0.25 Inch Spring Length at Torque, 180 Deg Deflection Angle Deg
Item: CT7ZRVModel: GD 12308Cross Ref: 54DR46
7 In Stock
Ships within 2 days via
5.00% off
€134.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Torsion Spring |
| Coils Per Inch | 4.587 |
| Compatible Product Type | Garage Doors |
| Deflection Angle | 180° |
| End Type | Closed Drawbar |
| Finish | Plain |
| Free Length | 25" |
| Included | Stationary Cones, Winding Cones |
| Initial Tension | 130 lbs. |
| Inside Dia. | 2" |
| Leg Length | 25" |
| Material | Steel |
| Max. Rod Outside Dia. | 2" |
| No. Of Coils | 4 |
| Outside Dia. | 2 7/16" |
| Product Type | Torsion Spring |
| Spring Length @ Torque | 1/4" |
| System Of Measurement | Imperial |
| Wind Direction | Right Hand |
| Wire Dia. | 0.218" , 0.25" |
Shipping Info:
| Ship weight (kg) | 4.32 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Wind Direction | Material | Leg Length | Wire Dia. | Outside Dia. | Deflection Angle | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
GD 12225 | Left Hand | Steel | 18" | 0.207" | 2 5/32" | 180° | Plain | €163.49 | |
|
GD 12227 | Left Hand | Steel | 20" | 0.218" | 2 3/16" | 180° | Plain | €154.77 | |
 |
GD 12317 | Right Hand | Steel | 22" | 0.207" | 2 13/32" | 180° | Plain | €170.57 | |
 |
GD 12232 | Right Hand | Steel | 32" | 0.243" | 2 1/2" | 180° | Plain | €188.28 | |
 |
GD 12322 | Left Hand | Steel | 28" | 1/4" | 2 1/2" | 180° | Plain | €159.28 | |
 |
GD 12235 | Left Hand | Steel | 32" | 1/4" | 2 1/2" | 180° | Plain | €193.55 | |
 |
GD 12228 | Right Hand | Steel | 32" | 0.243" | 2 1/4" | 180° | Plain | €169.90 |
