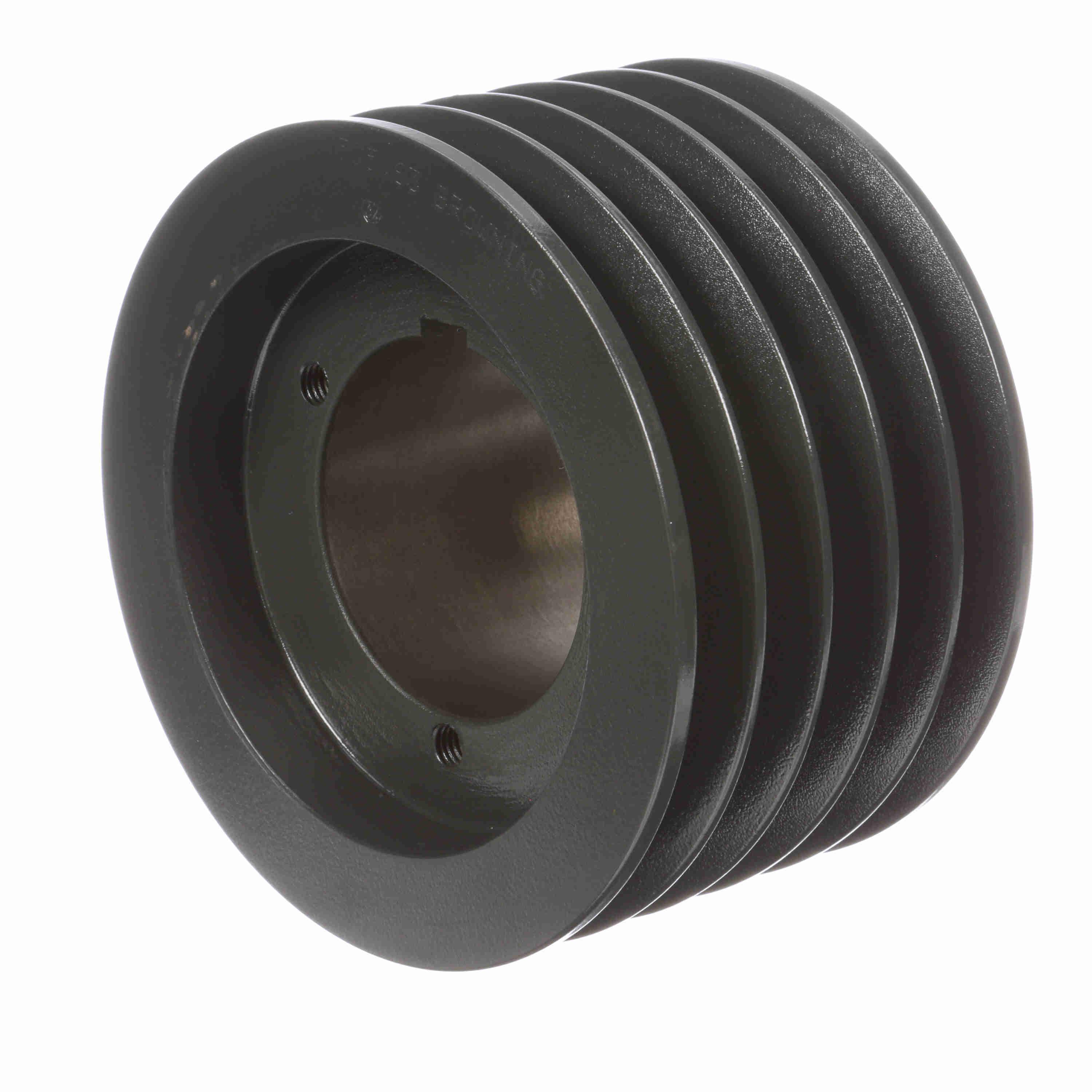

BROWNING 1061449 5Q5V63 V-Belt Sheave, Multiple, Bushed Bore, 5 Groove, Cast Iron
Get it by Tuesday, Dec 23
€953.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 5V Series |
| Bore Dia. | 1" to 2 5/8" |
| Bore Type | Split Taper |
| Bushing Type | Q2 |
| Face Width | 3 3/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 6 1/5" |
| Min. Pitch Dia. | 6 1/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 5 |
| Outside Dia. | 6.3" |
| Overall Length | 4 3/32" |
| Pitch Dia. | 6 1/5" |
| Suitable For Use With | Gripbelt 5V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 13 Solid |
| Weight | 15.9 lbs. |
Shipping Info:
| Ship weight (kg) | 7.45 |
| Ship height (cm) | 16 |
| Ship length (cm) | 10.39 |
| Ship width (cm) | 16 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1062678 | 28" | 1.69" to 4.25" | 4 3/4" | Type 13 Arm | Split Taper | Cast Iron | 3 3/4" | €2,501.62 | |
 |
1062736 | 37 1/2" | 2.38" to 5.5" | 4 3/4" | Type 13 Arm | Split Taper | Cast Iron | 3 3/4" | €3,550.99 | |
 |
1061407 | 5.9" | 1" to 2 5/8" | 4 3/32" | Type 13 Solid | Split Taper | Cast Iron | 3 3/4" | €789.53 | |
 |
1061241 | 4 3/5" | 1" to 2 5/8" | 5 1/4" | Type 5 | Split Taper | Cast Iron | 3 3/4" | €824.06 | |
|
1062603 | 25" | 1.69" to 4.25" | 4 31/32" | Type 13 Arm | Split Taper | Cast Iron | 3 3/4" | €2,659.82 | |
 |
1061522 | 7.1" | 1" to 2 5/8" | 3 11/32" | Type 13 Web | Split Taper | Cast Iron | 3 3/4" | €654.35 | |
 |
1061324 | 5 1/5" | 1" to 2 5/8" | 4 3/32" | Type 5 | Split Taper | Cast Iron | 3 3/4" | €541.35 |
