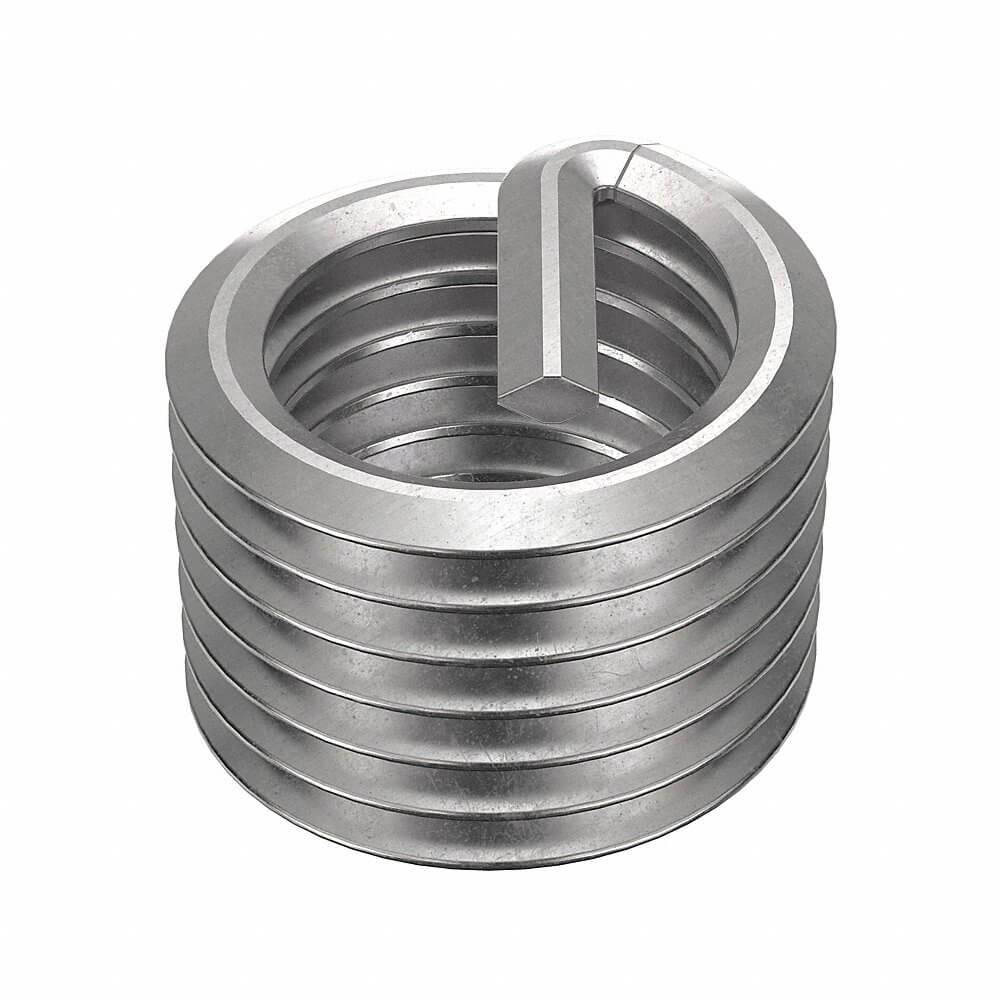

POWERCOIL 3520-16.00X1.0D Helical Insert, M16x2 Internal Thread Size, Gr. 304, 16 mm Lg.
Item: AE7DCTModel: 3520-16.00X1.0DCross Ref: 5WZR4
7 In Stock
Ships within 2 days via
10.00% off
€1.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Helical Insert |
| Display Qty | 1 |
| Drill Bit Size | 0.65" |
| Drill Size | 16.5 mm |
| Finish | Plain |
| Free Coil Dia. | 19.6 mm |
| Free Coil Diameter | 19.6088 mm |
| Grade | 304 |
| Hardness | Rockwell C43-50 |
| Helical Insert Type | Free Running |
| Internal Thread Size | M16 x 2 |
| Length | 16 mm |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Maximum Hole Diameter | 13.843 mm |
| Overall Length | 16 mm |
| Rockwell Hardness | C43-C50 |
| Series | Powercoil |
| Sti Tap Size | M16 x 2 |
| System Of Measurement | Metric |
| Tang Style | Tanged |
| Tensile Strength | 200000 psi |
| Thread Direction | Right Hand |
| Thread Size | M16 x 2 |
| Thread Type | Coarse |
| Type | Free Running |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 2.54 |
| HS code | 7318190000 |
| Country of Origin | GB |
