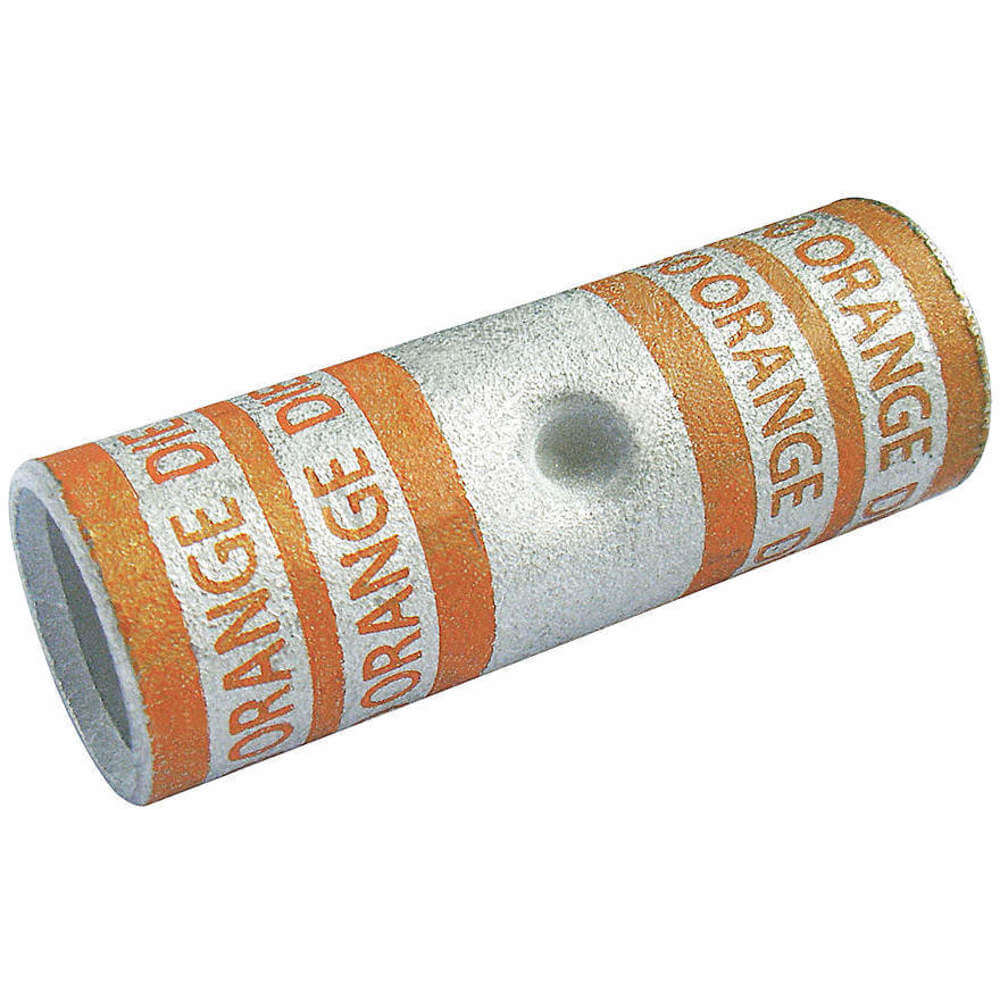

POWER FIRST 22EZ37 Splice Long Barrel Orange 3/0 Awg 2-way
Item: AB6UCRModel: 22EZ37
7 In Stock
Ships within 2 days via
10.00% off
€12.04 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Long Barrel Splice |
| Barrel Finish | Tin Plated |
| Barrel Inside Dia. | 0.51" |
| Barrel Outside Dia. | 0.63" |
| Barrel Size | Long |
| Color Code | Orange |
| Contact Finish | Tin |
| Contact Material | Copper |
| Die Code | 50 |
| For Conductor Material | Copper |
| For Wire Type | Stranded |
| Length | 2.27" |
| Length (straight Wireway) | 2.27" |
| Material | Copper |
| Material Properties | High Conductivity |
| Maximum Conductors | 1 |
| Maximum Operating Temperature | 300°F |
| Maximum Voltage | 600V |
| Maximum Wire Insulation Diameter | 0.63" |
| Maximum Wire Size | 3/0 AWG |
| Minimum Wire Size | 3/0 AWG |
| Number Of Crimps | 6 |
| Outside Dia. | 0.63" |
| Overall Length | 2.27" |
| Rohs Compliant | Yes |
| Seam Style | Seamless |
| Special Features | Low Installed Cost, Provide A Low-Resistance Connection Of High Quality |
| Strip Length | 1 5/32" |
| Termination Style | Crimp |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.1 |
| Ship length (cm) | 10 |
| Ship width (cm) | 6 |
| HS code | 8536904000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Color Code | Die Code | Overall Length | Wire Size | Wire Gauge | Material Properties | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
22EZ30 | Red | 21 | 1.77" | 8 AWG | 8 AWG | High Conductivity | €5.47 | |
 |

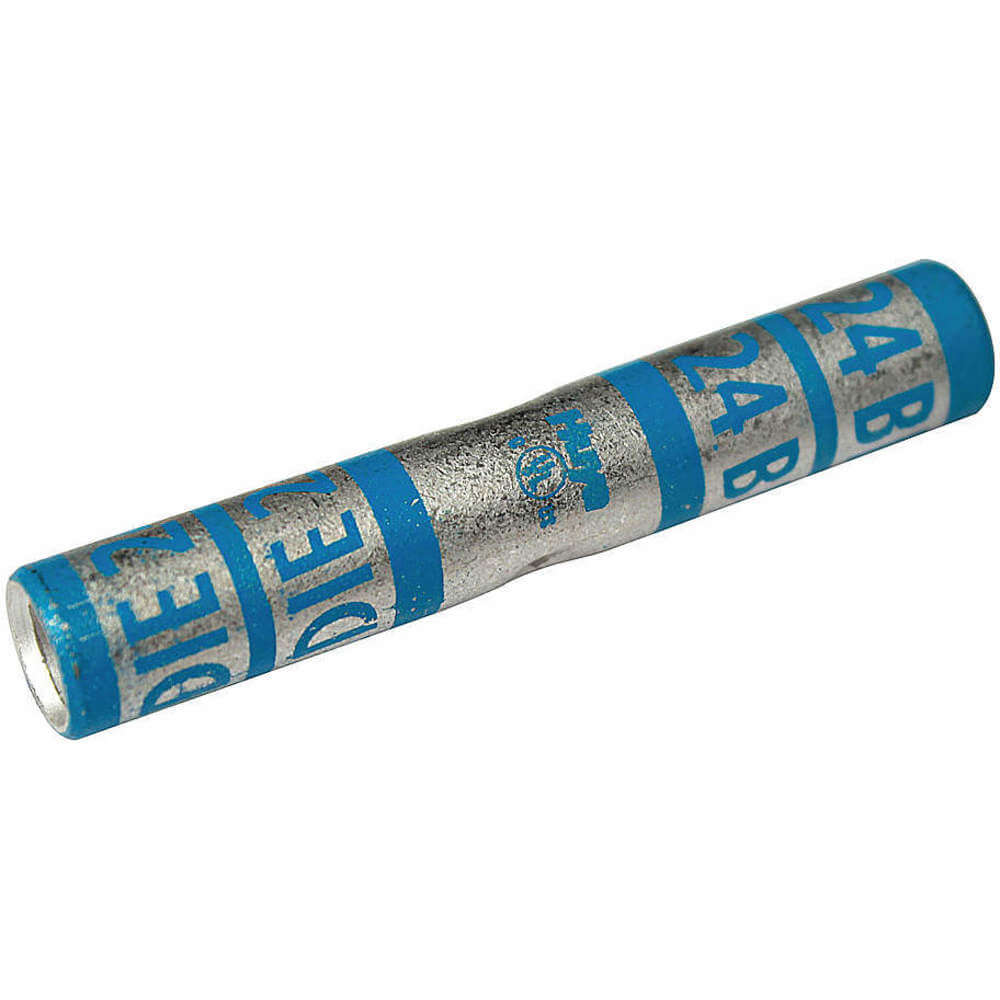

22EZ31 | Blue | 24 | 1.77" | 6 AWG | 6 AWG | High Conductivity | €5.15 | |
 |

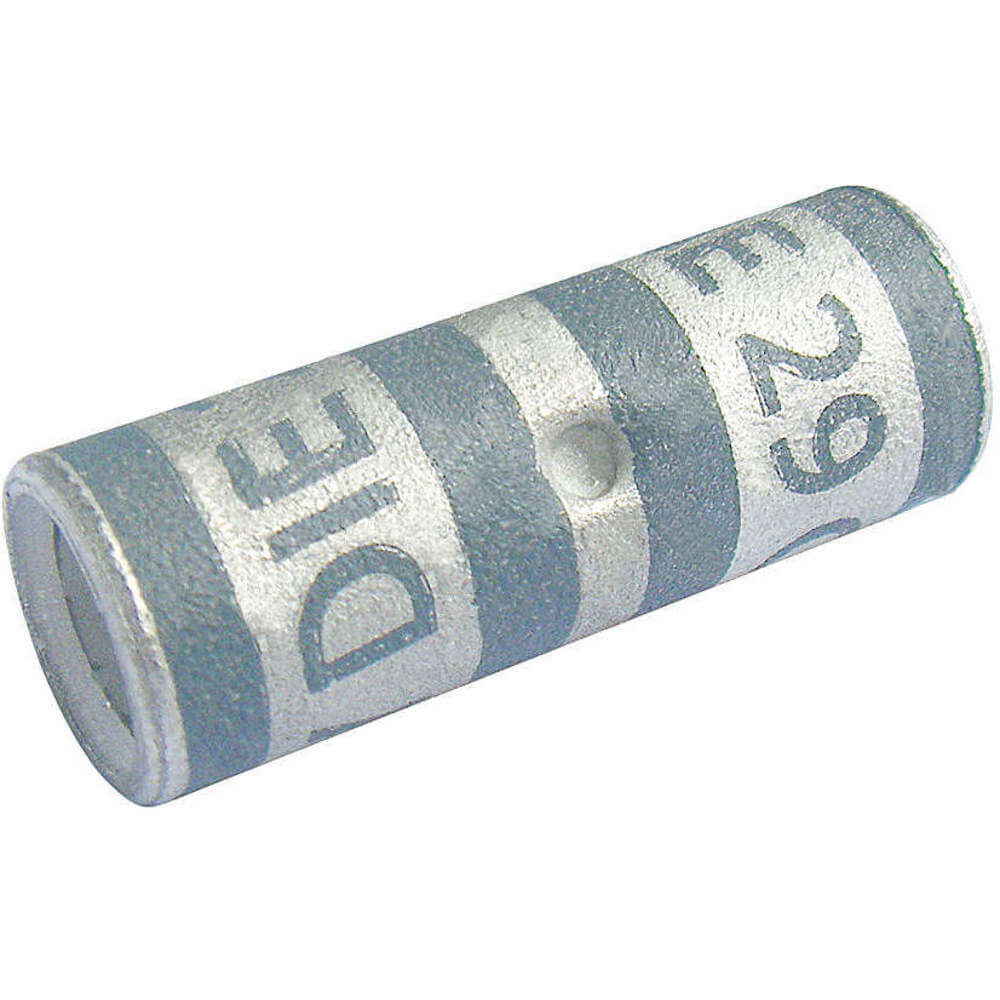

22EZ32 | Gray | 29 | 1.77" | 4 AWG | 4 AWG | High Conductivity | €5.80 | |
 |

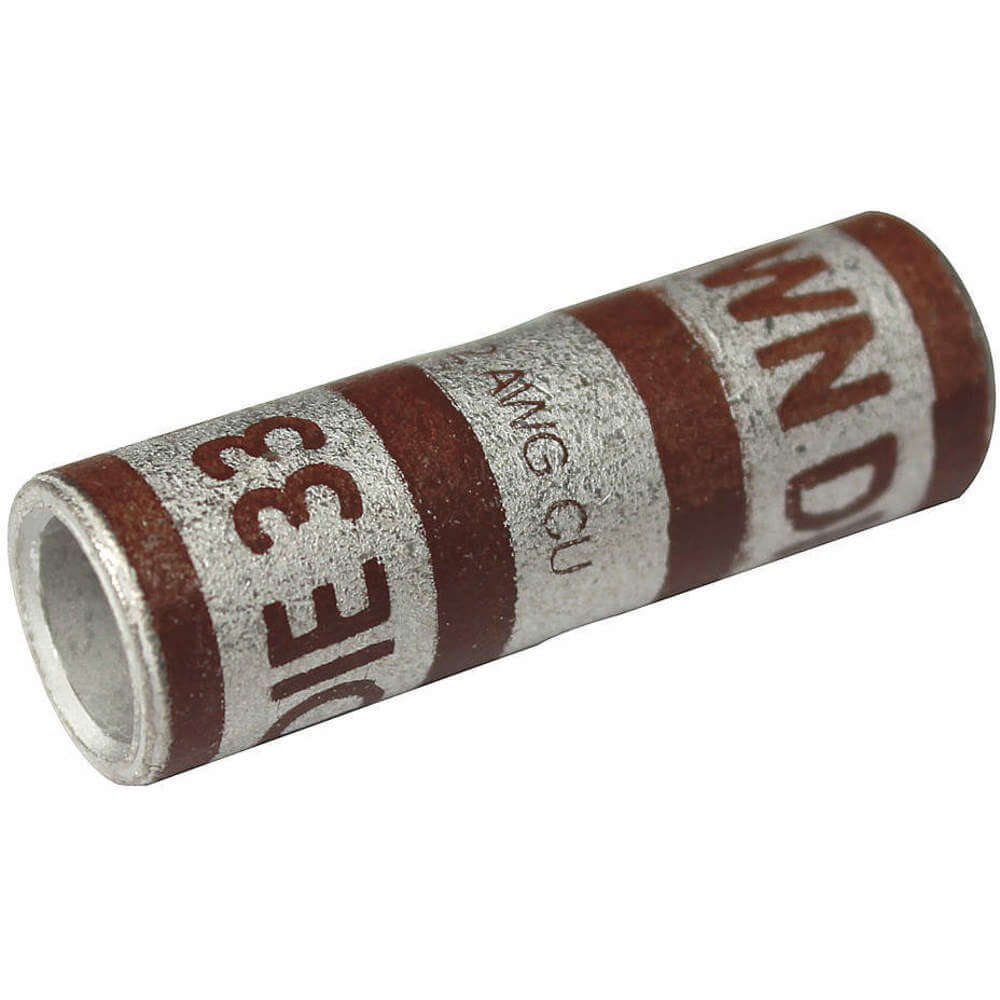

22EZ33 | Brown | 33 | 1.9" | 2 AWG | 2 AWG | High Conductivity | €7.06 | |
 |

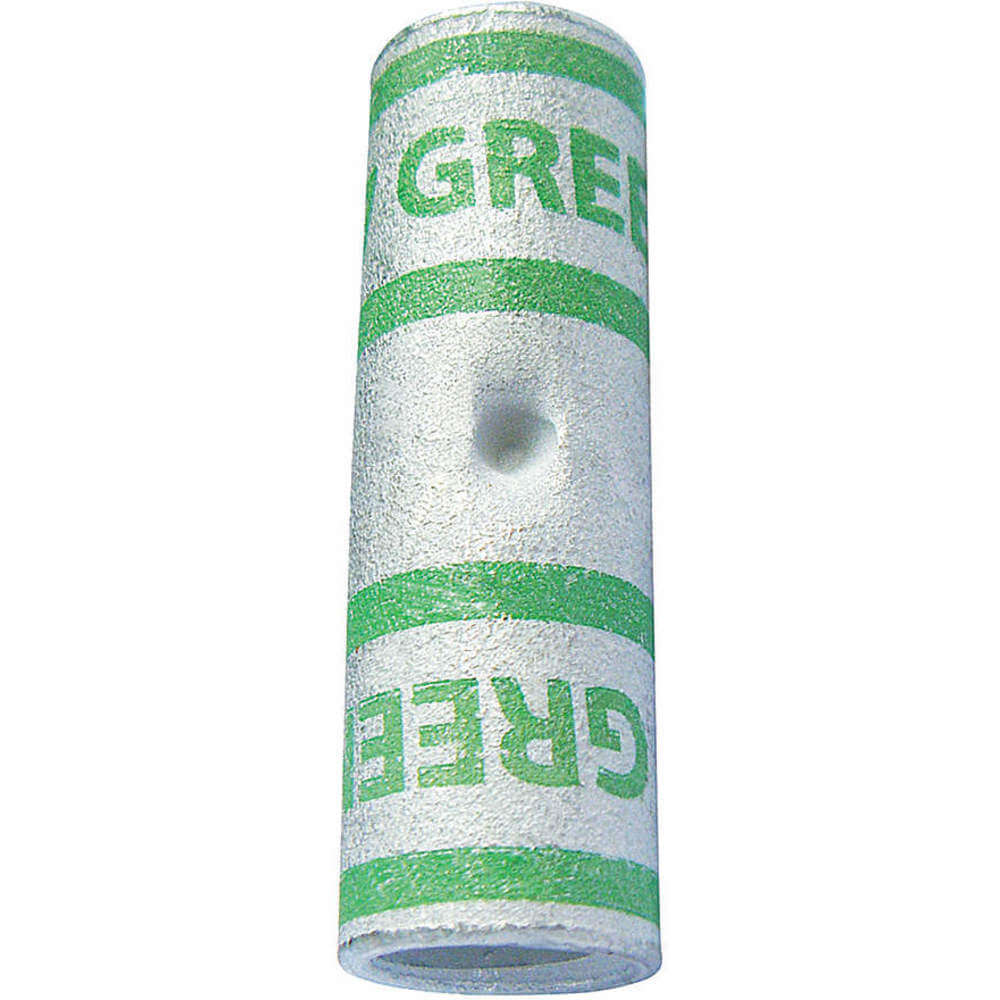

22EZ34 | Green | 37 | 2.02" | 1 AWG | 1 AWG | High Conductivity | €10.24 | |
 |

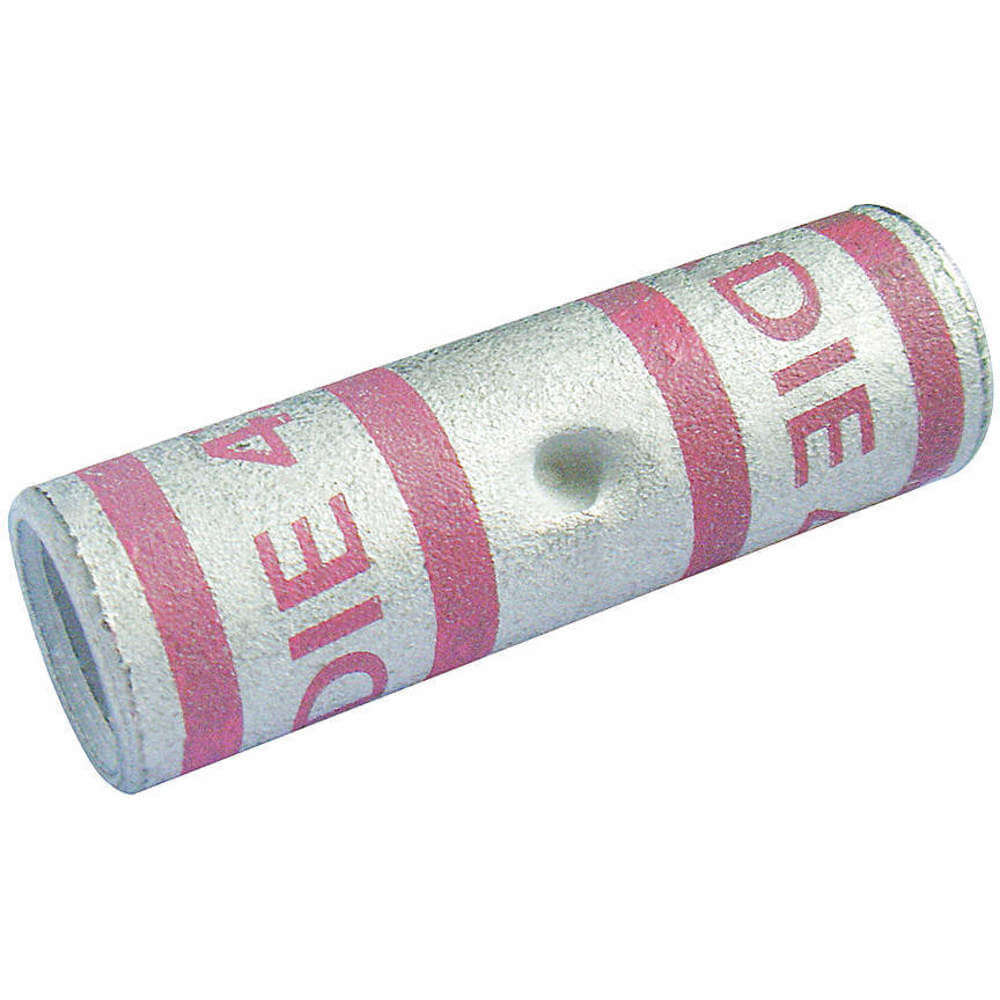

22EZ35 | Pink | 42 | 2.02" | - | - | High Conductivity | €11.09 | |
 |

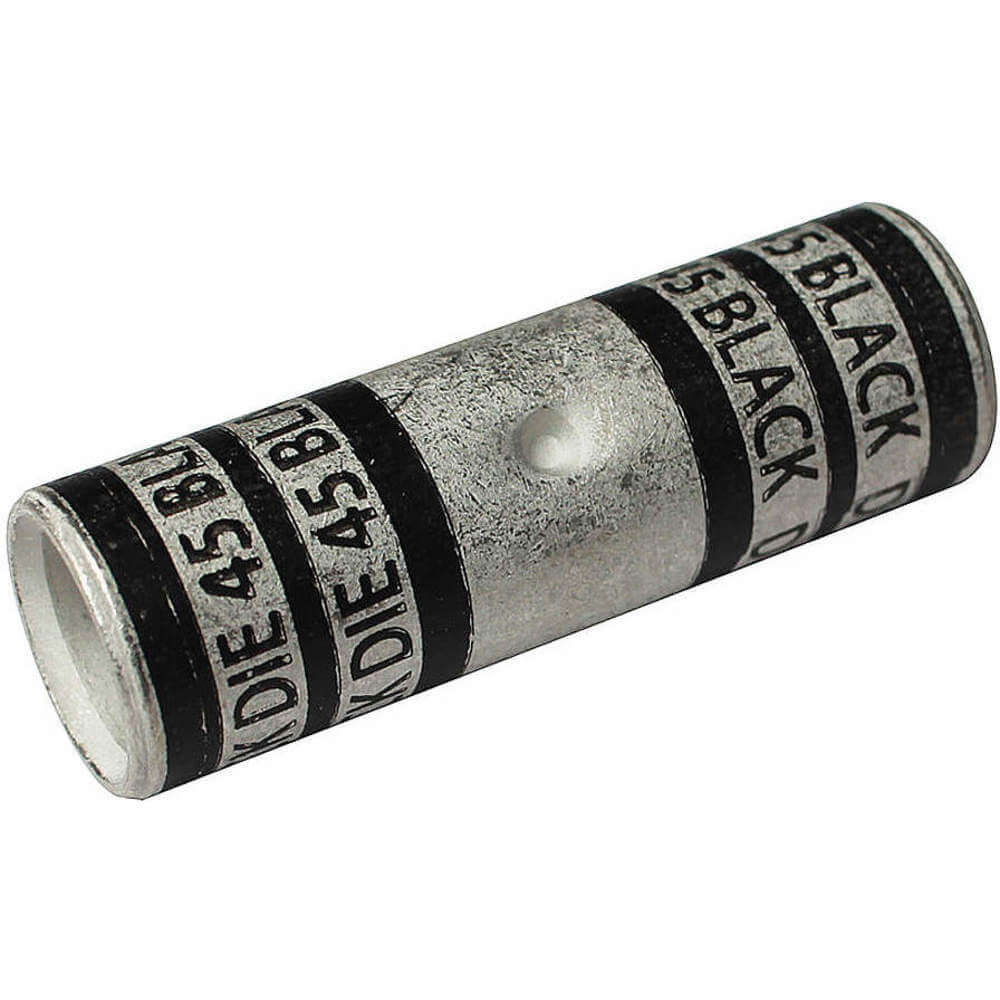

22EZ36 | Black | 45 | 2.15" | - | - | High Conductivity | €12.88 |
