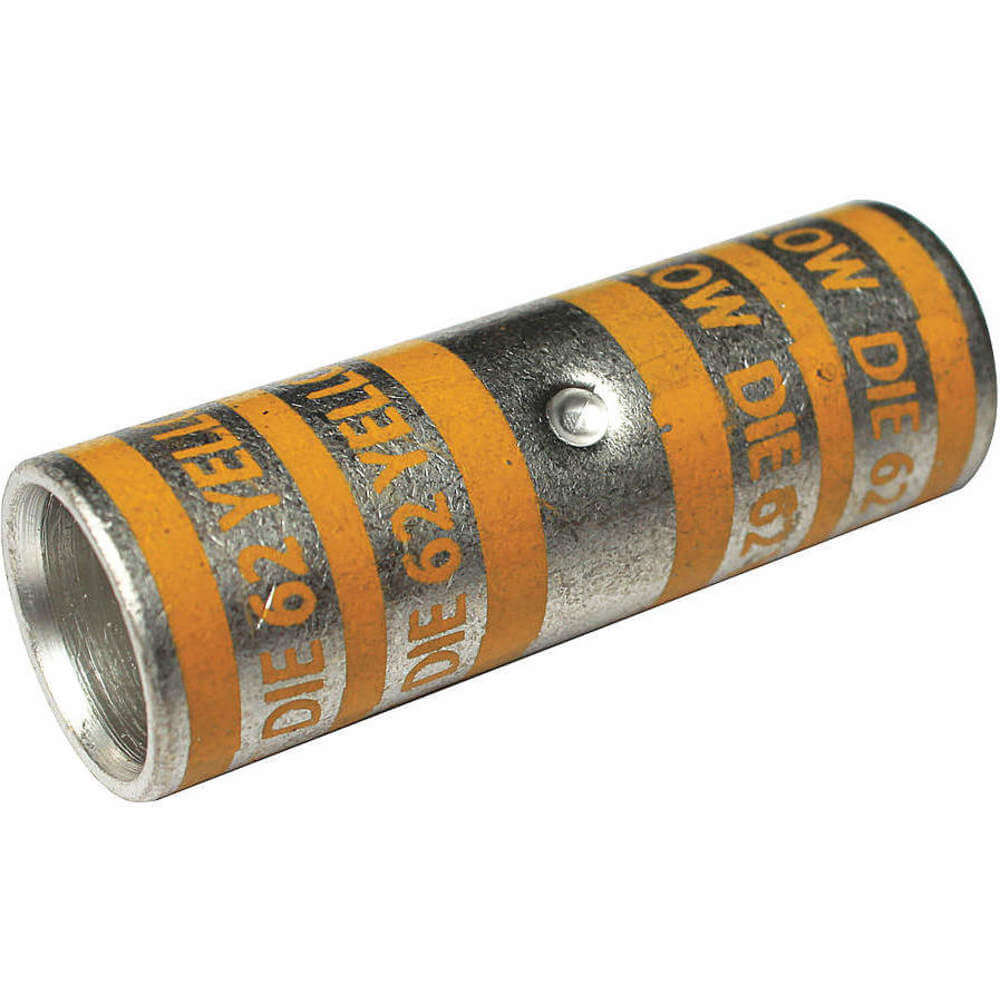

POWER FIRST 22EZ24 Splice Short Barrel Yellow 250 Mcm 2-way
Item: AB6UCCModel: 22EZ24
7 In Stock
Ships within 2 days via
10.00% off
€13.73 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Short Barrel Splice |
| Barrel Finish | Tin Plated |
| Barrel Inside Dia. | 0.63" |
| Barrel Outside Dia. | 0.77" |
| Barrel Size | Short |
| Color Code | Yellow |
| Contact Finish | Tin |
| Contact Material | Copper |
| Die Code | 62 |
| For Conductor Material | Copper |
| For Wire Type | Stranded |
| Length | 2.27" |
| Length (straight Wireway) | 2.27" |
| Material | Copper |
| Material Properties | High Conductivity |
| Max. Wire Size | 250 kcmil |
| Maximum Conductors | 1 |
| Maximum Operating Temperature | 300°F |
| Maximum Voltage | 600V |
| Maximum Wire Insulation Diameter | 0.77" |
| Min. Wire Size | 250 kcmil |
| Number Of Crimps | 4 |
| Outside Dia. | 0.77" |
| Overall Length | 2.27" |
| Rohs Compliant | Yes |
| Seam Style | Seamless |
| Special Features | Low Installed Cost, Provide A Low-Resistance Connection Of High Quality |
| Strip Length | 1 5/32" |
| Termination Style | Crimp |
| Wire Gauge | 250 kcmil |
| Wire Size | 250 kcmil |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.1 |
| Ship length (cm) | 10 |
| Ship width (cm) | 6 |
| HS code | 8536904000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Color Code | Die Code | Overall Length | Wire Size | Wire Gauge | Material Properties | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
22EZ15 | Red | 21 | 1.01" | 8 AWG | 8 AWG | High Conductivity | €2.68 | |
 |
22EZ16 | Blue | 24 | 1.01" | 6 AWG | 6 AWG | High Conductivity | €4.82 | |
 |
22EZ17 | Gray | 29 | 1.01" | 4 AWG | 4 AWG | High Conductivity | €5.55 | |
 |
22EZ18 | Brown | 33 | 1.26" | 2 AWG | 2 AWG | High Conductivity | €7.12 | |
 |
22EZ19 | Green | 37 | 1.52" | 1 AWG | 1 AWG | High Conductivity | €7.59 | |
 |
22EZ20 | Pink | 42 | 1.65" | - | - | High Conductivity | €8.58 | |
 |
22EZ21 | Black | 45 | 1.77" | - | - | High Conductivity | €10.16 |
