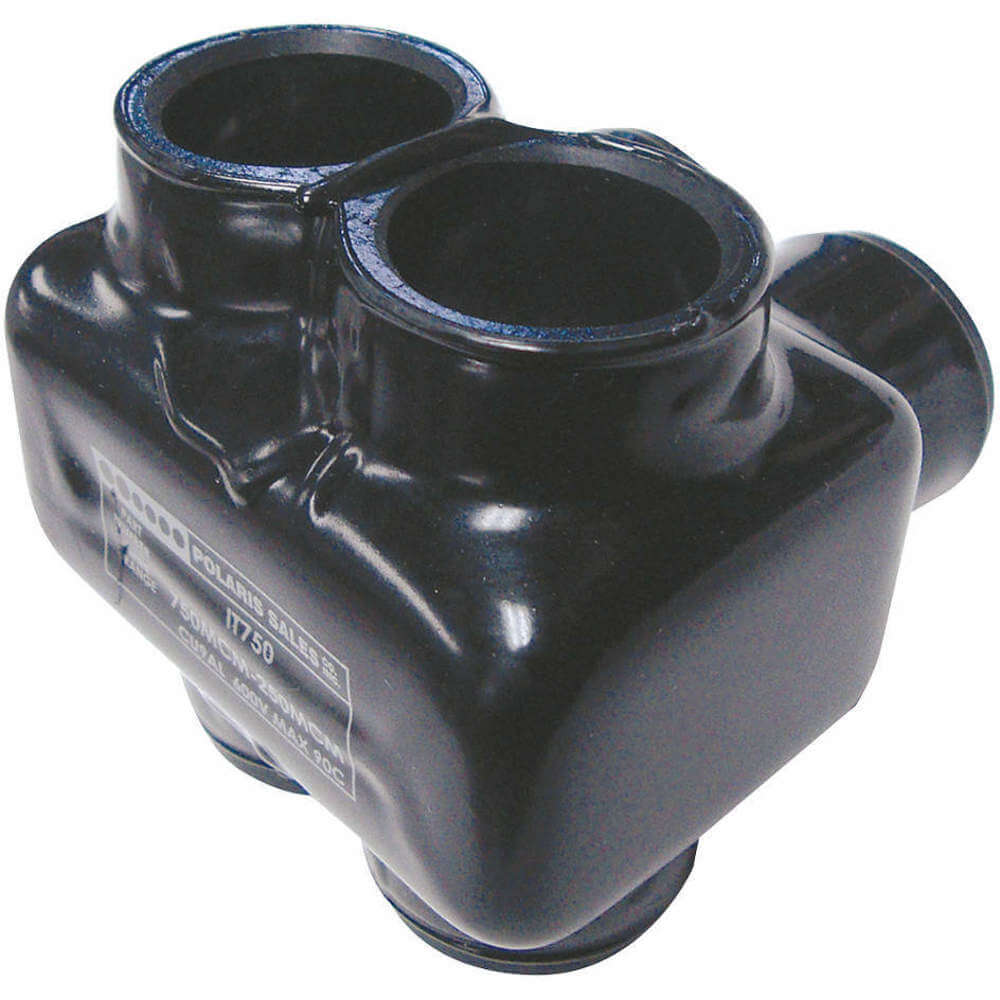

POLARIS IT-750B Insulated Connector 2 Side 750-250 Awg
Item: AA6TPMModel: IT-750BCross Ref: 14V966
7 In Stock
Ships within 2 days via
5.00% off
€182.26 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Insulated Tap Connector |
| Application | Splice |
| Body Material | Aluminum |
| Cable Size Code | 750 kcmil |
| Color | Black |
| Compatible With Product Type | Copper And Aluminum Cables |
| Connector Type | Double Sided Entry |
| Direct Burial Rated | No |
| Finish | Plastisol |
| For Conductor Material | Aluminum, Copper |
| For Stranded Copper Wire Size | 750 kcmil |
| Head Style | Hex |
| Head Type | Hex |
| Hex Size | 3/8" |
| Insulation Material | Plastisol |
| Length | 3 12/25" |
| Length (straight Wireway) | 3 12/25" |
| Max. Conductor Size | 750 kcmil |
| Max. For Stranded Copper Wire Size | 750 kcmil |
| Max. Operating Temp. | 194°F |
| Max. Voltage | 600V |
| Min. Conductor Size | 250 kcmil |
| Min. For Stranded Copper Wire Size | 250 kcmil |
| Min. Operating Temp. | -49°F |
| Mount | N |
| No. Of Conductors | 2 |
| No. Of Ports | 2 |
| Overall Length | 3.48" |
| Overall Width | 3 1/2" |
| Rohs Compliant | Yes |
| Screw Material | Aluminum |
| Strip Length | 2" |
| Stud Size | 3/8" |
| Tap Shape | Z |
| Torque | 550 lbs.-in. |
| Type | Two Sided |
| Width | 3 1/2" |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 9.4 |
| Ship width (cm) | 8.89 |
| HS code | 8536908085 |
| Country of Origin | US |
Product Variants
| Product | Model | Min. Conductor Size | Overall Width | Color | Max. Conductor Size | For Conductor Material | Min. For Stranded Copper Wire Size | Max. For Stranded Copper Wire Size | Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ITG-1B | 10 AWG | 1.55" | Gray | 1 | Copper | 10 AWG | 2 AWG | 150 lbs.-in. | - | RFQ
|
 |
ITG-6B | 14 AWG | 1 6/25" | Gray | 6 | Copper | 14 AWG | 6 AWG | 45 lbs.-in. | - | RFQ
|
 |
IT-1/0B | 14 AWG | 1.62" | Black | 0.325 AWG | Aluminum, Copper | 14 AWG | 1/0 AWG | 180 lbs.-in. | €46.64 | |
 |
IT-250B | 6 AWG | 2 1/4" | Black | 250 kcmil | Aluminum, Copper | 6 AWG | 250 kcmil | 360 lbs.-in. | €77.35 | |
 |
IT-350B | 6 AWG | 2 1/2" | Black | 350 kcmil | Aluminum, Copper | 6 AWG | 350 kcmil | 400 lbs.-in. | €97.97 | |
 |
IT-500B | 4 AWG | 2.87" | Black | 500 kcmil | Aluminum, Copper | 4 AWG | 500 kcmil | 400 lbs.-in. | €141.41 |
