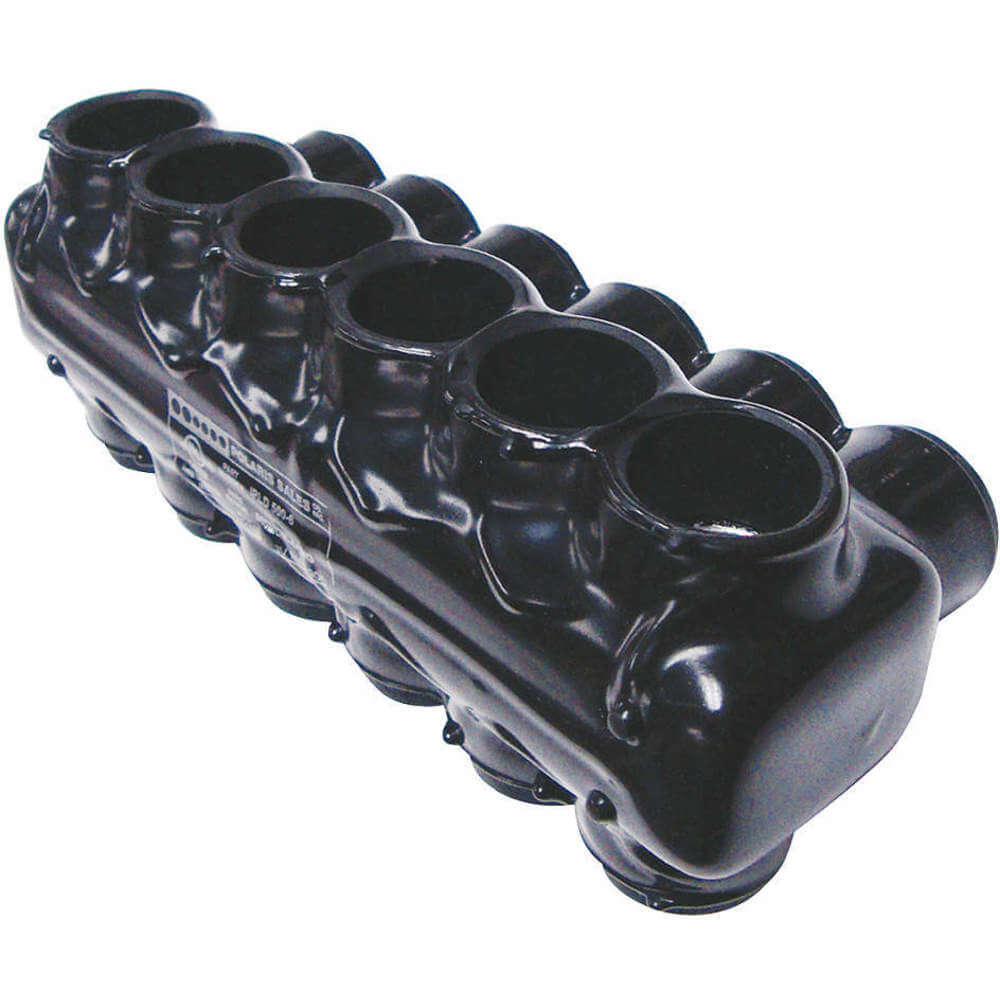

POLARIS IPLD500-6B Insulated Connector Multi-tap 7 Inch Length
Item: AA6TQFModel: IPLD500-6BCross Ref: 14V983
7 In Stock
Ships within 2 days via
10.00% off
€193.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Insulated Connector |
| Body Material | Aluminum |
| Cable Size Code | 500 kcmil |
| Color | Black |
| Compatible With Product Type | Copper And Aluminum Cables |
| Connector Type | Double Sided Entry |
| Direct Burial Rated | No |
| Finish | Plastisol |
| For Conductor Material | Aluminum, Copper |
| For Stranded Copper Wire Size | 500 kcmil |
| For Stranded Copper Wire Size - Maximum | 500 kcmil |
| For Stranded Copper Wire Size - Minimum | 4 AWG |
| Head Style | Hex |
| Head Type | Hex |
| Hex Size | 5/16" |
| Insulation Material | Plastisol |
| Length | 7.45" |
| Length (straight Wireway) | 7.45" |
| Max. Conductor Size | 500 kcmil |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 600V |
| Min. Conductor Size | 4 AWG |
| Minimum Operating Temperature | -49°F |
| Mount | N |
| No. Of Ports | 6 |
| Number Of Conductors | 6 |
| Number Of Ports | 6 |
| Overall Length | 7.52" |
| Overall Width | 2.83" |
| Rohs Compliant | Yes |
| Screw Material | Aluminum |
| Special Features | Abrasion And Chemical Resistant, Eliminates The Need For Cover And Taping, Insulated With High-Dielectric Strength Plastisol, Molded For Precise Fit And Supplied With Removable Access Plugs Over The Hex Screws, Supplied With Removable Plugs To Close The Entry Port Not Being Utilized, UV Resistant, Will Not Support Combustion, Wire Entry Ports On Both Sides Of The Connector Allow For Access From Either Side |
| Strip Length | 1 3/4" |
| Stud Size | 0.312" |
| Tap Shape | Z |
| Torque | 450 lbs.-in. |
| Type | Multi Tap |
| Width | 2.81" |
Shipping Info:
| Ship weight (kg) | 0.72 |
| Ship height (cm) | 7.87 |
| Ship length (cm) | 20.07 |
| Ship width (cm) | 8.13 |
| HS code | 8536908085 |
| Country of Origin | US |
Product Variants
| Product | Model | Stud Size | Min. Conductor Size | Screw Material | Number Of Ports | Color | Strip Length | Number Of Conductors | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IPLG6-3B | 1/8" | 14 AWG | Aluminum | 3 | Gray | 11/16" | 3 | 1.55" | - | RFQ
|
 |
ISR-1/0B | 0.188" | 14 AWG | Aluminum | 2 | Black | 1 1/16" | 2 | - | €54.89 | |
 |
ISR-250B | 0.312" | 6 AWG | Aluminum | 2 | Black | 1 3/8" | 2 | 4" | €72.21 | |
 |
ISR-350B | 0.312" | 6 AWG | Aluminum | 2 | Black | 1 3/8" | 2 | 4.47" | €88.17 | |
 |
ISR-500B | 0.312" | 4 AWG | Steel | 2 | Black | 1 3/4" | 2 | 4.62" | €137.09 | |
 |
IPL1/0-3B | 0.188" | 14 AWG | Aluminum | 3 | Black | 1 1/16" | 3 | 2.24" | €64.06 | |
 |
IPLD3/0-3B | 1/4" | 6 AWG | Steel | 3 | Black | 1 1/8" | 3 | 2.63" | €84.08 |
