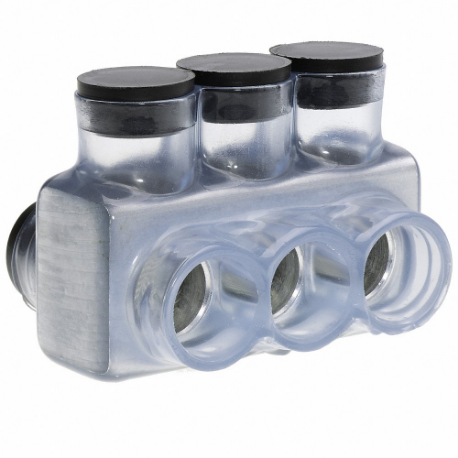

POLARIS IPLD500-3CB Insulated Multitap Connector, Clear, 3 Ports, 4 Awg to 500 Kcmil Wire Size Range
Item: CT7VDKModel: IPLD500-3CBCross Ref: 199XT1
7 In Stock
Ships within 2 days via
10.00% off
€188.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Insulated Multitap Connector |
| Body Material | Aluminum |
| Color | Clear |
| Compatible With | Copper And Aluminum Conductors |
| Compatible With Product Type | Copper And Aluminum Conductors |
| Connector Type | Double Sided Entry |
| Direct Burial Rated | No |
| Finish | Plastisol |
| For Conductor Material | Aluminum, Copper |
| For Stranded Copper Wire Size (maximum) | 500 kcmil |
| For Stranded Copper Wire Size (minimum) | 4 AWG |
| Head Style | Hex |
| Hex Size | 5/16" |
| Insulation Material | Plastisol |
| Max. Operating Temp. | 194°F |
| Max. Voltage | 600V |
| Minimum Operating Temperature | -49°F |
| Number Of Ports | 3 |
| Overall Length | 4.01" |
| Overall Width | 2.83" |
| Rohs Compliant | Yes |
| Screw Material | Aluminum |
| Strip Length | 1 3/4" |
| Tap Shape | Z |
| Torque | 450 lbs.-in. |
| Width | 2.83" |
Shipping Info:
| Ship weight (kg) | 0.49 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Body Material | For Conductor Material | Finish | Color | For Stranded Copper Wire Size (maximum) | For Stranded Copper Wire Size (minimum) | Insulation Material | Hex Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ISPBS350 | Aluminum | Aluminum, Copper | Rubber Encapsulated | Black | 350 kcmil | 12 AWG | Rubber | 5/16" | €101.32 | |
 |
IPLD500-10C | Aluminum | Aluminum, Copper | Plastisol | Clear | 500 kcmil | 4 AWG | Plastisol | 5/16" | €452.59 | |
 |
ISRH-750C | Aluminum | Aluminum, Copper | Plastisol | Clear | 750 kcmil | 0.325 AWG | Plastisol | 5/16" | €291.65 | |
 |
IT-1/0CB | Aluminum | Aluminum, Copper | Plastisol | Clear | 0.325 AWG | 14 AWG | Plastisol | 3/16" | €62.64 | |
 |
ISR-1/0CB | Aluminum | Aluminum, Copper | Plastisol | Clear | 0.325 AWG | 14 AWG | Plastisol | 3/16" | €70.70 | |
 |
IT-4CB | Aluminum | Aluminum, Copper | Plastisol | Clear | 4 AWG | 14 AWG | Plastisol | 1/8" | €43.50 | |
 |
IT-750CB | Aluminum | Aluminum, Copper | Plastisol | Clear | 750 kcmil | 250 kcmil | Plastisol | 3/8" | €265.12 |
