BALDOR / DODGE 010604 PX80 Elastomeric Coupling Para-Flex, Size Px80, Rating 3100 Rpm
Item: AK8FZTModel: 010604Cross Ref: PX80
7 In Stock
Ships within 2 days via
€403.60 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Assembly |
| Angular Misalignment | 4 |
| Axial Misalignment | 5/16" |
| Bore Length | 1 1/4" |
| Bushing Size | 2012 |
| Bushing Type | Taper Lock |
| Coupling Component | Flange |
| Coupling Style | Tire |
| Coupling Type | Elastomeric |
| Flange Material | Sintered Steel |
| Hp Per 100 Rat | 5.72 hp |
| Max. Bore Dia. | 2 1/8" |
| Max. Speed | 3100 RPM |
| Max. Temp. | 180°F |
| Min. Bore Dia. | 1/2" |
| Min. Temp. | -45°F |
| Parallel Misalignment | 1/8" |
| Shaft Attachment | Bushed |
| Shaft Spacing | Close Coupled |
| Size | PX80 |
| Speed | 3100 RPM |
| Torque | 3605 lbf. |
Shipping Info:
| Ship weight (kg) | 3.23 |
| Ship height (cm) | 6.05 |
| Ship length (cm) | 16.84 |
| Ship width (cm) | 16.84 |
| Country of Origin | US |
Product Variants
| Product | Model | Shaft Attachment | Size | Speed | Max. Speed | Torque | Coupling Type | Parallel Misalignment | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
010602 | Bushed | PX60 | 4000 RPM | 4000 RPM | - | Elastomeric | 1/8" | €235.06 | |
|
010603 | Bushed | PX70 | 3600 RPM | 3600 RPM | 2200 lbf. | Elastomeric | 1/8" | €306.03 | |
|
010605 | Bushed | PX90 | 2800 RPM | 2800 RPM | 4502 lbf. | Elastomeric | 1/8" | €545.52 | |
|
010606 | Bushed | PX100 | 2600 RPM | 2600 RPM | 5402 lbf. | Elastomeric | 1/8" | €589.25 | |
|
010607 | Bushed | PX110 | 2300 RPM | 2300 RPM | 7750 lbf. | Elastomeric | 1/8" | €650.07 | |
|
010608 | Bushed | PX120 | 2100 RPM | 2100 RPM | 12605 lbf. | Elastomeric | 1/8" | €775.53 | |
 |

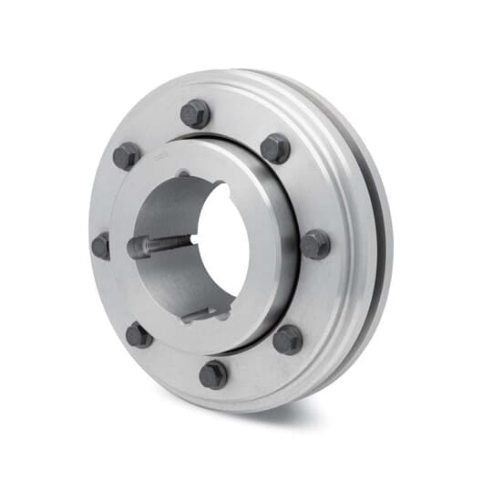

011134 | Bushed | PX140 | 1840 RPM | 1840 RPM | 27590 lbf. | Elastomeric | 1/8" | €1,345.77 |
