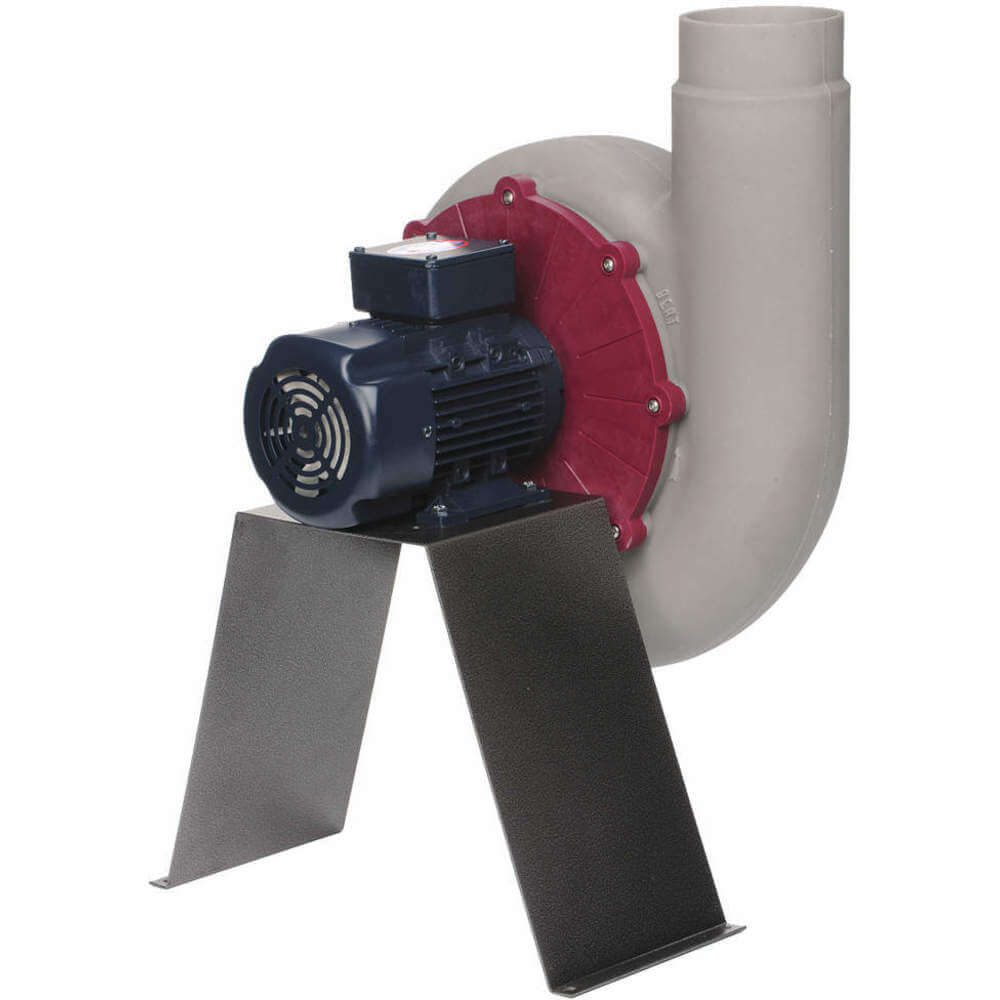

PLASTEC STORM14ST4P Blower D/d 230/460v 1/2hp
Get it by Tuesday, Dec 23
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Blower |
| Airflow @ 2.000 In Sp | 125 CFM |
| Amps | 1.8/0.9A |
| Bearing Type | Ball |
| Blower Rpm | 1725 RPM |
| Cfm @ 1.500-in. Sp | 400 CFM |
| Cfm @ 2.000-in. Sp | 125 CFM |
| Dba @ 5 Ft. | 69.1 dBA |
| Depth | 19.05" |
| Drive Package With Motor Included? | Yes |
| Drive Type | Direct Drive |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.8/0.9A |
| Height | 19 13/25" |
| Housing Finish | Polypropylene |
| Housing Height | 19 1/2" |
| Housing Material | Plastic |
| Housing Width | 16 1/2" |
| Includes | Metal Stand |
| Inlet Dia. | 4.53" |
| Inlet Diameter | 4 1/2" |
| Max. Ambient Temp. | 102°F |
| Max. Inlet Temp. | 140°F |
| Maximum Fan Speed | 1725 RPM |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Frame | 56YZ |
| Motor Frame Designation | 56YZ |
| Motor Hp | 1/2 hp |
| Motor Speed | 1725 RPM |
| Motor Type | General Purpose |
| Nameplate Voltage | 230/460V AC |
| Oem Replacement | No |
| Outlet Dia. | 4.53" |
| Outlet Diameter | 4 1/2" |
| Outlet Shape | Round |
| Outlet Type | Non Flanged |
| Overall Depth | 19" |
| Overall Height | 19 1/2" |
| Overall Width | 16 1/2" |
| Phase | 3 |
| Rotation | CCW |
| Shaft Dia. | 19 mm |
| Sound Level | 69.1 dBA @ 5 Ft. |
| Type | Direct Drive Forward Curve |
| Voltage | 230/460V |
| Wheel Dia. | 9 3/4" |
| Wheel Material | Plastic |
| Wheel Type | Polypropylene |
| Wheel Width | 3 1/2" |
| Width | 16.53" |
Shipping Info:
| Ship weight (kg) | 15.88 |
| Ship height (cm) | 66.04 |
| Ship length (cm) | 58.42 |
| Ship width (cm) | 66.04 |
| HS code | 8414596095 |
| Country of Origin | US |
Product Details:
- Applications, Comments (Designed to Exhaust Fumes from Highly Corrosive Environments Such as Laboratories, Chemical Plants and Hospitals)
