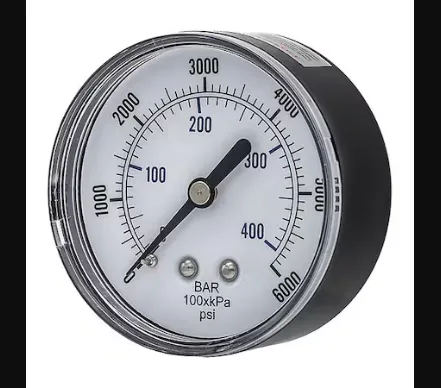

PIC GAUGES SEP-102D-254S Industrial Pressure Gauge, 0 To 6000 Psi, 2 1/2 Inch Dial, 1/4 Inch Npt Male, Center Back
Item: CT7TMPModel: SEP-102D-254SCross Ref: 54XP78
7 In Stock
Ships within 2 days via
13.00% off
€9.56 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | ±3-2-3% |
| Accuracy Grade | ASME B40.100 Grade B |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temp. | -40°F to +140°F |
| Ambient Temp. | -40°F to +140°F |
| Application | Commercial |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Dia. | 2.11" |
| Case Material | Steel |
| Connection Location | Center Back |
| Dial Color | White |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade B Commercial |
| Gauge Application | General Purpose Case |
| Gauge Case Color | Black |
| Gauge Case Liquid | None |
| Gauge Case Material | Steel |
| Gauge Connection Location | Center Back |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 2 1/2" |
| Gauge Primary Range No.ed Graduations | 1000 |
| Gauge Primary Range Units | Psi |
| Gauge Secondary Range Units | Bar |
| Gauge Socket Material | Copper Alloy |
| Graduations | 1000 psi |
| Hazardous Location Rating | Not Rated |
| Included | Plastic Case |
| Included Vent Plug | No |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material Gauge | Plastic |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 2 1/2" |
| Panel-mountable | No |
| Pointer Color | Black |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Type | Pressure |
| Primary Graduations | 1000/1000 |
| Primary Pressure | 0 to 6000 |
| Primary Scale Minor Graduations | 1000 |
| Primary Scale Units | PSI |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Range | 0 psi to 6000 psi |
| Removable Bezel | No |
| Secondary Pressure Range | 0 Bar to 414 Bar |
| Secondary Range | 0 Bar to 414 Bar |
| Secondary Scale Units | Bar |
| Sensor Material | Copper Alloy |
| Series | SEP 100 Series |
| Socket Material | Copper Alloy |
| Vibration Resistance | None |
| Wetted Material | Copper Alloy |
| Wetted Parts Material | Copper Alloy |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 5.36 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 2.69 |
| Country of Origin | CN |
Product Variants
| Product | Model | Case Material | Process Connection Size | Nominal Dial Size | Process Connection Type | Pressure | Process Connection Location | Case Dia. | Accuracy Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SEP-101D-254M-BSPT | Steel | 1/4" | 2 1/2" | NPT | 0 psi to 1000 psi | Bottom | 2.09" | ASME B40.100 Grade B | €12.36 | |
 |
SEP-102D-254M | Steel | 1/4" | 2 1/2" | NPT | 0 psi to 1000 psi | Center Back | 2.11" | ASME B40.100 Grade B | €10.99 | |
 |
SEP-102D-254M-BSPT | Steel | 1/4" | 2 1/2" | NPT | 0 psi to 1000 psi | Center Back | 2.11" | ASME B40.100 Grade B | €11.40 | |
 |
SEP-101D-204M-BSPT | Steel | 1/4" | 2" | NPT | 0 psi to 1000 psi | Bottom | 2.09" | ASME B40.100 Grade B | €10.99 | |
 |
SEP-102D-204M-BSPT | Steel | 1/4" | 2" | NPT | 0 psi to 1000 psi | Center Back | 2.11" | ASME B40.100 Grade B | €10.59 | |
 |
SEP-102D-204M | Steel | 1/4" | 2" | NPT | 0 psi to 1000 psi | Center Back | 2.11" | ASME B40.100 Grade B | €9.21 | |
 |
SEP-101D-354M | Steel | 1/4" | 3 1/2" | NPT | 0 psi to 1000 psi | Bottom | 2.09" | ASME B40.100 Grade B | €19.86 |
