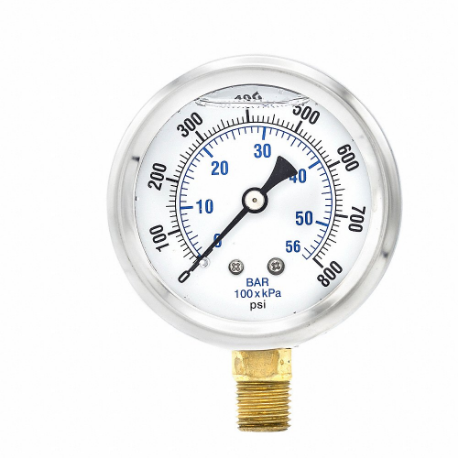

PIC GAUGES PRO-201L-254L Industrial Pressure Gauge, 0 To 800 Psi, 2 1/2 Inch Dial, Liquid-Filled, 1/4 Inch Npt Male
Item: CT7TNZModel: PRO-201L-254LCross Ref: 20TV29
7 In Stock
Ships within 2 days via
13.00% off
€32.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | +/-2-1-2% |
| Accuracy Grade | ASME B40.100 Grade A |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temp. | -30°F to +180°F |
| Ambient Temp. | -30°F to +180°F |
| Application | General Purpose |
| Basic Gauge Case Material | Stainless Steel |
| Basic Gauge Sensor Material | Copper |
| Basic Gauge Socket Material | Copper |
| Bezel Material | Stainless Steel |
| Bezel Mounting Type | Fixed |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Metallic |
| Case Depth | 1 1/5" |
| Case Dia. | 2.65" |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Connection Location | LOWER |
| Dial Color | White |
| Dial Face Color | White |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade A Industrial |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | Stainless Steel |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Filled With | Glycerin |
| Gauge Nominal Dial Size | 2 1/2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range Units | Psi |
| Gauge Socket Material | Copper Alloy |
| Gauge Wetted Parts | Copper |
| Hazardous Location Rating | Not Rated |
| Included | Vent Plug |
| Included Mounting Hardware | No |
| Included Vent Plug | Yes |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Polycarbonate |
| Lens Material Gauge | Plastic |
| Liquid Filled | Yes |
| Liquid-filled Case | Yes |
| Mfr. Series | 201L Series |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 2 1/2" |
| Non Sparking | No |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure | 0 psi to 800 psi |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Type | Pressure |
| Primary Pressure | 0 psi to 800 psi |
| Primary Scale Minor Graduations | 10 |
| Primary Scale Units | PSI |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Range | 0 psi to 800 psi |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 Bar to 55 Bar |
| Secondary Scale Units | Bar |
| Sensor Material | Copper Alloy |
| Smallest Graduation | 10 psi |
| Socket Material | Copper Alloy |
| Vibration Resistance | Liquid Filled |
| Wetted Material | Copper Alloy |
| Wetted Parts Material | Copper Alloy |
Shipping Info:
| Ship weight (kg) | 0.24 |
| Ship height (cm) | 6.73 |
| Ship length (cm) | 8.38 |
| Ship width (cm) | 3.05 |
| Country of Origin | CN |
Product Variants
| Product | Model | Nominal Dial Size | Process Connection Location | Socket Material | Sensor Material | Process Connection Size | Lens Material | Accuracy | Gauge Wetted Parts | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PRO-201L-254CE | 2 1/2" | Bottom | Copper Alloy | Copper Alloy | 1/4" | Polycarbonate | +/-2-1-2% | Copper | €27.89 | |
 |
PRO-201L-254CB | 2 1/2" | Bottom | Copper Alloy | Copper Alloy | 1/4" | Polycarbonate | +/-2-1-2% | Copper | €37.74 | |
 |
PRO-202L-254CB | 2 1/2" | Center Back | Copper Alloy | Copper Alloy | 1/4" | - | +/-2-1-2% | Copper | €29.29 | |
 |
PRO-202L-254CF | 2 1/2" | Center Back | Copper Alloy | Copper Alloy | 1/4" | Polycarbonate | +/-2-1-2% | Copper | €29.29 | |
 |
PRO-202L-254CG | 2 1/2" | Center Back | Copper Alloy | Copper Alloy | 1/4" | Polycarbonate | +/-2-1-2% | Copper | €29.29 | |
 |
PRO-302D-158CC-01 | 1 1/2" | Center Back | Stainless Steel | Stainless Steel | 1/8" | Plastic | +/-2-1-2% | Stainless Steel | €35.83 | |
 |
PRO-301D-158CC-01 | 1 1/2" | Bottom | Stainless Steel | Stainless Steel | 1/8" | Polycarbonate | +/-2-1-2% | Stainless Steel | €30.82 |
