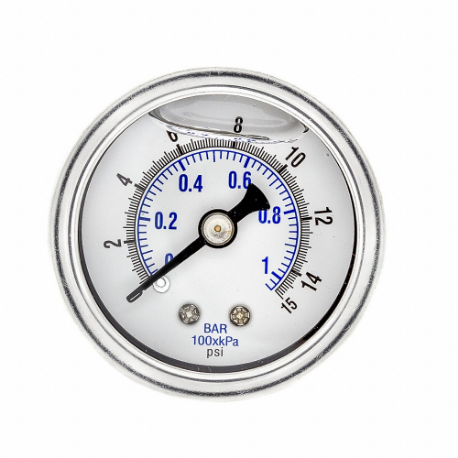

PIC GAUGES 202L-158B Industrial Pressure Gauge, 0 To 15 Psi, 1 1/2 Inch Dial, 1/8 Inch Npt Male
Item: CT7THCModel: 202L-158BCross Ref: 20TV86
7 In Stock
Ships within 2 days via
10.00% off
€31.60 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | ±3-2-3% |
| Accuracy Grade | ASME B40.100 Grade B |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temperature Range | 30°F to 160°F |
| Ambient Temp. Range | +30°F to +160°F |
| Application | General Purpose |
| Basic Gauge Case Material | Stainless Steel |
| Basic Gauge Sensor Material | Copper |
| Basic Gauge Socket Material | Copper |
| Bezel Material | Stainless Steel |
| Bezel Mounting Type | Fixed |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Metallic |
| Case Construction | Stainless Steel |
| Case Depth | 1.02" |
| Case Dia. | 1.85" |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Connection Location | Center Back |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade B Commercial |
| Gauge Application | Corrosion Resistant Case |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | Stainless Steel |
| Gauge Connection Location | Center Back |
| Gauge Connection Size | 1/8" |
| Gauge Filled With | Glycerin |
| Gauge Nominal Dial Size | 1 1/2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range Units | Psi |
| Gauge Socket Material | Copper Alloy |
| Gauge Wetted Parts | Copper |
| Hazardous Location Rating | Not Rated |
| Includes | Vent Plug |
| Includes Mounting Hardware | No |
| Includes Vent Plug | Yes |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Polycarbonate |
| Lens Material - Gauge | Plastic |
| Liquid Filled | Yes |
| Liquid-filled Case | Yes |
| Manufacturer Warranty Length | 1 yr. |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 1 1/2" |
| Non-sparking | No |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 0 psi to 15 psi |
| Pressure Range (secondary) | 0 psi to 15 psi |
| Pressure Range Type | Pressure |
| Primary Graduations | 0.1 |
| Primary Pressure Range | 0 psi to 15 psi |
| Primary Scale Minor Graduations | 0.1 |
| Primary Scale Units | Psi |
| Process Connection | 1/8" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/8" |
| Process Connection Type | NPT |
| Range | 0 psi to 15 psi |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 Bar to 1 Bar |
| Secondary Scale Units | Bar |
| Sensor Material | Copper Alloy |
| Series | 202L Series |
| Smallest Graduation | 0.1 psi |
| Socket Material | Copper Alloy |
| Standards | Asme |
| Vibration Resistance | Liquid Filled |
| Wetted Materials | Copper Alloy |
| Wetted Parts Material | Copper Alloy |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 4.7 |
| Ship length (cm) | 4.42 |
| Ship width (cm) | 2.59 |
| Country of Origin | CN |
Product Variants
| Product | Model | Pressure Range Type | Process Connection Location | Application | Pressure Range | Nominal Dial Size | Primary Scale Units | Case Dia. | Connection Location | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
202L-204CC | Compound | Center Back | General Purpose | 30 psi to 0 psi to 30 psi | 2" | In. Hg/psi | 2 7/25" | Center Back | €40.42 | |
 |
202L-158M | Pressure | Center Back | General Purpose | 0 psi to 1000 psi | 1 1/2" | Psi | 1.85" | Center Back | €40.42 | |
 |
201L-204M | Pressure | Bottom | General Purpose | 0 psi to 1000 psi | 2" | Psi | 2.27" | Lower | €32.67 | |
 |
202L-204M | Pressure | Center Back | General Purpose | 0 psi to 1000 psi | 2" | Psi | 2 7/25" | Center Back | €40.42 | |
 |
201L-208M | Pressure | Bottom | General Purpose | 0 psi to 1000 psi | 2" | Psi | 2.27" | Lower | €34.29 | |
 |
202L-208M | Pressure | Center Back | General Purpose | 0 psi to 1000 psi | 2" | Psi | 2 7/25" | Center Back | €40.63 | |
 |
201L-158E | Pressure | Bottom | General Purpose | 0 psi to 100 psi | 1 1/2" | Psi | 1.85" | Lower | €35.12 |
