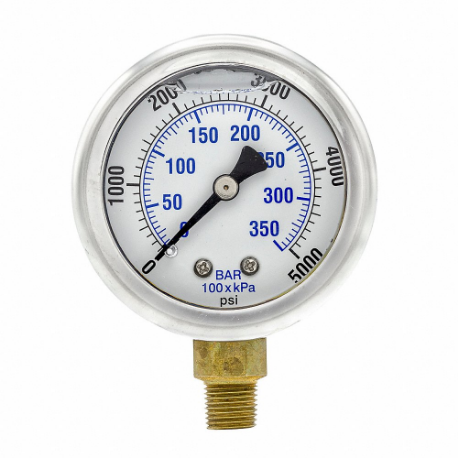

PIC GAUGES 201L-208R Industrial Pressure Gauge, 0 To 5000 Psi, 2 Inch Dial, 1/8 Inch Npt Male
Item: CT7TMFModel: 201L-208RCross Ref: 20TV11
7 In Stock
Ships within 2 days via
13.00% off
€25.04 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | ±3-2-3% |
| Accuracy Grade | ASME B40.100 Grade B |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temp. | 30°F to 160°F |
| Ambient Temp. | +30°F to +160°F |
| Application | General Purpose |
| Basic Gauge Case Material | Stainless Steel |
| Basic Gauge Sensor Material | Copper |
| Basic Gauge Socket Material | Copper |
| Bezel Material | Stainless Steel |
| Bezel Mounting Type | Fixed |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Metallic |
| Case Construction | Stainless Steel |
| Case Depth | 1 1/5" |
| Case Dia. | 2.27" |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Connection Location | LOWER |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade B Commercial |
| Gauge Application | Corrosion Resistant Case |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | Stainless Steel |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/8" |
| Gauge Filled With | Glycerin |
| Gauge Nominal Dial Size | 2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range Units | Psi |
| Gauge Socket Material | Copper Alloy |
| Gauge Wetted Parts | Copper |
| Hazardous Location Rating | Not Rated |
| Included | Vent Plug |
| Included Mounting Hardware | No |
| Included Vent Plug | Yes |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Polycarbonate |
| Lens Material Gauge | Plastic |
| Liquid Filled | Yes |
| Liquid-filled Case | Yes |
| Mfr. Series | 201L Series |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 2" |
| Non Sparking | No |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure | 0 psi to 5000 psi |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Type | Pressure |
| Primary Graduations | 100 |
| Primary Pressure | 0 psi to 5000 psi |
| Primary Scale Minor Graduations | 100 |
| Primary Scale Units | PSI |
| Process Connection | 1/8" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/8" |
| Process Connection Type | NPT |
| Range | 0 psi to 5000 psi |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 Bar to 345 Bar |
| Secondary Scale Units | Bar |
| Sensor Material | Copper Alloy |
| Smallest Graduation | 100 psi |
| Socket Material | Copper Alloy |
| Vibration Resistance | Liquid Filled |
| Wetted Material | Copper Alloy |
| Wetted Parts Material | Copper Alloy |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 5.77 |
| Ship length (cm) | 7.49 |
| Ship width (cm) | 3.05 |
| Country of Origin | CN |
Product Variants
| Product | Model | Process Connection Size | Process Connection Location | Lens Material | Pressure | Nominal Dial Size | Pressure Type | Connection Location | Case Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
202L-204CC | 1/4" | Center Back | Polycarbonate | 30 psi to 0 psi to 30 psi | 2" | Compound | Center Back | 2 7/25" | €36.82 | |
 |
202L-158M | 1/8" | Center Back | Polycarbonate | 0 psi to 1000 psi | 1 1/2" | Pressure | Center Back | 1.85" | €36.82 | |
 |
201L-204M | 1/4" | Bottom | Polycarbonate | 0 psi to 1000 psi | 2" | Pressure | LOWER | 2.27" | €29.72 | |
 |
202L-204M | 1/4" | Center Back | Polycarbonate | 0 psi to 1000 psi | 2" | Pressure | Center Back | 2 7/25" | €36.82 | |
 |
201L-208M | 1/8" | Bottom | Polycarbonate | 0 psi to 1000 psi | 2" | Pressure | LOWER | 2.27" | €28.78 | |
 |
202L-208M | 1/8" | Center Back | Polycarbonate | 0 psi to 1000 psi | 2" | Pressure | Center Back | 2 7/25" | €37.01 | |
 |
201L-158E | 1/8" | Bottom | Polycarbonate | 0 psi to 100 psi | 1 1/2" | Pressure | LOWER | 1.85" | €30.68 |
