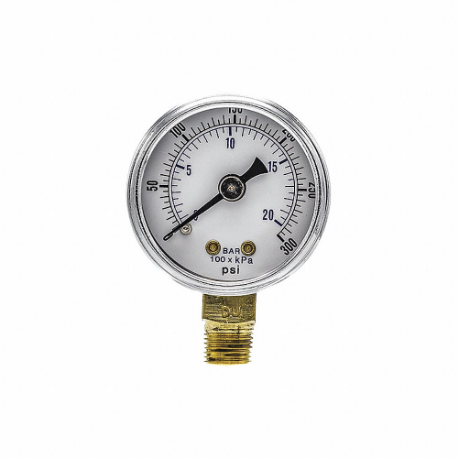

PIC GAUGES 101D-158H Industrial Pressure Gauge, Corrosion-Resistant Case, 0 To 300 Psi, 1 1/2 Inch Dial, Bottom
Item: CT7TPDModel: 101D-158HCross Ref: 54XP05
7 In Stock
Ships within 2 days via
10.00% off
€8.56 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | ±3-2-3% |
| Accuracy Grade | ASME B40.100 Grade B |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temperature Range | -50°F to +160°F |
| Ambient Temp. Range | -50°F to +160°F |
| Application | General Purpose |
| Bezel Finish | Chrome Plated , Steel |
| Bezel Mounting Type | Fixed |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Depth | 0.93" |
| Case Dia. | 1 16/25" |
| Case Diameter | 1.64" |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Connection Location | Lower |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade B Commercial |
| Gauge Application | Corrosion Resistant Case |
| Gauge Case Color | Black |
| Gauge Case Liquid | None |
| Gauge Case Material | Stainless Steel |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/8" |
| Gauge Nominal Dial Size | 1 1/2" |
| Gauge Primary Range No.ed Graduations | 50 |
| Gauge Primary Range Units | Psi |
| Gauge Secondary Range Units | Bar |
| Gauge Socket Material | Copper Alloy |
| Gauge Wetted Parts | Copper |
| Graduations | 50 psi |
| Hazardous Location Rating | Not Rated |
| Includes | Front Flange |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Plastic |
| Lens Material - Gauge | Plastic |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Manufacturer Warranty Length | 1 yr. |
| Mfr. Series | 101D Series |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 1 1/2" |
| Non-sparking | No |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 0 psi to 300 psi |
| Pressure Range Type | Pressure |
| Primary Graduations | 50 |
| Primary Pressure Range | 0 psi to 300 psi |
| Primary Scale Minor Graduations | 50 |
| Primary Scale Units | Psi |
| Process Connection | 1/8" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/8" |
| Process Connection Type | NPT |
| Range | 0 psi to 300 psi |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 Bar to 21 Bar |
| Secondary Range | 0 Bar to 21 Bar |
| Secondary Scale Units | Bar |
| Sensor Material | Copper Alloy |
| Socket Material | Copper Alloy |
| Standards | Asme |
| Vibration Resistance | None |
| Wetted Materials | Copper Alloy |
| Wetted Parts Material | Copper Alloy |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 4.17 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 2.36 |
| Country of Origin | CN |
Product Variants
| Product | Model | Nominal Dial Size | Pressure Range | Process Connection Location | Application | Case Material | Case Dia. | Accuracy Grade | Ambient Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SEP-101D-254M-BSPT | 2 1/2" | 0 psi to 1000 psi | Bottom | Commercial | Steel | 2.09" | ASME B40.100 Grade B | -40°F to +140°F | €13.62 | |
 |
SEP-102D-254M | 2 1/2" | 0 psi to 1000 psi | Center Back | Commercial | Steel | 2.11" | ASME B40.100 Grade B | -40°F to +140°F | €14.13 | |
 |
SEP-102D-254M-BSPT | 2 1/2" | 0 psi to 1000 psi | Center Back | Commercial | Steel | 2.11" | ASME B40.100 Grade B | -40°F to +140°F | €15.24 | |
 |
SEP-101D-204M-BSPT | 2" | 0 psi to 1000 psi | Bottom | Commercial | Steel | 2.09" | ASME B40.100 Grade B | -40°F to +140°F | €12.28 | |
 |
SEP-102D-204M-BSPT | 2" | 0 psi to 1000 psi | Center Back | Commercial | Steel | 2.11" | ASME B40.100 Grade B | -40°F to +140°F | €14.13 | |
 |
SEP-102D-204M | 2" | 0 psi to 1000 psi | Center Back | Commercial | Steel | 2.11" | ASME B40.100 Grade B | -40°F to +140°F | €12.31 | |
 |
SEP-101D-354M | 3 1/2" | 0 psi to 1000 psi | Bottom | Commercial | Steel | 2.09" | ASME B40.100 Grade B | -40°F to +140°F | €23.04 |
