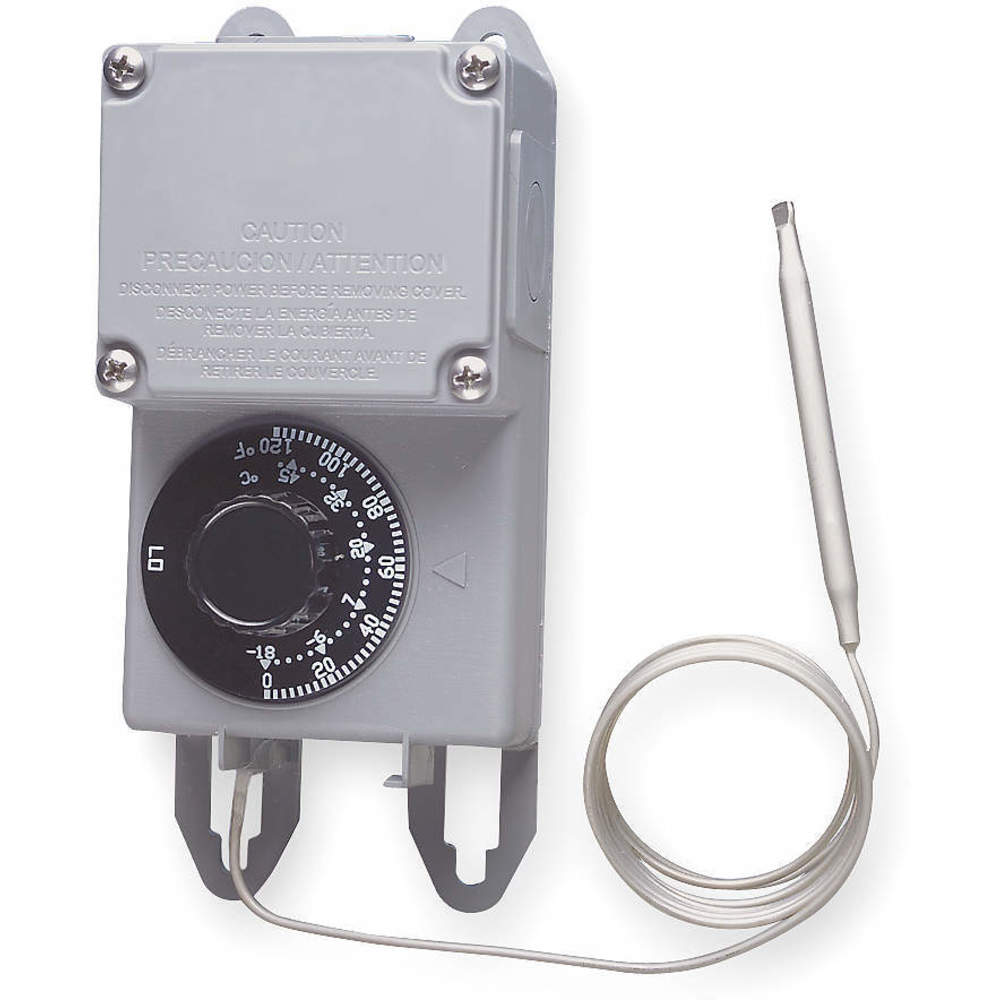

PECO CONTROL SYSTEMS TRF115-005 Remote Use Thermostat
Item: AD8VRWModel: TRF115-005Cross Ref: 4MY93
7 In Stock
Ships within 2 days via
10.00% off
€121.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Line Volt Mechanical Tstat |
| Application | Heat Or Cool |
| Bulb Diameter | 3/8" |
| Bulb Length | 2 3/8" |
| Capillary Length | 60" |
| Changeover Type | Automatic |
| Color | Gray |
| Compatible System Type | Dampers, Fans, Heat Trace, Heaters |
| Contact Rating | 120-277V AC |
| Contact Rating Resistive @ 120v | 25A |
| Contact Rating Resistive @ 240v | 25A |
| Contact Rating Resistive @ 277v | 20A |
| Control Range | 0°F to +120°F |
| Control Type | Exposed Dial |
| Depth | 2 3/8" |
| Differential | 3°F |
| Differential Type | Fixed |
| Enclosure Color | Gray |
| Enclosure Material | Plastic |
| Enclosure Nema Rating | 4X |
| Full Load Amps @ 120v | 15A |
| Full Load Amps @ 240v Ac | 12A |
| Full Load Amps @ 240vac | 12A |
| Height | 6 3/8" |
| Inductive Amps @ 120v | 16A |
| Inductive Amps @ 240v | 12A |
| Key Features | Built From Corrosion Resistant Material, Rugged |
| Locked Rotor Amps @ 120v | 80A |
| Locked Rotor Amps @ 240v | 60A |
| Maximum Control Temperature | 120°F |
| Maximum Operating Temperature | 140°F |
| Minimum Control Temperature | 0°F |
| Minimum Operating Temperature | -30°F |
| Mounting Location | Indoor/Outdoor |
| Mounting Type | Surface Mount |
| Number Of Cooling Stages | 1 |
| Number Of Heating Stages | 1 |
| Number Of Poles | 1 |
| Number Of Stages | 1 |
| Number Of Switches | 1 |
| Operating Temperature Range | -30°F to +140°F |
| Overall Depth | 2 1/2" |
| Overall Height | 6 3/8" |
| Overall Width | 3 1/8" |
| Pilot Duty Contacts | 125 VA |
| Pilot Duty Contacts (va) | 125VA |
| Pilot Duty Rating | 125 VA @ 120-277V AC |
| Resistive Amps @ 208v Ac | 25A |
| Resistive Amps @ 208vac | 25A |
| Sensing Bulb Dia. | 5/16" |
| Sensing Bulb Dia. | 0.312" |
| Sensing Bulb Length | 2-5/16" |
| Sensing Bulb Length | 2.312" |
| Sensor Location | Remote |
| Sensor Type | Hydraulic Capillary Bulb |
| Switch Action | Open On Rise |
| Switch Type | SPDT |
| Temp. Control Range | 0°F to +120°F |
| Temp. Sensitivity | -6°F to +6°F |
| Temp. Sensitivity | +/- 6 Degrees F |
| Temperature Differential | 3°F |
| Temperature Scale | Fahrenheit |
| Thermostat Type | Weatherproof Single Stage Controls |
| Voltage | 120-277V AC |
| Voltage Range | 24/120-277V AC |
| Width | 3.062" |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 18.03 |
| Ship length (cm) | 9.4 |
| Ship width (cm) | 9.91 |
| HS code | 9032100030 |
| Country of Origin | CN |
