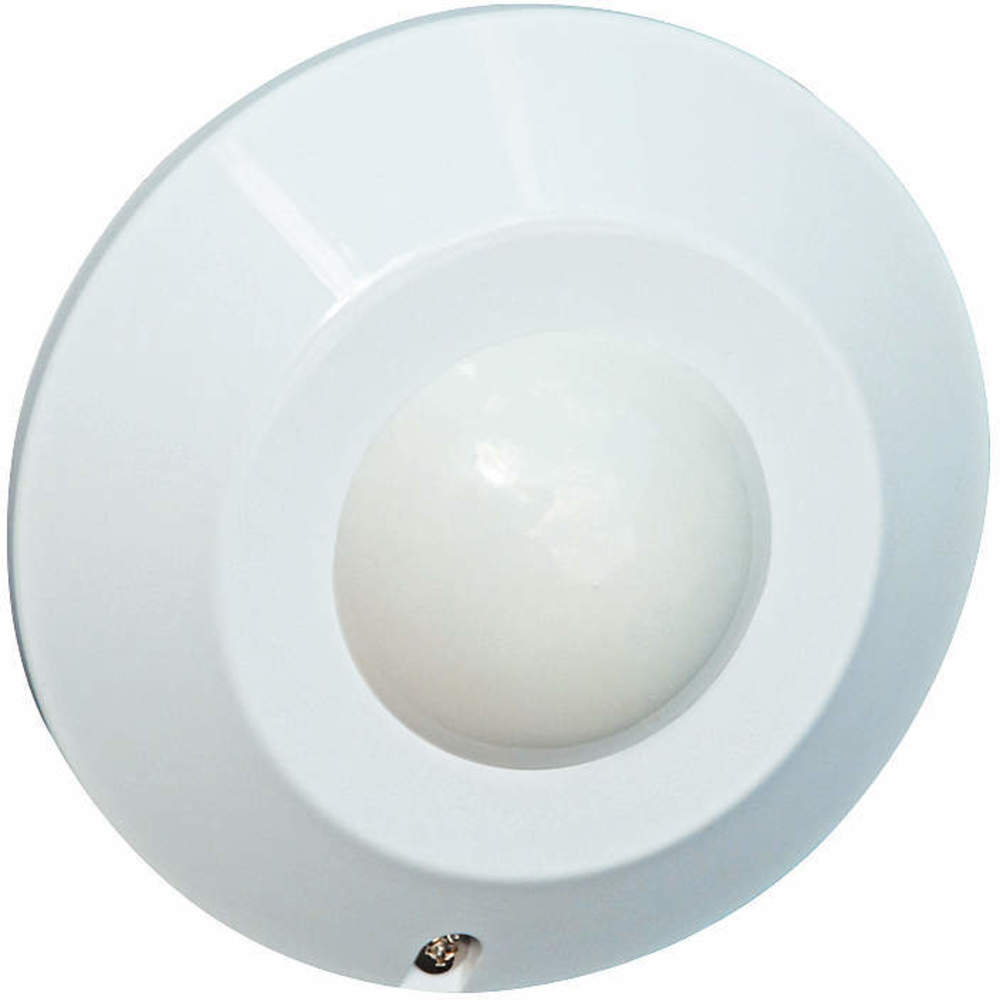

PECO CONTROL SYSTEMS SA200-001 Occupancy Sensor Circular Motion Sensor
Item: AC2VHQModel: SA200-001Cross Ref: 2NCC3
7 In Stock
Ships within 2 days via
10.00% off
€145.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Occupancy Sensor |
| Application | Motion |
| Cable Length | 49 ft. |
| Color | White |
| Compatible Brand And Series | Peco |
| Compatible Grainger Part No. | 2NCA6, 2NCA7, 6FFW5, 6FFW8 |
| Compatible Manufacturer Model No. | T12532-001, T8532-001, TA170-001, TB170-001 |
| Coverage | 3000 sq. ft. |
| Coverage Angle | 360° |
| Detection Pattern | 2.5 ft. x Mounted Height At 77°F (25°C), 360° |
| Electrical Connection Type | Hardwired |
| Height | 1 3/4" |
| Includes Temperature Sensor | No |
| Indoor/outdoor | Indoor |
| Input Voltage | 24V AC |
| Maximum Distance From Base Unit | 7.9 ft., 13.8 ft. |
| Maximum Operating Temperature | 100°F |
| Maximum Temperature | 100°F |
| Minimum Operating Temperature | -4°F |
| Minimum Temperature | -4°F |
| Mounting Height | 7.9 ft. to 13.8 ft. |
| Off Delay | 10 sec., 1 min., 5 min., 10 min., 20 min., 30 min. |
| On Delay | 0 sec., 10 sec., 30 sec., 1 min., 5 min., 10 min. |
| Operating Temp. Range | -4°F to +100°F |
| Overall Depth | 1 3/4" |
| Overall Height | 4 5/16" |
| Overall Width | 4 5/16" |
| Sensing Technology | Passive Infrared |
| Sensor Shape | Round |
| Sensor Type | Passive Infrared |
| Time Delay | 0 sec. to 10 min. |
| Type | Circular Motion Sensor |
| Voltage | 24V AC |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 13.21 |
| Ship length (cm) | 31.5 |
| Ship width (cm) | 25.15 |
| HS code | 9032100000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Height | Depth | Overall Width | Operating Temp. Range | Sensor Type | Voltage | Type | Mounting Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SD200-001 | 4 3/8" | 1 3/4" | 2 5/8" | +14°F to +100°F | Passive Infrared | 24V AC | Master Motion Sensor | 5.9 ft. to 11.8 ft. | €186.09 | |
 |
SB200-001 | 4 3/8" | 1 3/4" | 2 5/8" | -4°F to +100°F | Passive Infrared | 24V AC | Motion Sensor | 5.9 ft. to 11.8 ft. | €131.73 | |
 |
SE200-001 | 1" | 1 1/2" | - | -40°F to +257°F | Proximity | 30V DC | Door Switch | - | €15.34 | |
 |
SE200-002 | - | 1/2" | - | -40°F to +257°F | Proximity | 30V DC | Window Switch | - | €10.31 | |
|
SD200-002 | 4 3/8" | 1 3/4" | 2 5/8" | +14°F to +100°F | Passive Infrared | 24V AC | - | 5.9 ft. to 11.8 ft. | €197.37 |
