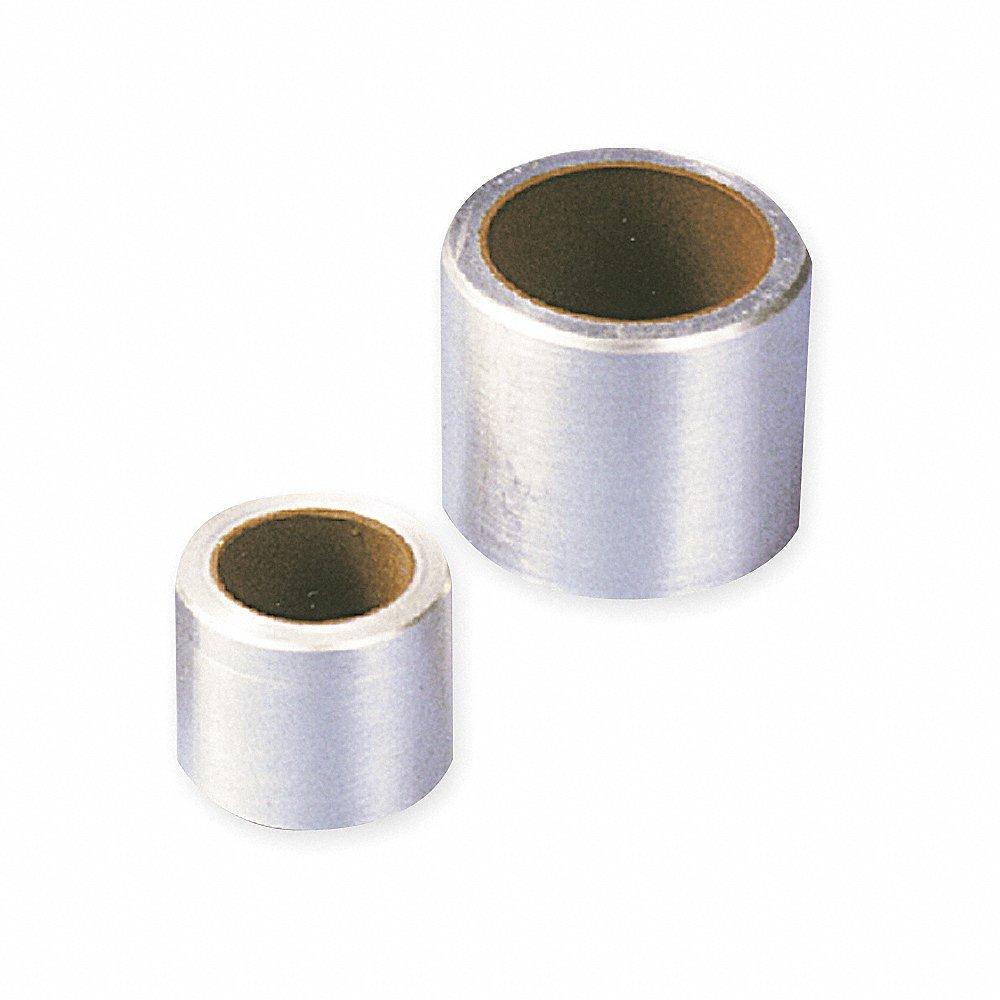

PBC LINEAR PSM0610-10 Pbc Linear Sleeve Bearing, 6 mm Inside Dia, 10 mm Length
Item: CR9NCYModel: PSM0610-10Cross Ref: 2CPW8
7 In Stock
Ships within 2 days via
5.00% off
€32.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sleeve Bearing |
| Bearing Type | Closed |
| Inside Dia. | 6 mm , 6.04 mm |
| Inside Dia. Tolerance | -0.001 to +0.001 , 0.058 mm to 0.028 mm |
| Length | 10 mm |
| Liner | Frelon Gold |
| Lubrication | Self Lubricating |
| Lubrication Type | Self Lubricating |
| Material | Aluminum |
| Max. Operating Temp. | 400°F |
| Max. Pv | 20000 lbs.-ft./sq. in-min. |
| Mfr. Series | SIMPLICITY |
| Operating Temp. | -400°F to +400°F |
| Outside Dia. | 10 mm , 10.03 mm |
| Outside Dia. Tolerance | -0.001 to +0.001 , 0.023 mm to 0.038 mm |
| Recommended Housing Bore | 10.03 mm |
| Running Clearance Class | Precision |
| Series | PSM Series |
| Shell Material | Aluminum |
| Static Load Capacity | 1236N |
| System Of Measurement | Metric |
| Type | Closed |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 0.99 |
| Ship length (cm) | 0.99 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Outside Dia. | Static Load Capacity | Inside Dia. Tolerance | Outside Dia. Tolerance | Lubrication Type | Recommended Housing Bore | Max. Pv | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| PS2428-16 | 1 3/4" | 8918 lbf. | -0.001 to +0.001 | -0.001 to +0.001 | Self Lubricating | 1.753" | 20000 lbs.-ft./sq. in-min. | Closed | €149.28 | |
| PS2024-16 | 1 1/2" | 7434 lbf. | -0.001 to +0.001 | -0.001 to +0.001 | Self Lubricating | 1.503" | 20000 lbs.-ft./sq. in-min. | Closed | €130.13 | |
| PS2832-24 | 2" | 15658 lbf. | -0.001 to +0.001 | 0.001" to 0.002" | Self Lubricating | 2.003" | 20000 lbs.-ft./sq. in-min. | Closed | €225.14 | |
| PS1620-12 | 1 1/4" | 4446 lbf. | -0.001 to +0.001 | -0.001 to +0.001 | Self Lubricating | 1.253" | 20000 lbs.-ft./sq. in-min. | Closed | €84.81 | |
| PS0812-08 | 3/4" | 1474 lbf. | -0.001 to +0.001 | -0.001 to +0.001 | Self Lubricating | 0.752" | 20000 lbs.-ft./sq. in-min. | Closed | €49.53 | |
| PS0812-04 | 3/4" | 722 lbf. | -0.001 to +0.001 | -0.001 to +0.001 | Self Lubricating6 SS0.5X9X91 | 0.752" | 20000 lbs.-ft./sq. in-min. | Closed | €46.56 | |
| PS0812-06 | 3/4" | 1098 lbf. | -0.001 to +0.001 | -0.001 to +0.001 | Self Lubricating | - | 20000 lbs.-ft./sq. in-min. | Closed | €48.67 |
