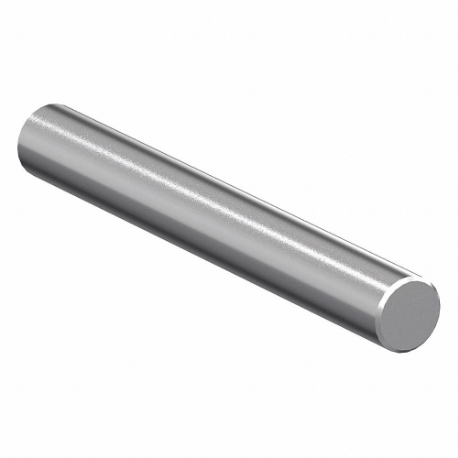

PBC LINEAR NIL12-006.000 PBC Linear Shaft, 3/4 Inch Dia, 6 Inch Length, Carbon Steel, 60 RC
Item: CR9NLMModel: NIL12-006.000Cross Ref: 2CNW8
7 In Stock
Ships within 2 days via
5.00% off
€19.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft |
| Dia. Tolerance | -0.001" to 0" , 0.749" to 0.75" |
| End Type | Plain Ends |
| Finish | Polished |
| For Use With | Linear Ball Bearings, Lined Bearings |
| Length | 6" |
| Material | Carbon Steel |
| Max. Dia. Tolerance | 0" |
| Max. Operating Temp. | 400°F |
| Min. Dia. Tolerance | -0.001" |
| Min. Operating Temp. | 0°F |
| Min. Surface Hardness | 60 HRC , 60 RC |
| Nominal Dia. | 3/4" |
| Roughness | 8µin. to 12µin. |
| Series | NIL Series |
| Shaft Dia. | 3/4" |
| Shaft Type | Solid Shaft |
| System Of Measurement | Imperial |
| Tolerance Class | L |
| Type | Solid |
| Weight Per Inch | 0.125 lbs. |
Shipping Info:
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Type | Shaft Dia. | Dia. Tolerance | Min. Surface Hardness | Nominal Dia. | Weight Per Inch | Material | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| NIL16-012.000 | Solid | 1" | -0.001" to 0" | 60 RC | 1" | 0.222 lbs. | Carbon Steel | Polished | €62.78 | |
| NIL16-018.000 | Solid | 1" | -0.001" to 0" | 60 RC | 1" | 0.222 lbs. | Carbon Steel | Polished | €93.06 | |
| NIL16-024.000 | Solid | 1" | -0.001" to 0" | 60 RC | 1" | 0.222 lbs. | Carbon Steel | Polished | €112.92 | |
| NIL16-030.000 | Solid | 1" | -0.001" to 0" | 60 RC | 1" | 0.222 lbs. | Carbon Steel | Polished | €133.82 | |
| NIL16-042.000 | Solid | 1" | -0.001" to 0" | 60 RC | 1" | 0.222 lbs. | Carbon Steel | Polished | €191.33 | |
| NIL16-060.000 | Solid | 1" | -0.001" to 0" | 60 RC | 1" | 0.222 lbs. | Carbon Steel | Polished | €234.12 | |
| NIL16-072.000 | Solid | 1" | -0.001" to 0" | 60 RC | 1" | 0.222 lbs. | Carbon Steel | Polished | €322.78 |
