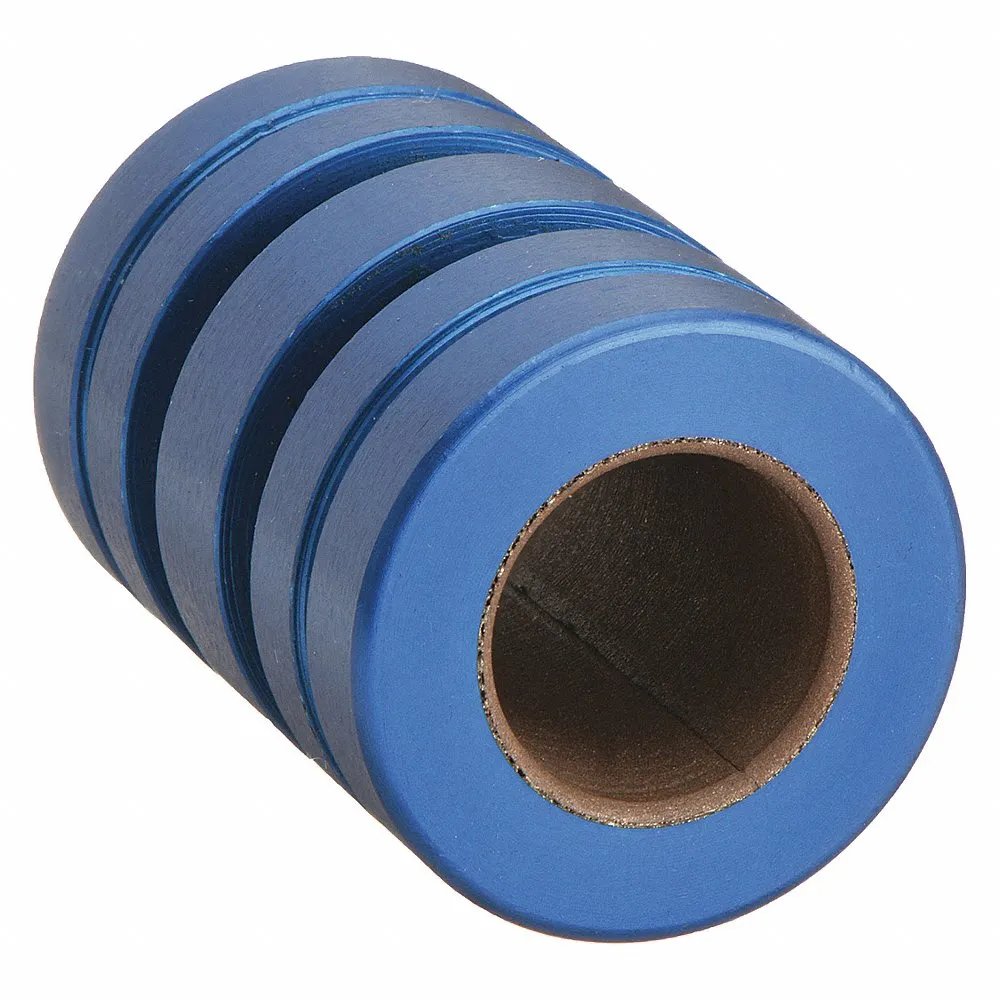

PBC LINEAR FM30 Standard Linear Bearing, 30mm Inside Dia, 68mm Length
Item: CW8PEBModel: FM30Cross Ref: 2CPE8
7 In Stock
Ships within 2 days via
5.00% off
€187.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Bearing Type | Closed |
| Between Grooves | 15 mm |
| Color | Blue |
| For Use With | Linear Motion Shafts |
| Inside Dia. | 30 mm |
| Inside Dia. Tolerance | +0.009 mm to +0.096 mm , 0.009 mm to 0.096 mm |
| Length | 68 mm |
| Liner | Frelon Gold |
| Lubrication | Self Lubricating |
| Material | Aluminum |
| Max. Pv | 20000 lbs.-ft./sq. in-min. |
| Operating Temp. | -400°F to +400°F |
| Outside Dia. | 47 mm |
| Outside Dia. Tolerance | +0.002 mm to +0.007 mm , 0.002 mm to 0.007 mm |
| Running Clearance Class | Precision |
| Self-alignment | Yes |
| Series | FM Series |
| Static Load Capacity | 42026N |
| System Of Measurement | Metric |
| Type | Closed |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 4.7 |
| Ship length (cm) | 6.78 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Static Load Capacity | Color | Inside Dia. Tolerance | Outside Dia. Tolerance | Max. Pv | Type | Liner | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FL12 | 1 1/4" | 3810 lbf. | Red | 0.0006" to 0.0003" | 0.009" to 0.05" | 20000 lbs.-ft./sq. in-min. | Closed | Frelon Gold | €61.62 | |
|
FL16 | 1 5/8" | 7050 lbf. | Red | 0.0046" to 0.0003" | 0.0003" to 0.0003" | 20000 lbs.-ft./sq. in-min. | Closed | Frelon Gold | €113.92 | |
 |
FL24 | 2 3/8" | 14100 lbf. | Red | 0.0059" to 0.0044" | -0.001 to +0.001 | 20000 lbs.-ft./sq. in-min. | Closed | Frelon Gold | €222.25 | |
 |
FL08 | 7/8" | 1950 lbf. | Red | -0.001 to +0.001 | -0.001 to +0.001 | 20000 lbs.-ft./sq. in-min. | Closed | Frelon Gold | €53.63 | |
|
FL04 | 1/2" | 600 lbf. | Red | -0.001 to +0.001 | +0.009" | 20000 lbs.-ft./sq. in-min. | Closed | Frelon Gold | €52.10 | |
 |
FL20 | 2" | 10830 lbf. | Red | -0.001 to +0.001 | -0.001 to +0.001 | 20000 lbs.-ft./sq. in-min. | Closed | Frelon Gold | €176.19 | |
 |
FM16 | 26 mm | 11870N | Blue | -0.001 to +0.001 | -0.001 to +0.001 | 20000 lbs.-ft./sq. in-min. | Closed | Frelon Gold | €58.88 |
