FREE delivery on orders over €150

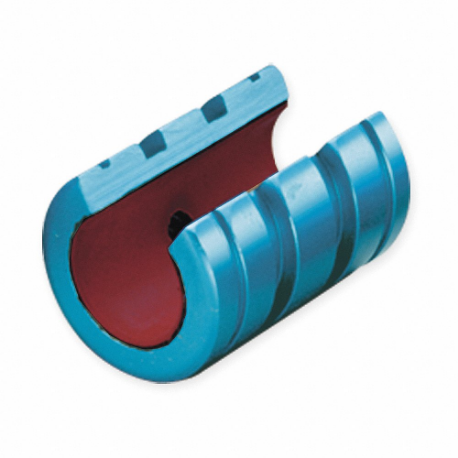

PBC LINEAR FLN08 Standard Linear Bearing 1/2 Inch
Item: AH2NMZModel: FLN08Cross Ref: 2CPF2
7 In Stock
Ships within 2 days via
5.00% off
€67.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Standard Linear Bearing |
| Bearing Type | Open |
| Between Grooves | 1/4" |
| Color | Red |
| Dimensions B | 7/8" |
| Dimensions C | 1 1/4" |
| Dimensions E | 60" |
| Finish | Anodized |
| Inside Dia. | 1/2" |
| Inside Dia. Tolerance | 0.0033" to 0.0022" |
| Length | 1 1/4" |
| Liner | Frelon Gold |
| Lubrication | Self Lubricating |
| Lubrication Type | Self Lubricating |
| Material | Aluminum |
| Max. Pv | 20000 lbs.-ft./sq. in-min. |
| Operating Temp. | -400°F to +400°F |
| Outside Dia. | 7/8" |
| Outside Dia. Tolerance | 0.004" to 0.005" |
| Running Clearance Class | Precision |
| Self-alignment | Yes |
| Series | FLN Series |
| Slot Angle | 60° |
| Slot Width | 0.313" |
| Static Load Capacity | 1950 lbf. |
| System Of Measurement | Inch |
| Temp. | 0°F to +400°F |
| Type | Open |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 4.83 |
| Ship length (cm) | 3.56 |
| Ship width (cm) | 3.56 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Static Load Capacity | Color | Inside Dia. Tolerance | Outside Dia. Tolerance | Max. Pv | Type | Liner | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FLN24 | 2 3/8" | 14100 lbf. | Red | -0.001 to +0.001 | -0.001 to +0.001 | 20000 lbs.-ft./sq. in-min. | Open | Frelon Gold | €248.82 | |
 |
FLN16 | 1 5/8" | 7050 lbf. | Red | -0.001 to +0.001 | -0.001 to +0.001 | 20000 lbs.-ft./sq. in-min. | Open | Frelon Gold | €146.49 | |
|
FLN04 | 1/2" | 600 lbf. | Red | -0.001 to +0.001 | +0.009" | 20000 lbs.-ft./sq. in-min. | Open | Frelon Gold | €56.57 | |
|
FLN20 | 2" | 5415 lbf. | Red | -0.001 to +0.001 | -0.001 to +0.001 | 20000 lbs.-ft./sq. in-min. | Open | Frelon Gold | €239.35 | |
 |
FMN12 | 22 mm | 806 lbf. | Blue | -0.001 to +0.001 | -0.001 to +0.001 | 20000 lbs.-ft./sq. in-min. | Open | Frelon Gold | €30.07 | |
|
FMN16 | 26 mm | 11870N | Blue | -0.001 to +0.001 | -0.001 to +0.001 | 20000 lbs.-ft./sq. in-min. | Open | Frelon Gold | €80.71 | |
 |
FMN20 | 32 mm | 18541N | Blue | -0.001 to +0.001 | -0.001 to +0.001 | 20000 lbs.-ft./sq. in-min. | Open | Frelon Gold | €92.17 |
