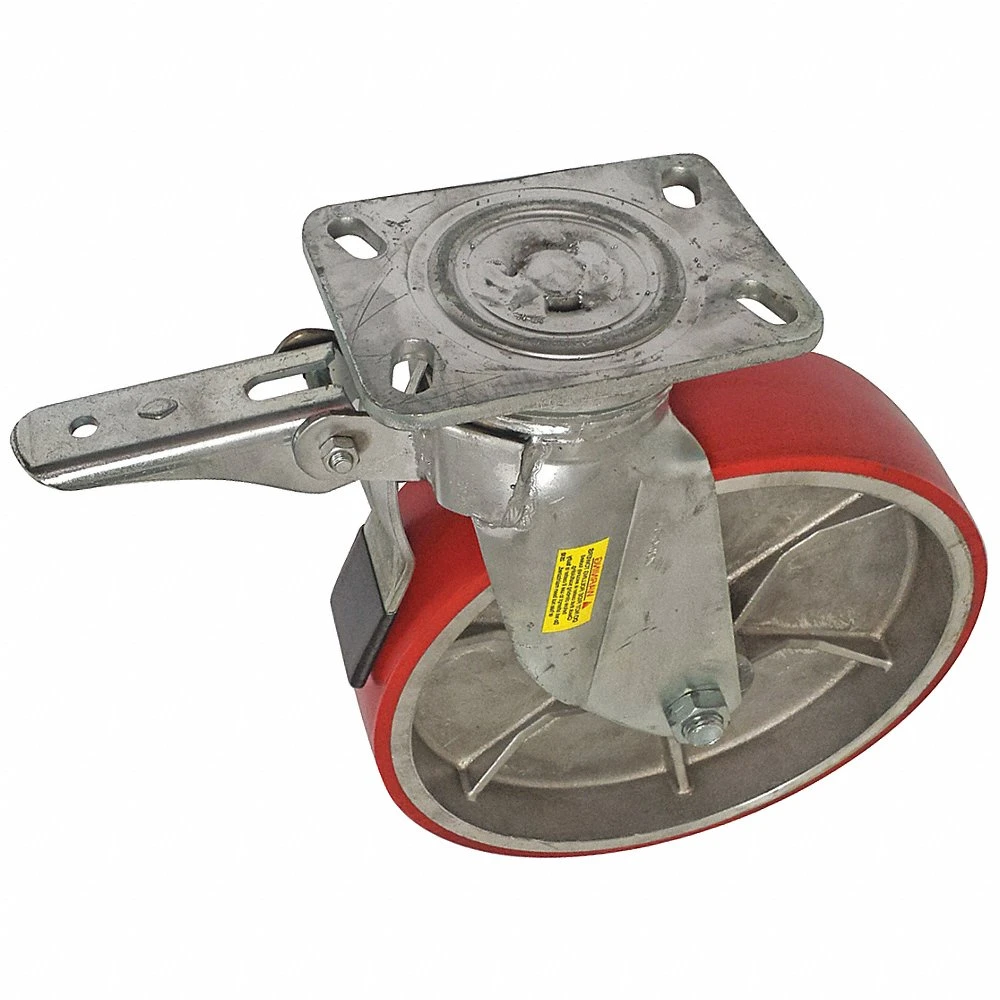

PAYSON CASTERS 400-12UL-PB Standard Plate Caster, 12 Inch Dia, 14 1/2 Inch Height
Get it by Friday, Dec 19
10.00% off
€485.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Brake Type | Total Lock Brake |
| Caster Brake Included | Yes |
| Caster Brake Type | Total Lock Brake |
| Caster Core Material | Aluminum |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Plate Hole Pattern | A |
| Caster Shape | Standard |
| Caster Temp. Range Available | No |
| Core Color | Silver |
| Frame Finish | Zinc |
| Frame Material | Steel |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Load Rating | 2300 lbs. |
| Load Rating Range | 1000 lbs. to 2999 lbs. |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 14 1/2" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 4 3/4" x 6 5/8" |
| Mounting Plate Size & Bolt Hole Pattern | 4 3/4" X 6 5/8" ( A ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Plate Caster Bolt Hole Pattern | A |
| Replacement Wheel | 12300-UL |
| Swivel Construction | Kingpin |
| Swivel Lock Type | Total Lock |
| Swivel Raceway Type | Double Ball |
| Tread Material, Wheel Material | Polyurethane |
| Tread Shape | Standard |
| Wheel Bearing Type | Roller |
| Wheel Color | Red |
| Wheel Core Material | Aluminum |
| Wheel Diameter | 12" |
| Wheel Width | 3" |
| Wheel/tread Color | Red |
| Wheel/tread Hardness | 80-95 Shore A |
| Wheel/tread Hardness Rating | Firm |
Shipping Info:
| Ship weight (kg) | 11.61 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Mounting Plate Bolt Hole Pattern | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Width | Load Rating | Mounting Height | Mounting Plate Size | Wheel Core Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

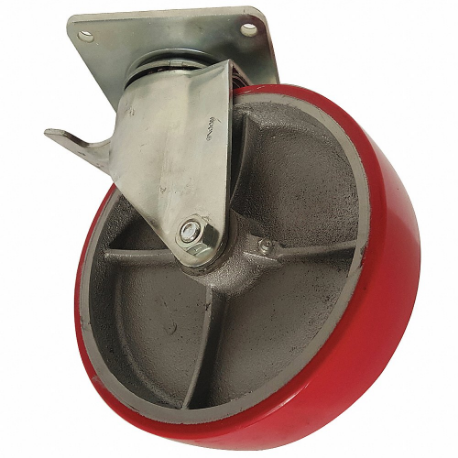

200-8UL-SK-B | D | 4 1/2" x 4 1/8" | 4 1/2" x 4 1/8" | 2" | 1000 lbs. | 9 1/2" | 5" x 5.5" | Cast Iron | €175.25 |
