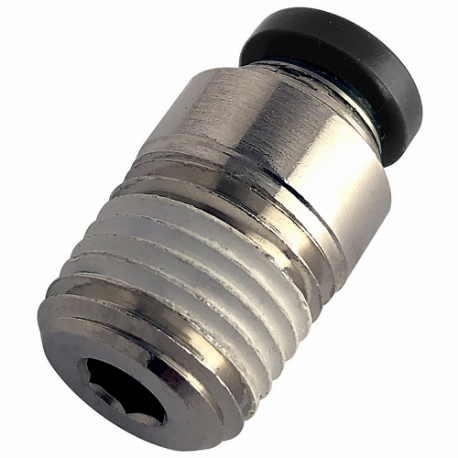

PARKER XW68PLPR-4-2 Push-To-Connect Fitting, Push-To-Connect x Mnptf
Item: CN8MEZModel: XW68PLPR-4-2Cross Ref: 800K84
7 In Stock
Ships within 2 days via
10.00% off
€9.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air, Automotive, Climate Control, End-Of-Arm Tooling, Factory Automation, Industrial, Inert Gases, Oil Lines, Packaging, Pneumatics, Robotic Welding, Robotics, Semi-Conductor, Textile, Vacuum Lines |
| Color | Silver |
| Compatible Tube Hardness | 90 Shore A, 95 Shore A |
| Compatible Tube Material | Polyethylene, Polypropylene, Polyurethane, Rigid Nylon, Semi Rigid Nylon |
| Finish, Coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Pipe Size | 1/8" |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | MNPTF |
| Fitting Side B Pipe Size | 1/8" |
| Grade | Grade C36000 |
| Includes Pre-applied Thread Sealant | Yes |
| Length | 7/8" |
| Material | Brass |
| Material Grade | Grade C36000 |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 200°F |
| Min. Operating Temp. | 0°F |
| Overall Length | 7/8" |
| Release Ring Color | Black |
| Release Ring Material | Nitrile Rubber |
| Release Type | Button |
| Resistance Properties | Chemical Resistant |
| Series | Prestolok Series |
| Specific Fitting Shape | Round Body Connector |
| Standards | Ul94 V-0 |
| System Of Measurement | Imperial |
| Thread Sealant Type | White Acrylic |
| Vacuum Rating | 28 in. hg |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.22 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Operating Pressure | Max. Operating Temp. | Fitting Material | Material | Specific Fitting Shape | Color | Overall Length | Fitting Side A Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
68PLP-10M-4G | 300 psi | 200°F | Brass | Brass | Straight Adapter | Silver | 31.875 mm | Push To Connect | €15.97 | |
|
68PLP-10M-6G | 300 psi | 200°F | Brass | Brass | Straight Adapter | Silver | 26.8125 mm | Push To Connect | €16.79 | |
 |
66PLP-10M-6G | 300 psi | 200°F | Brass | Brass | Straight Adapter | Silver | 39.5 mm | Push To Connect | €32.15 | |
 |
66PLPBH-10M-6G | 300 psi | 200°F | Brass | Brass | Straight Adapter | Silver | 39.5 mm | Push To Connect | €28.27 | |
|
66PLP-10M-4G | - | 200°F | Brass | Brass | Straight Adapter | Silver | 38.21875 mm | Push To Connect | €35.57 | |
|
68PLP-10M-8G | 300 psi | 200°F | Brass | Brass | Straight Adapter | Silver | 31.875 mm | Push To Connect | €20.45 | |
 |
68PLP-4M-2G | 300 psi | 200°F | Brass | Brass | Straight Adapter | Silver | 23.21875 mm | Push To Connect | €8.62 |
