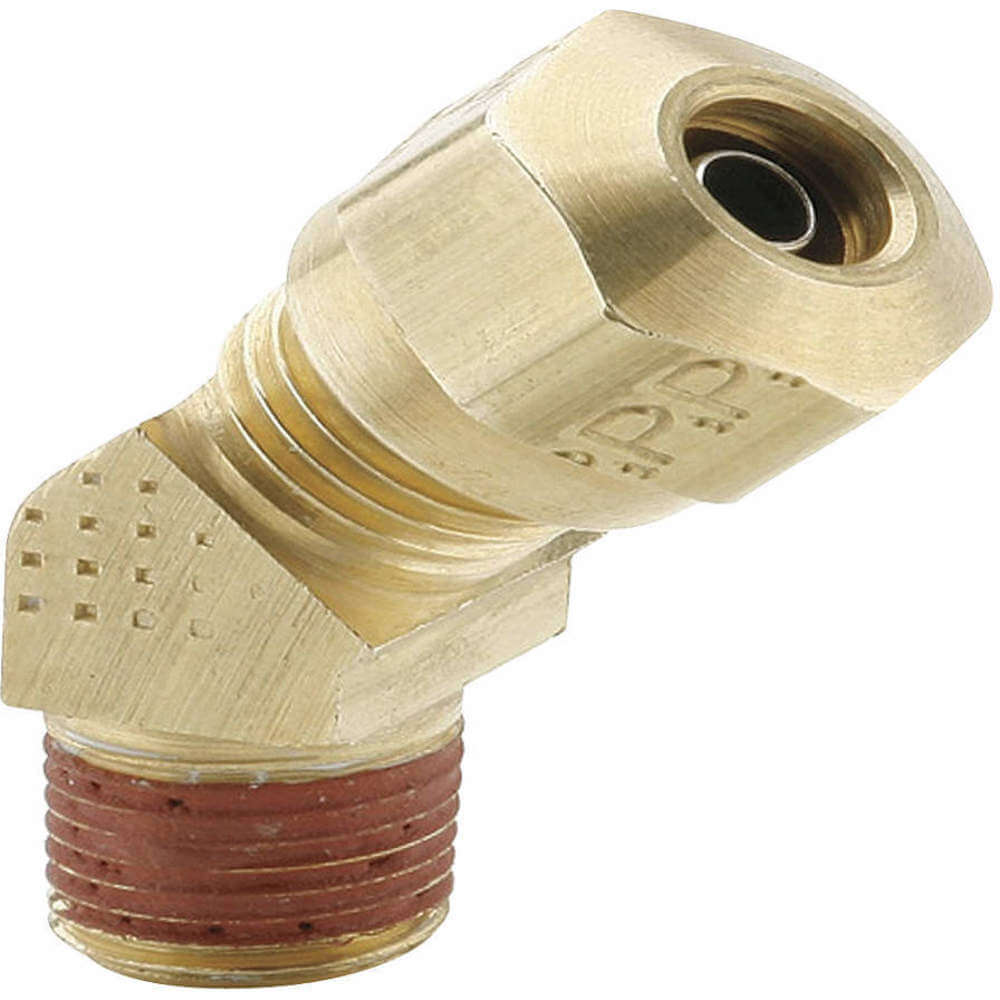

PARKER VS279NTA-4-2 Air Brake Fitting, 1/4 Inch Outside Diameter, Brass
Item: AA3BDEModel: VS279NTA-4-2Cross Ref: 11G321
7 In Stock
Ships within 2 days via
10.00% off
€11.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Brake Fitting |
| Application | Heavy Duty Truck, Trailer, Mobile |
| Body Material | Brass |
| Compatible Fitting Brands | NTA |
| Compatible Tube Material | Nylon |
| Configuration Sub-type | Male Elbow 45° |
| Configuration Type | Tube To Male |
| Connection | Tube x MNPT |
| Connection Type | MNPT x Tube |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1/8" |
| Includes Pre-applied Thread Sealant | Yes |
| Length | 0.81" |
| Material | Brass |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 93°C |
| Max. Operating Temp. | 93 Deg C |
| Maximum Operating Temperature | 200°F |
| Min. Operating Temp. | -40°C |
| Minimum Operating Temperature | 40°F |
| Nut Material | Brass |
| Overall Length | 13/16" |
| Pipe Size | 1/8" |
| Pressure | 150 psi |
| Pressure Range | 0 psi to 150 psi |
| Product Datasheet | parker-vs279nta-4-2.pdf |
| Sae Reference | SAE 100302 BA |
| Series | AIR BRAKE NTA Series |
| Shape | 45° Elbow |
| Sleeve Material | Brass |
| Specific Application | Air Brakes, Air Tanks, Air Ride, Sliders, Tire Inflation, Primary And Secondary, Air Lines, Cab Controls |
| Specific Fitting Angle | 45° |
| Specific Fitting Shape | Elbow Adapter |
| Style | Tube To Pipe |
| System Of Measurement | Imperial |
| Temp. Range | -40°F to +200°F |
| Thread 1 Size | 1/8" |
| Thread 1 Type | NPT |
| Thread Sealant Type | Vibra Seal 516 |
| Thread Size | 7/16"-24 |
| Thread Size B | 7/16"-24 |
| Tube Outside Dia. | 1/4" |
| Tube Size | 1/4" |
| Type | Compression |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.52 |
| Ship length (cm) | 2.06 |
| Ship width (cm) | 1.52 |
| HS code | 7412200035 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pipe Size | Tube Size | Fitting Side A Tube Outer Diameter | Fitting Side B Pipe Size | Thread Size B | Overall Length | Tube Outside Dia. | Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| VS279NTA-4-4 | 1/4" | 1/4" | 1/4" | 1/4" | 7/16"-24 | 15/16" | 1/4" | Tube x MNPT | €14.13 | |
| VS279NTA-6-2 | 1/8" | 3/8" | 3/8" | 1/8" | 17/32"-24 | 1 5/32" | 3/8" | Tube x MNPT | €22.96 | |
| VS279NTA-6-4 | 1/4" | 3/8" | 3/8" | 1/4" | 17/32"-24 | 1 5/32" | 3/8" | Tube x MNPT | €12.21 | |
| VS279NTA-6-6 | 3/8" | 3/8" | 3/8" | 3/8" | 17/32"-24 | 1 7/32" | 3/8" | Tube x MNPT | €14.13 | |
| VS279NTA-6-8 | 1/2" | 3/8" | 3/8" | 1/2" | 17/32"-24 | 1 1/4" | 3/8" | Tube x MNPT | €24.61 | |
| VS279NTA-8-4 | 1/4" | 1/2" | 1/2" | 1/4" | 11/16"-20 | 1 3/8" | - | Tube x MNPT | €24.95 | |
| VS279NTA-8-6 | 3/8" | 1/2" | 1/2" | 3/8" | 11/16"-20 | 1 3/8" | - | Tube x MNPT | €18.38 |
