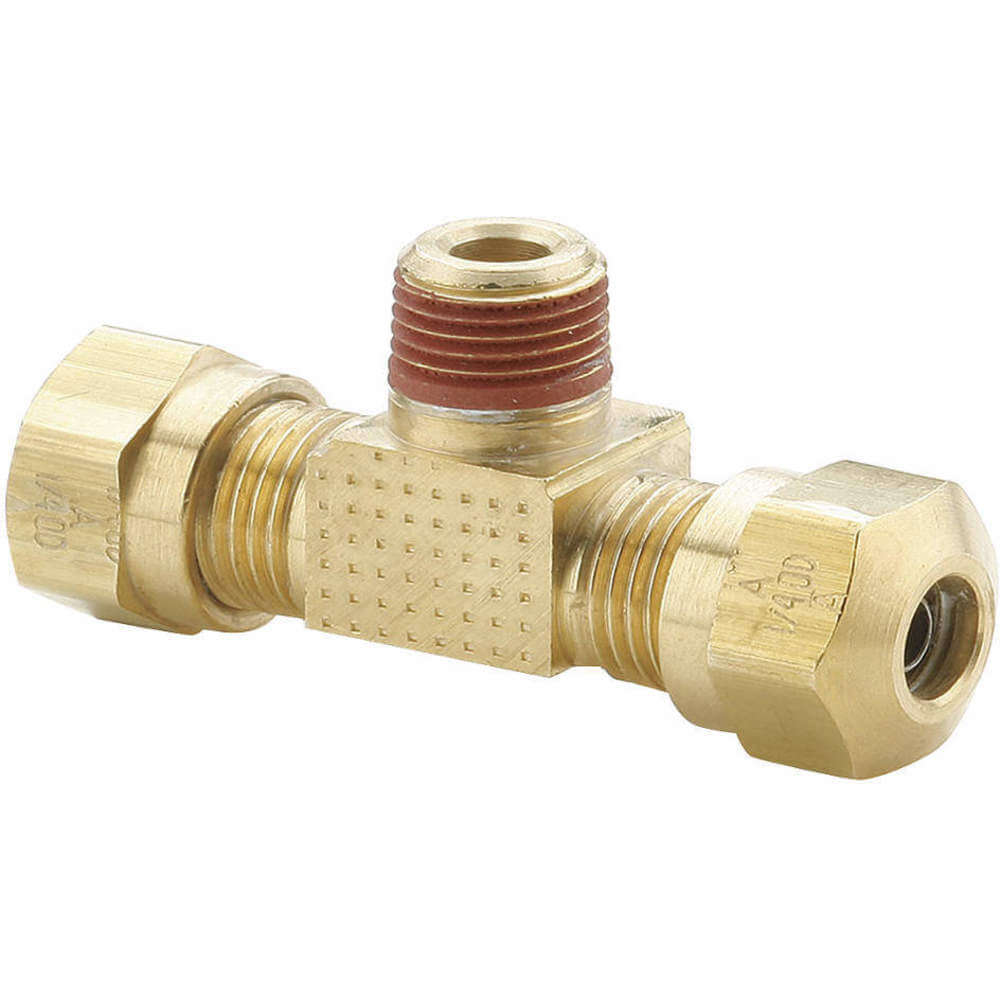

PARKER VS272NTA-8-8 Air Brake Fitting, 1/2 Inch Outside Diameter, Brass
Item: AA3BCWModel: VS272NTA-8-8Cross Ref: 11G312
7 In Stock
Ships within 2 days via
10.00% off
€51.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Brake Fitting |
| Application | Heavy Duty Truck, Trailer, Mobile |
| Body Material | Brass |
| Compatible Tube Material | Nylon, Stainless Steel |
| Configuration Sub-type | Male Branch Tee |
| Configuration Type | Tube To Male |
| Connection | Tube x Tube x MNPT |
| Connection Type | Tube x Tube x MNPT |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/2" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1/2" |
| Fitting Side C Connection Type | Compression |
| Fitting Side C Tube Outer Diameter | 1/2" |
| Includes Pre-applied Thread Sealant | Yes |
| Length | 3.1" |
| Material | Brass |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 93 Deg C |
| Max. Operating Temp. | 93°C |
| Maximum Operating Temperature | 200°F |
| Min. Operating Temp. | -40°C |
| Minimum Operating Temperature | 40°F |
| Nut Material | Brass |
| Overall Length | 3 3/32" |
| Pipe Size | 1/2" |
| Pressure Range | 0 psi to 150 psi |
| Product Datasheet | parker-vs272nta-8-8.pdf |
| Sae Reference | SAE 100425 BA |
| Series | AIR BRAKE NTA Series |
| Shape | Branch Tee |
| Sleeve Material | Brass |
| Specific Application | Air Brakes, Air Tanks, Air Ride, Sliders, Tire Inflation, Primary And Secondary, Air Lines, Cab Controls |
| Specific Fitting Shape | Adapter Tee |
| Style | Tube To Pipe |
| System Of Measurement | Inch |
| Temp. Range | -40°F to +200°F |
| Thread 1 Size | 1/2" |
| Thread 1 Type | NPT |
| Thread Sealant Type | Vibra Seal 516 |
| Thread Size | 11/16"-20 |
| Thread Size A | 11/16"-20 |
| Thread Size B | 11/16"-20 |
| Tube Size | 1/2" |
| Type | Compression |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 7.86 |
| Ship width (cm) | 3.81 |
| HS code | 7419995010 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pipe Size | Tube Size | Max. Operating Temp. | Min. Operating Temp. | Max. Operating Pressure | Connection Type | Temp. Range | Compatible Tube Material | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VS272NTA-3-2 | 1/8" | 3/16" | 93°C | -40°C | 150 psi | Tube x Tube x MNPT | -40°F to +200°F | Nylon, Stainless Steel | 1 | €114.41 | |
| VS272NTA-4-2 | 1/8" | 1/4" | 93°C | -40°C | 150 psi | - | -40°F to +200°F | Nylon, Stainless Steel | 1 | €19.90 | |
| VS272NTA-4-4 | 1/4" | 1/4" | 93°C | -40°C | 150 psi | Tube x Tube x MNPT | -40°F to +200°F | Nylon, Stainless Steel | 1 | €45.55 | |
| VS272NTA-6-2 | 1/8" | 3/8" | 93°C | -40°C | 150 psi | MNPT x Tube x Tube | -40°F to +200°F | Nylon, Stainless Steel | 1 | €25.41 | |
| VS272NTA-6-4 | 1/4" | 3/8" | 93°C | -40°C | 150 psi | Tube x Tube x MNPT | -40°F to +200°F | Nylon, Stainless Steel | 1 | €21.08 | |
| VS272NTA-6-4-4 | 1/4" | 1/4" | 93°C | -40°C | 150 psi | Tube x Tube x MNPT | -40°F to +200°F | Nylon, Stainless Steel | 1 | €29.46 | |
| VS272NTA-6-6 | 3/8" | 3/8" | 93°C | -40°C | 150 psi | - | -40°F to +200°F | Nylon, Stainless Steel | 1 | €24.15 |
