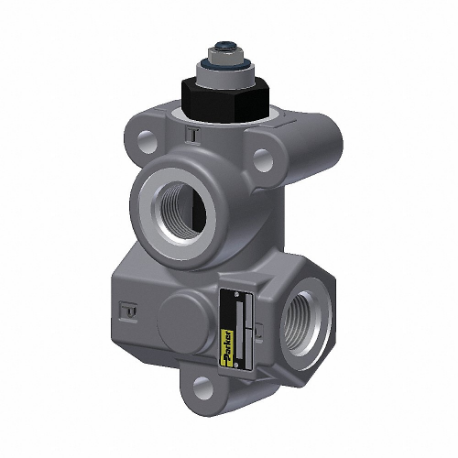

PARKER RPL-12-A GRESEN Pressure Relief Valve, 0 to 5000 PSI, #12 SAE Port Size, 60 GPM Max. Flow, Graphite
Item: CT7JTKModel: RPL-12-ACross Ref: 38D923
7 In Stock
Ships within 2 days via
10.00% off
€563.82 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Relief Valve |
| Actuation Mechanism | Pressure |
| Adjustment Method | Screw |
| Body Material | Cast Iron |
| Fluid Service | Oil |
| Height | 6 1/2" |
| Includes Seals | Yes |
| Length | 4" |
| Max. Flow Rate | 60 GPM |
| Maximum Pressure | 5000 psi |
| Maximum Pressure Setting | 2000 psi |
| Minimum Pressure | 0 psi |
| Mounting | Inline |
| Operating Temperature - Maximum | 200°F |
| Operating Temperature - Minimum | -40°F |
| Overall Height | 166.7" |
| Overall Length | 85.9" |
| Overall Width | 2 17/25" |
| Port Connections | Inlet |
| Preset Pressure Settings | 2500 psi |
| Pressure Range (hydraulic Valves) | 0 psi to 5000 psi |
| Seal Material | Nitrile |
| Series | RPL Series |
| Valve Control | Pressure Relief |
| Valve Port Thread Type | SAE |
| Valve Type | Ball |
| Width | 2 1/2" |
Shipping Info:
| Ship weight (kg) | 2.68 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 16.51 |
| Country of Origin | US |
Product Variants
| Product | Model | Body Material | Valve Type | Max. Flow Rate | Pressure Range (hydraulic Valves) | Preset Pressure Settings | Valve Port Type | Seal Material | Valve Port Thread Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
R4V065B110A1 | Cast Iron | Relief | - | 100 psi to 1532 psi | - | - | Nitrile | SAE | €2,624.41 | |
|
R4V065B310A1 | Cast Iron | Relief | 53 GPM | 100 psi to 3045 psi | - | - | Nitrile | SAE | €2,624.41 | |
|
R4V065B510A1 | Cast Iron | Relief | 53 GPM | 100 psi to 5075 psi | - | - | Nitrile | SAE | €2,624.41 | |
 |
647B-2-1/2-2 | Stainless Steel | Poppet | 10 GPM | 10 psi to 50 psi | 50 psi | NPT | - | - | €6,354.19 | |
 |
637B-2-1/2-2 | Brass | Soft Seat | 10 GPM | 10 psi to 50 psi | 35 psi | NPT | - | - | €1,300.26 | |
|
647B-2-1/4-2 | Stainless Steel | Poppet | 4 GPM | 10 psi to 50 psi | 50 psi | NPT | - | - | €4,258.95 | |
|
637B-2-1/4-2 | Brass | Soft Seat | 4 GPM | 10 psi to 50 psi | 35 psi | NPT | - | - | €1,171.05 |
