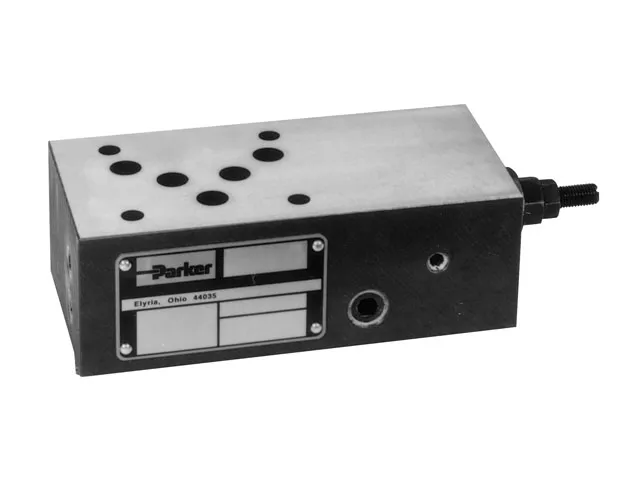

PARKER RM2PT17SN Relief Valve, 14 Gpm Max. Flow, 5000 Psi Max. Pressure
Item: CT7KAFModel: RM2PT17SNCross Ref: 4DJY3
7 In Stock
Ships within 2 days via
10.00% off
€655.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relief Valve |
| Adjustable Pressure Range | 150 psi to 2500 psi |
| Adjustment Method | Slotted Screw |
| Controlled Ports | Relief P To T |
| Flow Rate - Minimum | 1 GPM |
| For Use With | D03 Valves |
| Height | 1.57" |
| Includes Seals | Yes |
| Length | 6.49" |
| Max. Flow | 14 GPM |
| Max. Pressure | 5000 psi |
| Maximum Pressure | 2500 psi |
| Nfpa Size | D03 |
| Operating Temperature - Maximum | 100°F |
| Operation Type | Pressure Port To Tank |
| Overall Height | 1.57" |
| Overall Length | 6.49" |
| Overall Width | 1.77" |
| Pressure Range | 150 psi to 2500 psi |
| Pressure Setting - Maximum | 2500 psi |
| Pressure Setting - Minimum | 150 psi |
| Seal Material | Buna N |
| Seal Type | Nitrile O Ring |
| Series | RM Series |
| Subplate Pattern | Nfpa D03 (Cetop 3, Ng 6) |
| Type | Hydraulic Relief Valve |
| Valve Control | Pressure Relief |
| Width | 1.77" |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 4.5 |
| Ship length (cm) | 16.48 |
| Ship width (cm) | 3.99 |
| Country of Origin | US |
Product Variants
| Product | Model | Type | Pressure Range | Height | Price | |
|---|---|---|---|---|---|---|
|
RM2PT25SN | Pressure Port To Tank | 150 psi to 3500 psi | 1.57" | €697.19 |
