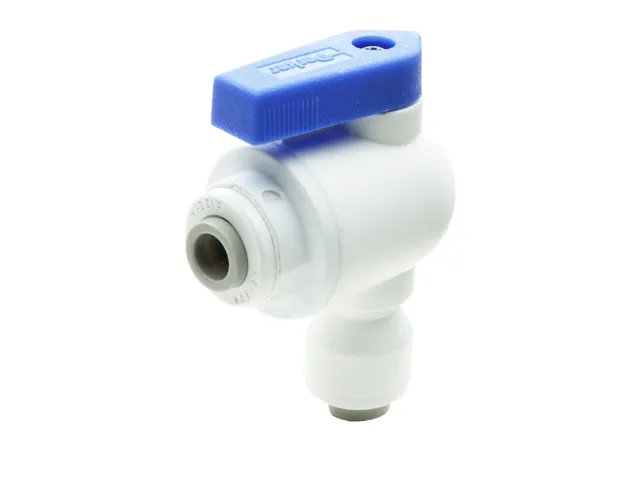

PARKER PP4VEU4-MG Ball Valve, 1/4 Inch Outside Diameter, Polypropylene, 90 Deg Elbow
Get it by Tuesday, Dec 23
€16.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| Application | Water, Beverages, Food, Co2 |
| Ball Material | Polysulfone |
| Body Material | Polypropylene |
| Configuration Sub-type | Union Elbow |
| Configuration Type | Tube to Tube |
| Fitting Side B Tube Outer Dia. | 1/4" |
| Flow Dia. | 0.19" |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 107 Deg C |
| Max. Operating Temp. | 107°C |
| Min. Operating Temp. | -18°C |
| Operating Temp. Range | 0°F to 225°F |
| Outer Diameter 1 | 1/4" |
| Pressure Range | 0 psi to 150 psi |
| Seal Material | EPDM |
| Seat Material | EPDM |
| Series | POLYPROPYLENE BALL VALVE Series |
| Shape | Right Angled Elbow |
| Specific Application | Meets Fda And Nsf-51 Requirements |
| Style | Tube To Tube |
| System Of Measurement | Inch |
| Tube O.d. | 1/4" |
| Valve Type | Ball Valve |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 0.64 |
| Ship length (cm) | 12.78 |
| Ship width (cm) | 2.86 |
| Country of Origin | US |
Product Variants
| Product | Model | Ball Material | Connection Type | Overall Length | Shape | Tube O.d. | Body Style | Tube Size | Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PP4VUC6-MG | PSU | Tube x Tube | 2.55" | Union | 1/4" | Inline | 1/4" x 3/8" | - | €18.44 | |
 |
LFPP4VMC4 | PSU | Tube x MNPT | 2.4" | Connector | 1/4" | Inline | 1/4" | 1/4" | €12.66 | |
|
LFPP4VMC6 | PSU | Tube x MNPT | 2.4" | Connector | 1/4" | Inline | 1/4" | 3/8" | €14.29 | |
|
LFPP6VMC4 | PSU | Tube x MNPT | 2.51" | Connector | 3/8" | Inline | 3/8" | 1/4" | €15.54 | |
|
LFPP6VMC6 | PSU | Tube x MNPT | 2.51" | Connector | 3/8" | Inline | 3/8" | 3/8" | €13.57 | |
 |
LFPP4VFC2 | PSU | Tube x FNPT | 2.04" | Connector | 1/4" | Inline | 1/4" | - | €15.55 | |
|
LFPP4VFC4 | PSU | Tube x FNPT | 2.27" | Connector | 1/4" | Inline | - | 1/4" | €17.81 |
