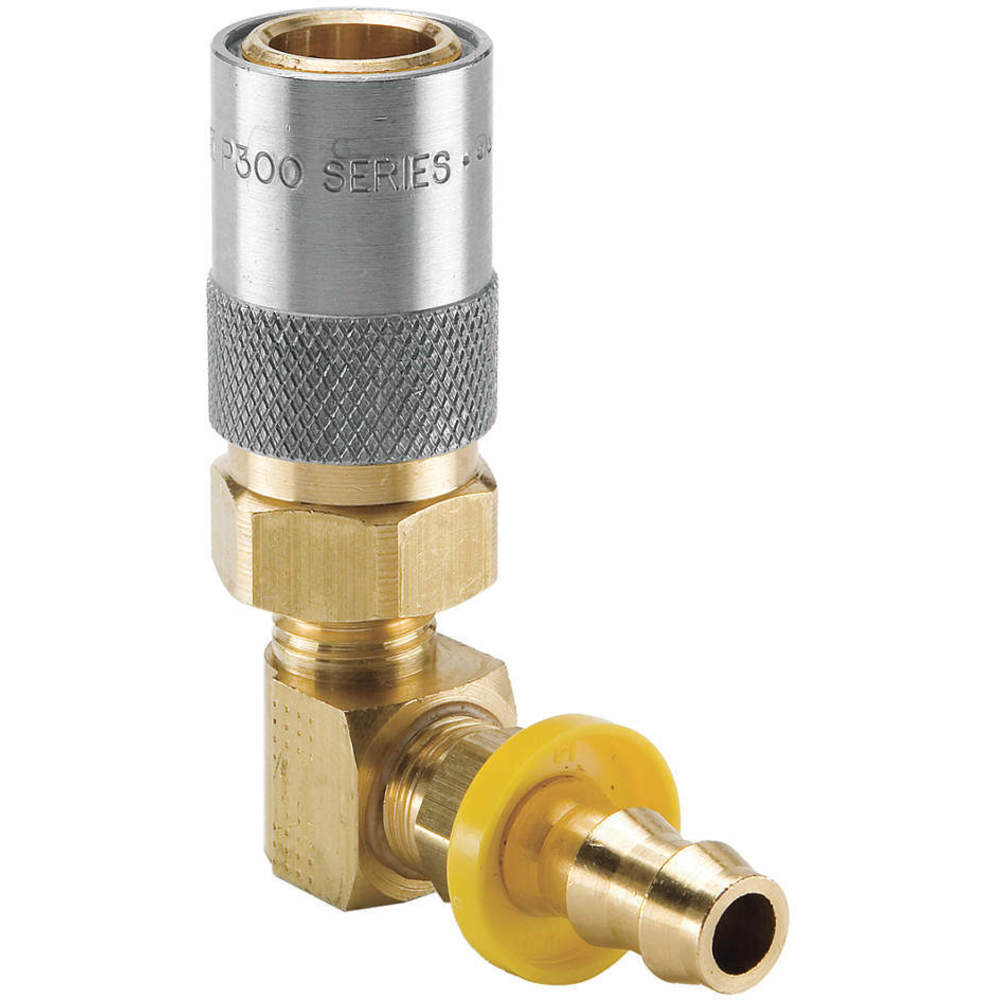

PARKER PC216AV-BP Quick Coupling, 1/4 Inch Size, Mold Coolant
Item: AG6UDHModel: PC216AV-BPCross Ref: 48C254
7 In Stock
Ships within 2 days via
10.00% off
€52.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Coupler |
| Bearing Material | Stainless Steel |
| Body Material | Brass |
| Body Size | 1/4" |
| Connection Type | Push Lok Hose Barbed |
| Coupler Body Material | Brass |
| Coupling Component | Socket |
| Coupling Locking Type | Sleeve |
| Coupling Size | 1/4" |
| Finish/coating | Plain |
| Fitting Type | Male Push Lock Hose Barb |
| Flow Rate | 3 GPM |
| Gender | Male |
| Grade | Grade 440 |
| Hose Fitting Gender | Male |
| Hose Inside Dia. | 3/8" |
| Includes Bearing | Yes |
| Includes Shut Off | No |
| Includes Valve | No |
| Locking Mechanism | Ball |
| Locking Type | Locking Balls |
| Max. Flow Rate | 11.36 LPM |
| Max. Operating Pressure | 200 psi |
| Max. Operating Temp. | 400 Deg F |
| Max. Operating Temp. | 400°F |
| Max. Outside Dia. | 9/16" |
| Max. Pressure | 200 psi |
| Max. Working Pressure | 200 psi |
| Max. Working Pressure @ 70 F | 200 psi |
| Min. Operating Temp. | -15°F |
| Overall Length | 1 13/16" |
| Plating | Zinc On Sleeve |
| Seal Material | Fluorocarbon, Silicone |
| Seal Type | Tubular Valve |
| Shut Off | Poppet Shut Off |
| Sleeve Material | Steel |
| Style | Poppet |
| Temp. Range | -15°F to +400°F |
| Valve Type | Non Valved |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 1.43 |
| Ship length (cm) | 4.56 |
| Ship width (cm) | 6.35 |
| HS code | 8481801095 |
| Country of Origin | US |
Product Variants
| Product | Model | Connection Type | Coupling Size | Valve Type | Body Size | Temp. Range | Sleeve Material | Seal Type | Min. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PC204 | Hose Barb | 1/4" | Non Valved | 1/4" | -20°F to +400°F | Brass | Interface | -20°F | €34.99 | |
 |
PC204-BP | Push Lok Hose Barbed | 1/4" | Non Valved | 1/4" | -20°F to +400°F | Brass | Interface | -20°F | €53.36 | |
|
PC206 | Hose Barb | 1/4" | Non Valved | 1/4" | -20°F to +400°F | Brass | Interface | -20°F | €33.01 | |
 |
PC214 | Hose Barb | 1/4" | Non Valved | 1/4" | -20°F to +400°F | Brass | Interface | -20°F | €40.28 | |
|
PC216 | Hose Barb | 1/4" | Non Valved | 1/4" | -20°F to +400°F | Brass | Interface | -20°F | €42.26 | |
 |
PC216-BP | Push Lok Hose Barbed | 1/4" | Non Valved | 1/4" | -20°F to +400°F | Brass | Interface | -20°F | €53.27 | |
|
PC306 | Hose Barb | 3/8" | Non Valved | 3/8" | -20°F to +400°F | Brass | Interface | -20°F | €44.35 |
