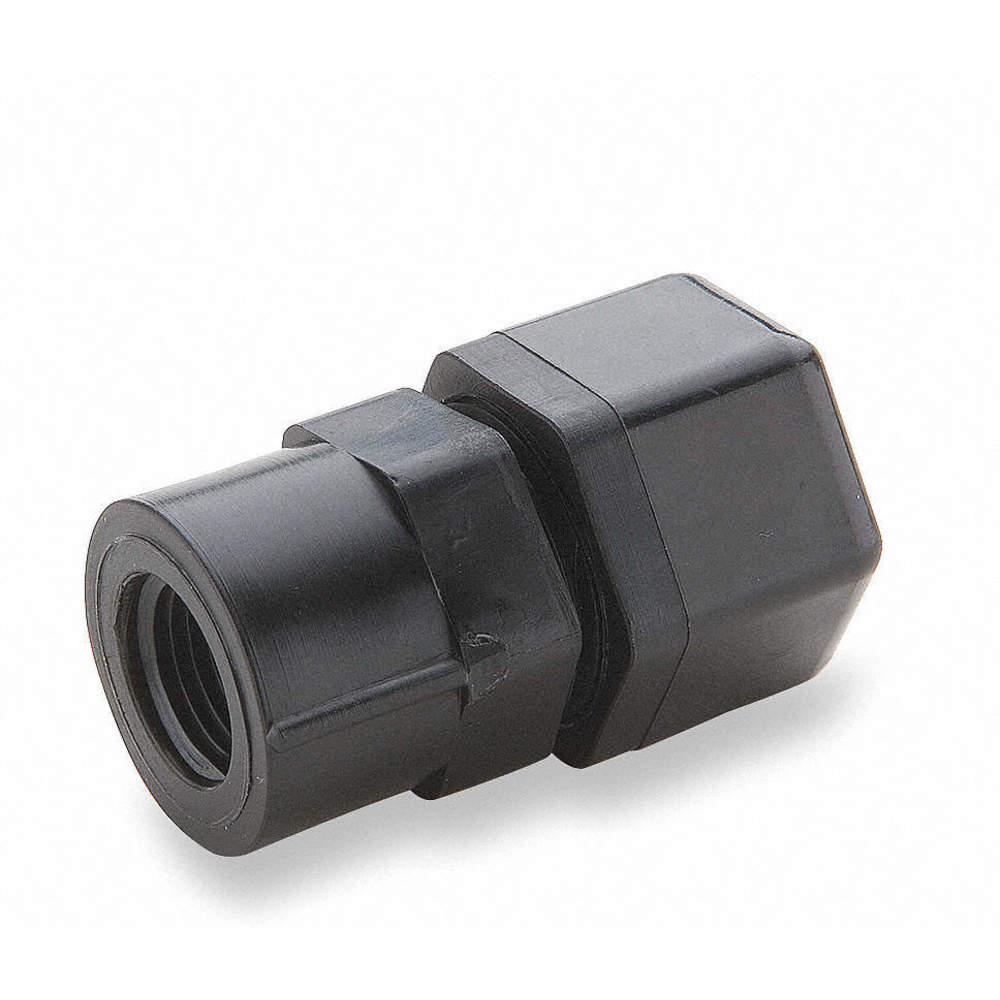

PARKER P8FC8 Compression Fitting, 1/2 Inch Outside Diameter, Polypropylene
Item: AC4GRAModel: P8FC8Cross Ref: 2ZTF8
7 In Stock
Polypropylene
150 psi
1/2"
Ships within 2 days via
10.00% off
€9.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Fitting |
| Application | Water, Beverages, Food, Co2 |
| Basic Material | Plastic |
| Basic Pipe Fitting Material | Plastic |
| Basic Pipe Fitting Shape | Adapter |
| Body Material | Polypropylene |
| Color | Black |
| Compatible Tube Material | Glass, Thermoplastic |
| Compression Thread Size | 1/2" |
| Configuration Sub-type | Female Connector |
| Configuration Type | Tube To Female |
| Connection Type | FNPT x Compression |
| Fitting Material | Polypropylene |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 1/2" |
| Fitting Side B Connection Type | FNPTF |
| Fitting Side B Pipe Size | 1/2" |
| Grade | Grade 302 |
| Hex Size | 1" |
| Material | Polypropylene |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 100 Deg C |
| Max. Operating Temp. | 100°C |
| Max. Pressure | 150 psi |
| Maximum Operating Temperature | 212°F |
| Min. Operating Temp. | -18°C |
| Minimum Operating Temperature | 0°F |
| Operating Temp. Range | 0°F to 212°F |
| Overall Length | 1 27/32" |
| Pipe Size | 1/2" |
| Ring Material | Stainless Steel |
| Seal Material | Nitrite |
| Series | FAST AND TITE Series |
| Shape | Connector |
| Specific Application | Meets Fda And Nsf-51 Requirements |
| Specific Fitting Shape | Straight Adapter |
| Specific Pipe Fitting Shape | Connector |
| Style | Tube To Female Pipe |
| System Of Measurement | Imperial |
| Temp. Range | 0°F to +212°F |
| Thread 1 Size | 1/2" |
| Thread 1 Type | NPT |
| Tube Size | 1/2" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 4.68 |
| Ship width (cm) | 2.54 |
| HS code | 3917400090 |
| Country of Origin | US |
Product Variants
| Model | Tube Size | Connection Type | Body Material | Max. Operating Temp. | Min. Operating Temp. | Hex Size | Pipe Size | Max. Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| N10FC8 | 1/2" | Compression x FNPT | Nylon | 93°C | -40°C | 1 1/8" | 1/2" | 50 psi | €9.20 | |
| N4FC2 | 1/8" | Compression x FNPT | Nylon | 93°C | -40°C | 11/16" | - | 300 psi | €7.36 | |
| N4FC4 | 1/4" | Compression x FNPT | Nylon | 93°C | -40°C | 11/16" | 1/4" | 300 psi | €6.84 | |
| N6FC4 | 1/4" | Compression x FNPT | Nylon | 93°C | -40°C | 13/16" | 1/4" | 150 psi | €7.40 | |
| N6FC6 | 3/8" | Compression x FNPT | Nylon | 93°C | -40°C | 13/16" | 3/8" | 150 psi | €7.32 | |
| N6FC8 | 1/2" | Compression x FNPT | Nylon | 93°C | -40°C | 13/16" | 1/2" | 150 psi | €10.50 | |
| N8FC6 | 3/8" | FNPT x Compression | Nylon | 93°C | -40°C | 1" | 3/8" | 150 psi | €10.65 |
