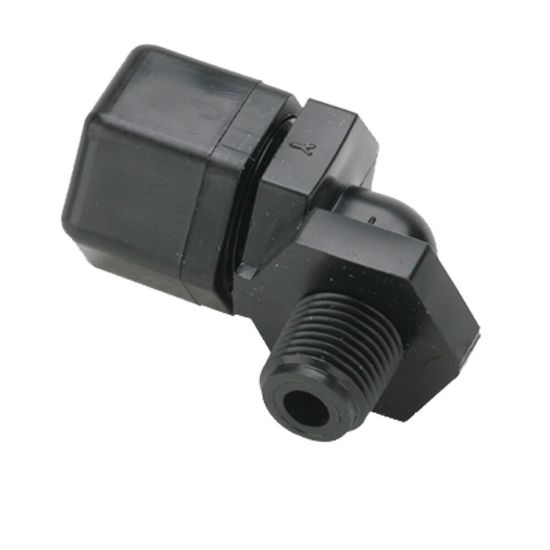

PARKER P5ME4 Male Elbow, 90 Degrees, Polypropylene, 5/16 Inch Size Tube OD, 1/4 Inch Size Pipe Size
Item: CT7HLQModel: P5ME4Cross Ref: 2ZTA4
7 In Stock
Polypropylene
1/4"
5/16"
Ships within 2 days via
10.00% off
€7.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Elbow |
| Application | Water, Beverages, Food, Co2 |
| Basic Pipe Fitting Material | Plastic |
| Basic Pipe Fitting Shape | Elbow |
| Color | Black |
| Compatible Tube Material | Glass, Thermoplastic |
| Configuration Sub-type | Male Elbow 90° |
| Configuration Type | Tube To Male |
| Fitting Material | Polypropylene |
| Fitting Side A Tube Outer Diameter | 5/16" |
| Fitting Side B Connection Type | MNPTF |
| Fitting Side B Pipe Size | 1/4" |
| Hex Size | 3/4" |
| Length | 1.062" |
| Material | Polypropylene |
| Max. Operating Pressure | 300 psi |
| Maximum Operating Temperature | 212°F |
| Mfr. Series | FAST & TITE |
| Minimum Operating Temperature | 0°F |
| Operating Temp. Range | 0°F to 212°F |
| Outer Dia. 1 | 5/16" |
| Overall Length | 1 1/16" |
| Pipe Size | 1/4" |
| Product Datasheet | parker-p5me4.pdf |
| Seal Material | Nitrite |
| Series | FAST AND TITE Series |
| Specific Application | Meets Fda And Nsf-51 Requirements |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| System Of Measurement | Inch |
| Thread 1 Size | 1/4" |
| Thread 1 Type | NPT |
| Tube Outside Dia. | 5/16" |
| Tube Size | 5/16" |
Shipping Info:
| Ship height (cm) | 0.79 |
| Ship length (cm) | 2.7 |
| Ship width (cm) | 1.91 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Tube Size | Max. Operating Pressure | Pipe Size | Hex Size | Min. Operating Temp. | Max. Operating Temp. | Connection Type | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

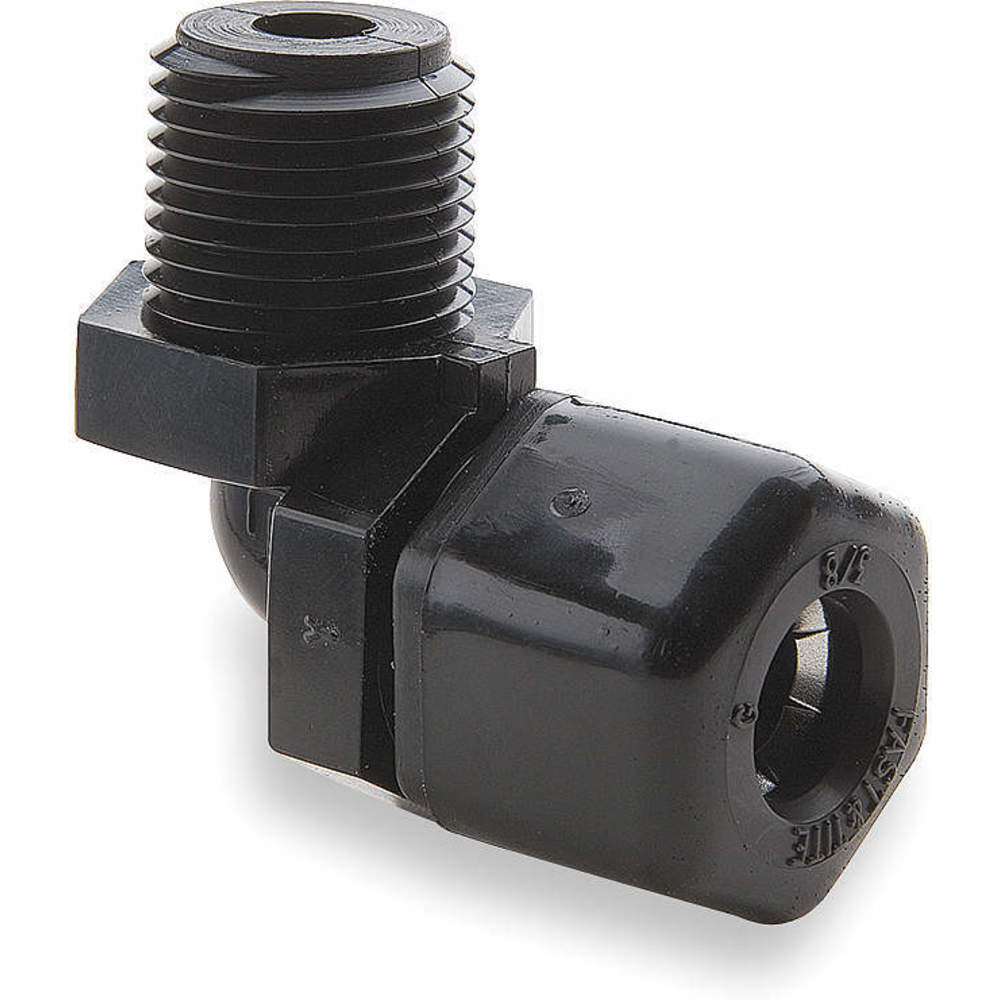

P6ME12 | 3/8" | 150 psi | 3/4" | 1 3/16" | -18°C | 100°C | Compression x MNPT | Polypropylene | €7.78 | |
 |

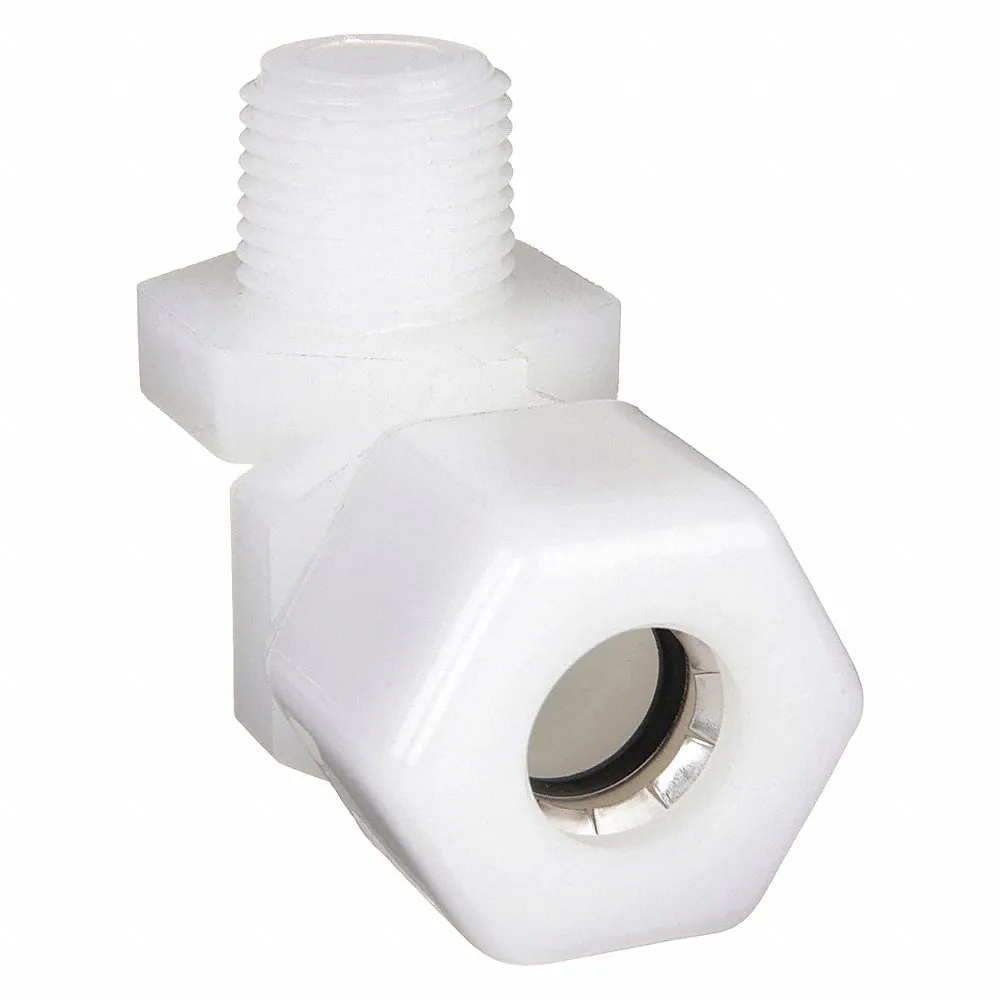

N4ME4 | 1/4" | 300 psi | 1/4" | 3/4" | -40°C | 93°C | Tube To Pipe | Nylon | €5.29 | |
 |
P8ME6 | 1/2" | 150 psi | 3/8" | 1 1/16" | -18°C | 100°C | Tube To Pipe | Polypropylene | €7.98 | |
|
P8ME8 | 1/2" | 150 psi | 1/2" | 1 1/16" | -18°C | 100°C | Tube To Pipe | Polypropylene | €8.41 | |
 |
P8ME12 | 1/2" | 150 psi | 3/4" | 1 1/8" | -18°C | 100°C | Compression x MNPT | Polypropylene | €17.86 | |
|
P6ME6 | 3/8" | 150 psi | 3/8" | 7/8" | -18°C | 100°C | Tube To Pipe | Polypropylene | €6.64 | |
|

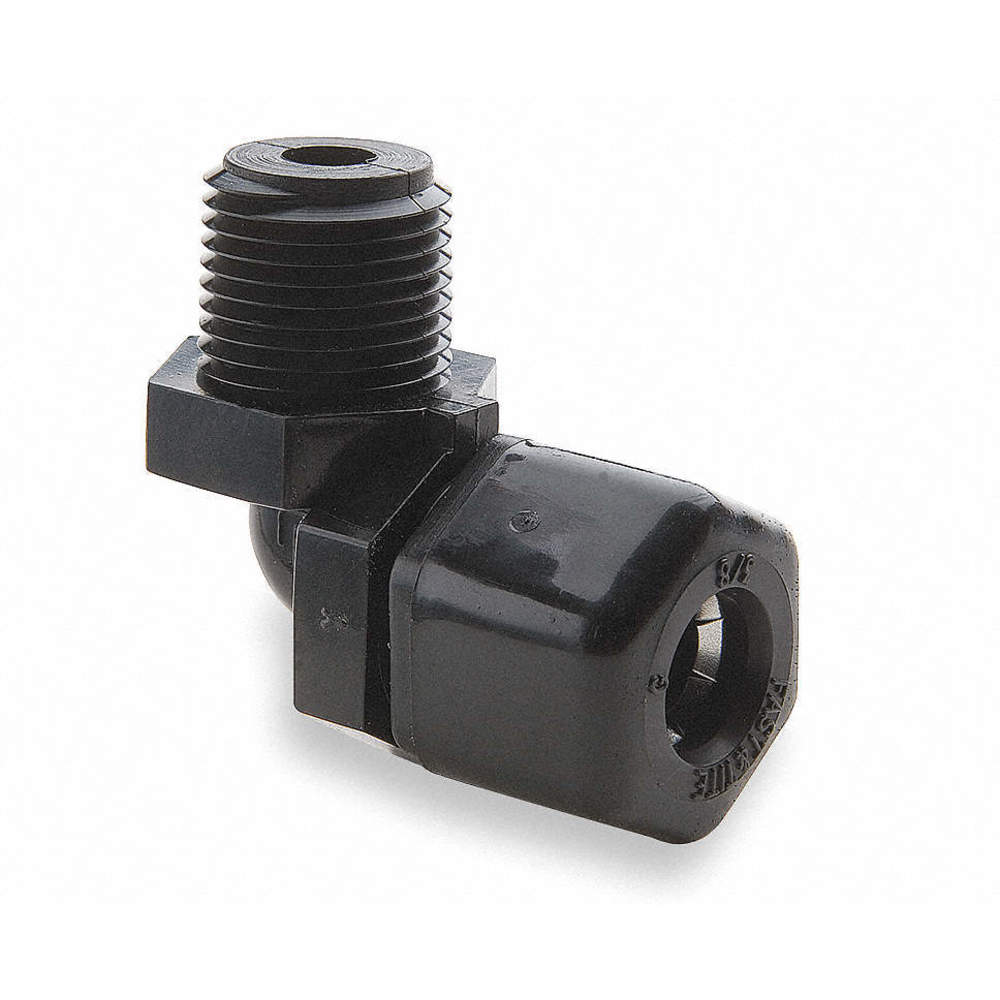

P4ME2 | 1/4" | 300 psi | 1/8" | 3/4" | -18°C | 100°C | Compression x MNPT | Polypropylene | €5.65 |
