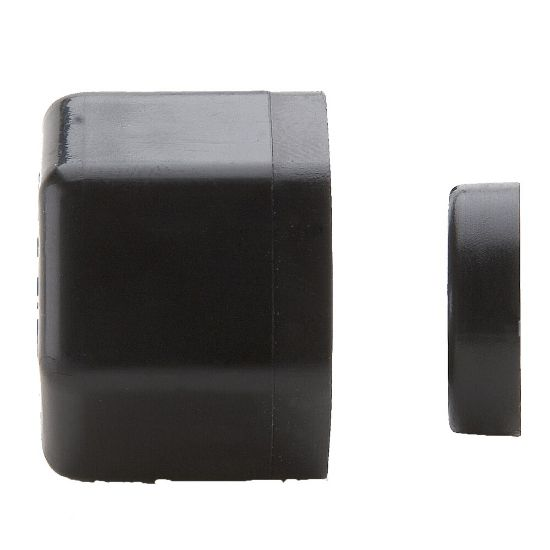

PARKER P4NS Nut and Spacer Set, Polypropylene, 1/4 Inch Tube OD, Compression, Fast & Tite
Item: CT7HVWModel: P4NSCross Ref: 2ZRZ2
7 In Stock
Ships within 2 days via
10.00% off
€1.40 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spacer Set |
| Application | Water, Beverages, Food, Co2 |
| Basic Pipe Fitting Material | Plastic |
| Basic Pipe Fitting Shape | Nut |
| Color | Black |
| Compatible Tube Material | Thermoplastic |
| Compatible Tube Outer Dia. | 1/4" |
| Configuration Sub-type | Nut And Spacer |
| Configuration Type | Auxiliary |
| Connection Type | Compression |
| Fitting Connection Type | Compression |
| Fitting Material | Polypropylene |
| Material | Polypropylene |
| Max. Operating Pressure | 300 psi |
| Maximum Operating Temperature | 212°F |
| Mfr. Series | FAST & TITE |
| Minimum Operating Temperature | 0°F |
| Operating Temp. Range | 0°F to 212°F |
| Outer Diameter 1 | 1/4" |
| Product Datasheet | parker-p4ns.pdf |
| Seal Material | Nitrite |
| Series | FAST AND TITE Series |
| Specific Application | Meets Fda And Nsf-51 Requirements |
| Specific Fitting Shape | Nut And Spacer |
| System Of Measurement | Inch |
| Tube Size | 1/4" |
Shipping Info:
| Ship height (cm) | 0.64 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Tube Size | Max. Operating Pressure | Min. Operating Temp. | Max. Operating Temp. | Application | Color | Material | Compatible Tube Outer Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| P8NS | 1/2" | 150 psi | 0°F | 212°F | Water, Beverages, Food, Co2 | Black | Polypropylene | 1/2" | €2.12 | |
| P6NS | 3/8" | 150 psi | 0°F | 212°F | Water, Beverages, Food, Co2 | Black | Polypropylene | 3/8" | €1.88 | |
| P5NS | 5/16" | 300 psi | 0°F | 212°F | Water, Beverages, Food, Co2 | Black | Polypropylene | 0.312" | €1.32 | |

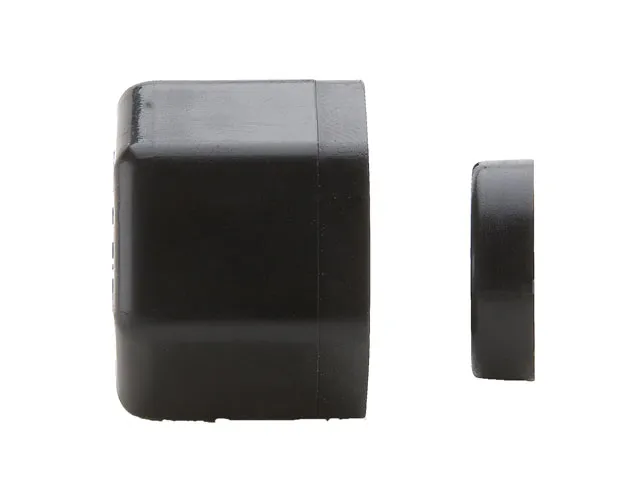

| N5NS | 5/16" | 300 psi | 40°F | 200°F | Air | White | Nylon | 0.312" | €3.11 | |
| N10NS | 5/8" | 50 psi | 40°F | 200°F | Water, Beverages, Food, Co2 | White | Nylon | 5/8" | €4.00 | |
| N8NS | 1/2" | 150 psi | 40°F | - | Water, Beverages, Food, Co2 | White | Nylon | 1/2" | €2.22 | |
| N4NS | 1/4" | 300 psi | 40°F | 200°F | Water, Beverages, Food, Co2 | White | Nylon | 1/4" | €1.65 |
