PARKER P2LAX69111 Manual Valve Lever 1/8 Npt 4 Way
Item: AC9AZWModel: P2LAX69111Cross Ref: 3FEZ8
7 In Stock
Ships within 2 days via
5.00% off
€357.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Air Control Valve |
| Actuator Type | Lever |
| Actuator/return | Lever, Spring |
| Application | Rugged Construction |
| Body Finish | Anodized |
| Body Material | Aluminum |
| Center Condition | Center Exhaust |
| Coefficient Of Volume | 0.5 , 2.7 |
| Coefficient Of Volume(cv) | 0.6 |
| Connection | NPT |
| For Media | Air |
| Max. Flow Rate | 0.6 SCFM |
| Max. Operating Pressure | 232 psi |
| Max. Operating Temp. | 140°F |
| Max. Pressure | 232 psi |
| Min. Operating Temp. | -40°F |
| No. Of Positions | 3 |
| No. Of Ways | 4 |
| Offset Return Type | Detent |
| Operating Temp. | -40°F to +140°F |
| Operator Type | Inline Perpendicular Lever |
| Overall Height | 3 1/4" |
| Overall Length | 4" |
| Overall Width | 1 9/16" |
| Pipe Size | 1/8" |
| Pneumatic Valve Type | Manual, Mechanical |
| Port Inch/bsp | NPT |
| Port Size | 1/2" |
| Port Type | BSPP |
| Product Type | Manual Air Control Valve |
| Return Action | Spring Return |
| Seal Material | Nitrile |
| Series | Viking Xtreme Series |
| Spool Material | Aluminum |
| Supply Pressure | Vacuum to 232 psi |
| Temp. | -40°F to +158°F |
| Valve Passages | 4 Way |
| Valve Port Connection Size | 1/8" |
| Valve Port Connection Type | NPT |
| Valve Positions | 3 Position |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 8.26 |
| HS code | 8481809050 |
| Country of Origin | FR |
Product Variants
| Product | Model | Overall Width | Temp. | Max. Operating Pressure | Valve Port Connection Size | Coefficient Of Volume | Actuator/return | Overall Height | For Media | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

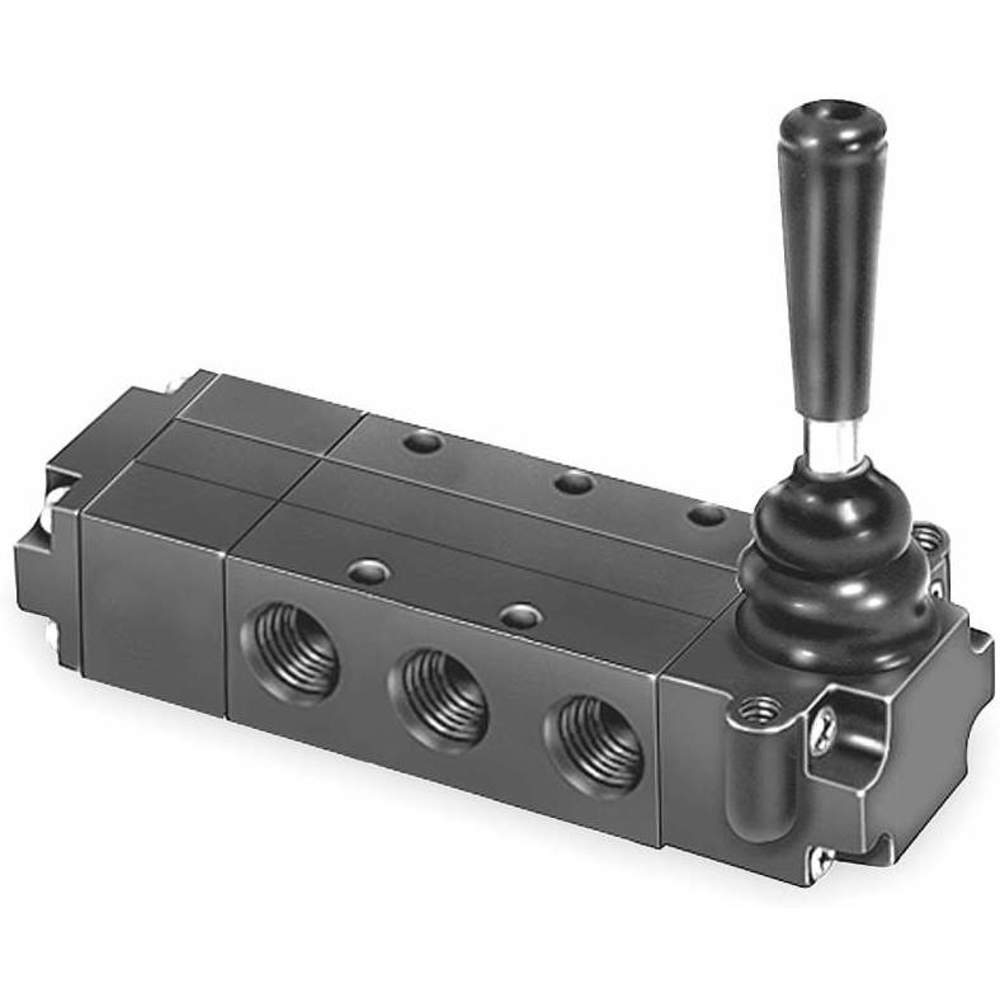

521811000 | 1 1/16" | +32°F to +175°F | 150 psi | 1/4" | 0.83 | Lever, Spring | 4 1/16" | Air | €557.71 | |
|
522811000 | 1 1/16" | +32°F to +175°F | 150 psi | 1/4" | 0.83 | Lever, Spring | 4 1/16" | Air | €585.10 | |
|
529811000 | 1 1/16" | +32°F to +175°F | 150 psi | 1/4" | 0.83 | Lever, Spring | 4 1/16" | Air | €568.05 | |
 |

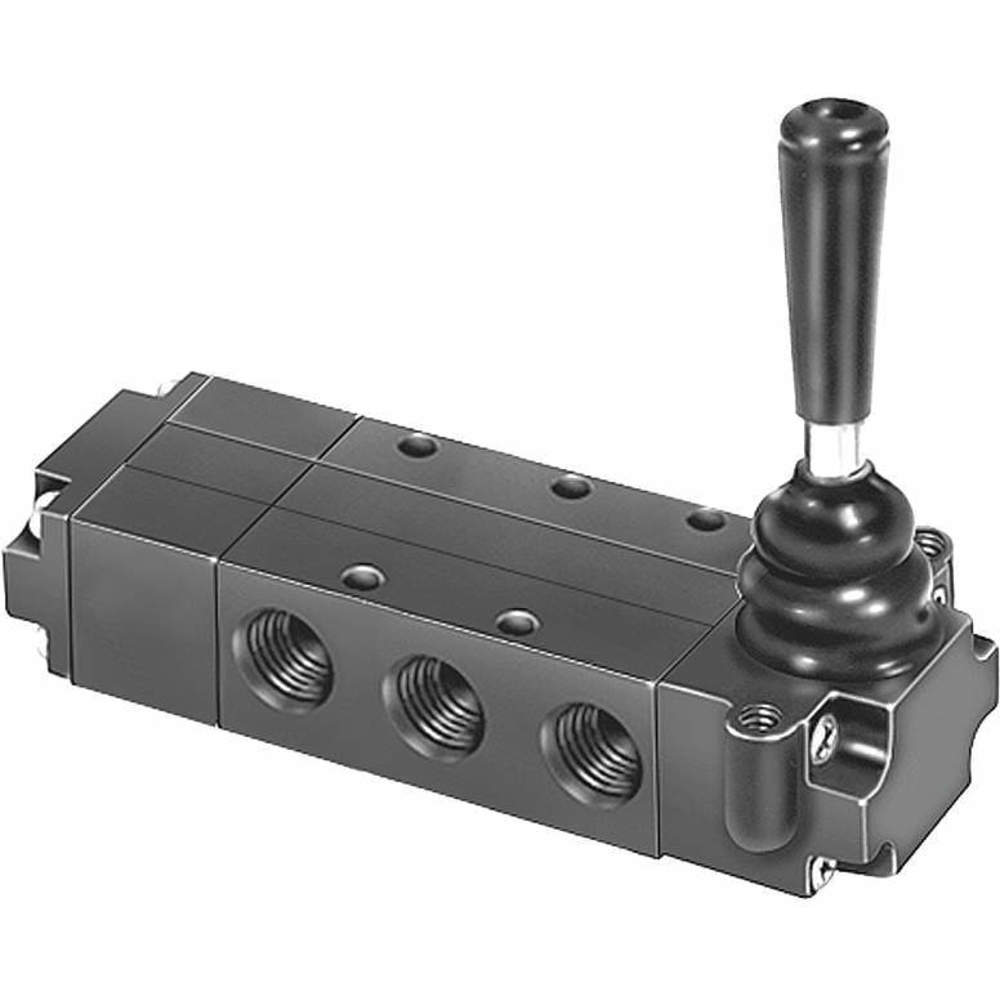

521831000 | 1 1/16" | +32°F to +175°F | 150 psi | 1/4" | 0.83 | Lever, Manual | 4 1/16" | Air | €545.00 | |
|
522831000 | 1 1/16" | +32°F to +175°F | 150 psi | 1/4" | 0.83 | Lever, Manual | 4 1/16" | Air | €575.62 | |
|
529831000 | 1 1/16" | +32°F to +175°F | 150 psi | 1/4" | 0.83 | Lever, Manual | 4 1/16" | Air | €562.43 | |
 |

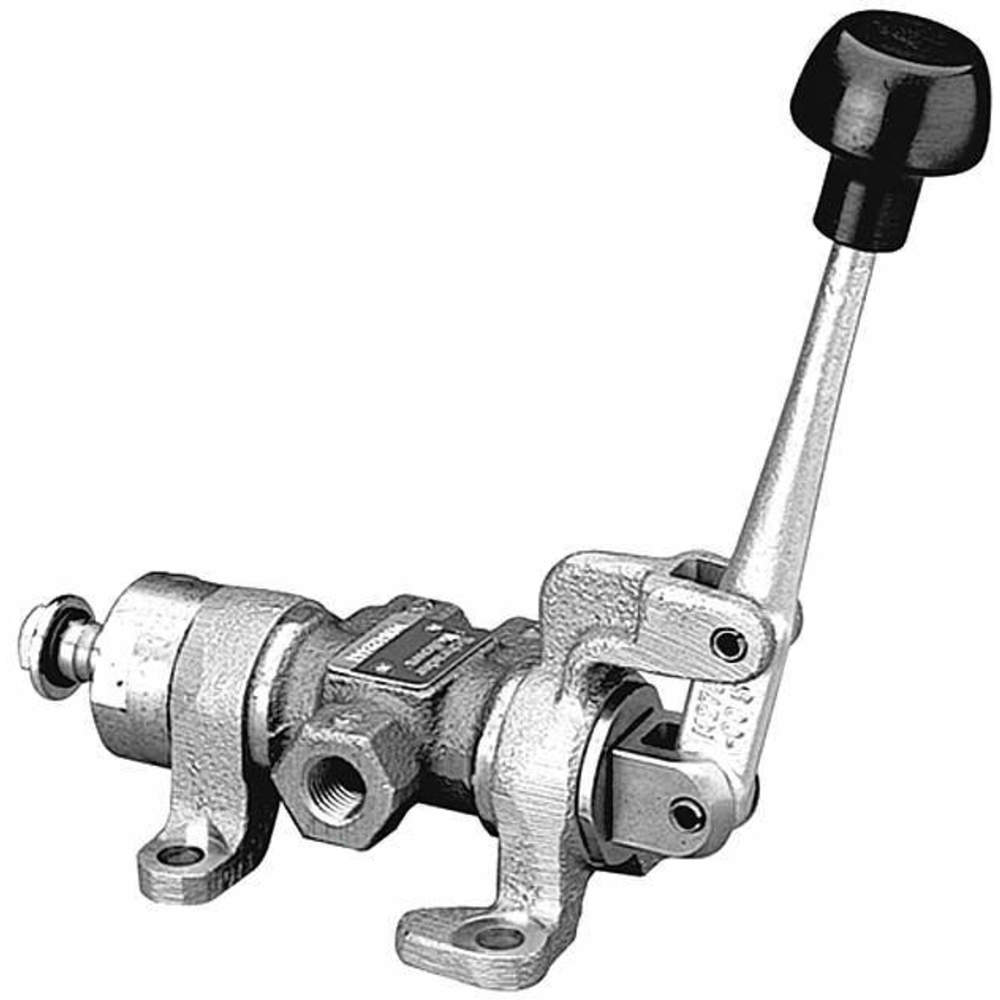

M05435143 | 6 13/16" | -15°F to +200°F | 225 psi | 3/8" | 3.4 | Lever, Detent | 2 1/2" | Air, Hydraulic Oil | €2,233.24 |
