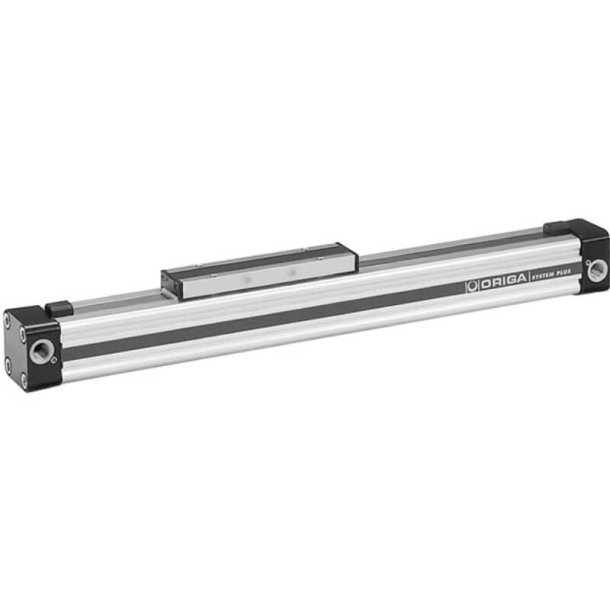

PARKER OSPP630000001473000000000 Pneumatic Actuator
Get it by Monday, Aug 24
€3,550.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pneumatic Actuator |
| Ambient Air Temp. | 14°F to 176°F |
| Ambient Air Temp. For Operation | 14°F to 176°F |
| Application Type | Door Opening System Pick And Place Applications Durability Test Bench Food Processing Packaging, Labeling And Wrapping Systems Pusher, Picker And Gripper Applications Assembly Of A Modular Steering Kit Roll Cleaning Overhead Thrust Cleaning Sorting Machines With ATEX Feeding Cutting |
| Bore Size | 63 mm |
| Chemical Resistance | Corrosion Resistance |
| Connection Type | 2 X 3/8" BSPP, G3/8" Threaded Pneumatic Ports |
| Design | Adjustable Cushions Piston Magnet Std. Lubrication Cushion At Both Ends Left & Right End Pneumatic Port Position 2 Zinc Hardware Repairable Filtered, Non-Lubricated Compress Air As Input Medium, Adjustable Cushions Piston Magnet Std. Lubrication Cushion At Both Ends Left & Right End Pneumatic Port Position 2 Zinc Hardware Repairable Filtered; Non-Lubricated Compress Air As Input Medium |
| Function | Double Acting Rodless Pneumatic Actuator |
| Main Function | Pneumatic Linear Actuator |
| Material | Anodized Aluminium Cylinder Body Anodized Aluminium Piston |
| Max. Air Service Pressure | 116 psig |
| Mounting | Standard Mounting |
| Mounting Mode | Standard Mounting |
| Pressure | 116 psig |
| Shape | Rectangular |
| Stroke Length | 1473 mm |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
