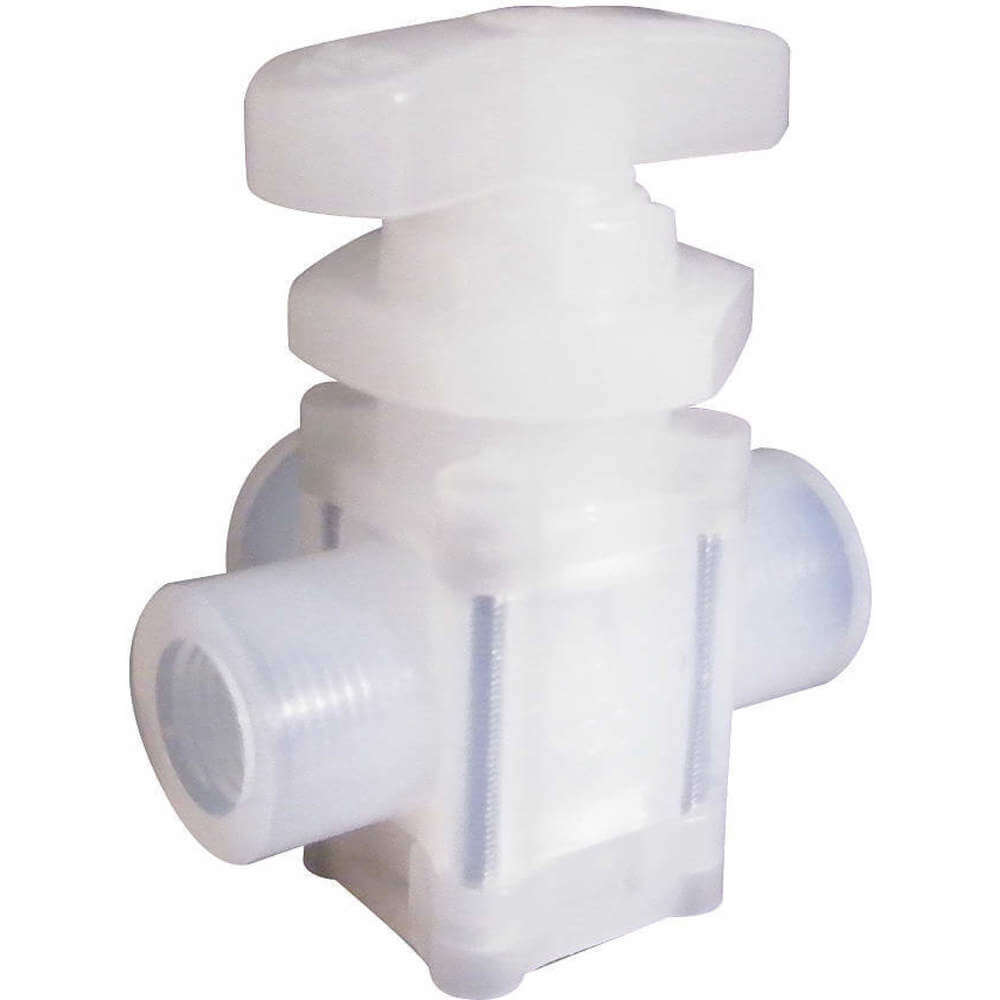

PARKER MV-10-1344-10 Manual Diaphragm, 1/4 FNPT Port Size
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€1,059.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Diaphragm |
| Ambient Temp. Range | 0°F to +150°F |
| Ambient Temperature - Maximum | 150°F |
| Ambient Temperature - Minimum | 0°F |
| Body Material | Stainless Steel, PFA, Viton, PTFE, PVDF, Stainless Steel |
| Coefficient Of Volume | 0.6 |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Type | FNPT x FNPT x FNPT |
| Connection Type - Side 2 | NPT |
| Connection Type-side 1 | NPTF |
| Diaphragm Material | PTFE |
| Flow Control | 3 Way |
| Fluid Temp. Range | 0 Degrees to 266 Degrees F |
| Fluid Temp. Range | 0°F to +266°F |
| For Media | Corrosive Chemicals, Water |
| Inlet Connection Gender | Female |
| Inlet Connection Size | 1/4" |
| Inlet Connection Type | NPT |
| Length | 2.37" |
| Max. Ambient Temperature | 66 Deg C |
| Max. Ambient Temperature | 66°C |
| Max. Fluid Temp. | 130°C |
| Max. Operating Temperature | 266°F |
| Max. Pressure | 80 psi |
| Media Temperature Range | 0°F to 266°F |
| Min. Ambient Temp. | 17°C |
| Min. Ambient Temp. | 17 Deg C |
| Min. Fluid Temp. | 17°C |
| Min. Fluid Temp. | 17 Deg C |
| Min. Operating Temperature | 0°F |
| Nominal Valve Size | 1/4" |
| Nut Material | PVDF |
| Pipe Size | 1/4" |
| Pressure Rating | 80 psig |
| Seal Material | FKM |
| Valve Series | MV-10 Series |
| Valve Ways | 3-Way |
| Wetted Materials | Modified PTFE, PFA |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 6.03 |
| Ship width (cm) | 6.35 |
| HS code | 8481805090 |
| Country of Origin | US |
Product Variants
| Product | Model | Connection Type | Max. Pressure | Coefficient Of Volume | Diaphragm Material | Seal Material | Fluid Temp. Range | Ambient Temp. Range | Max. Ambient Temperature | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

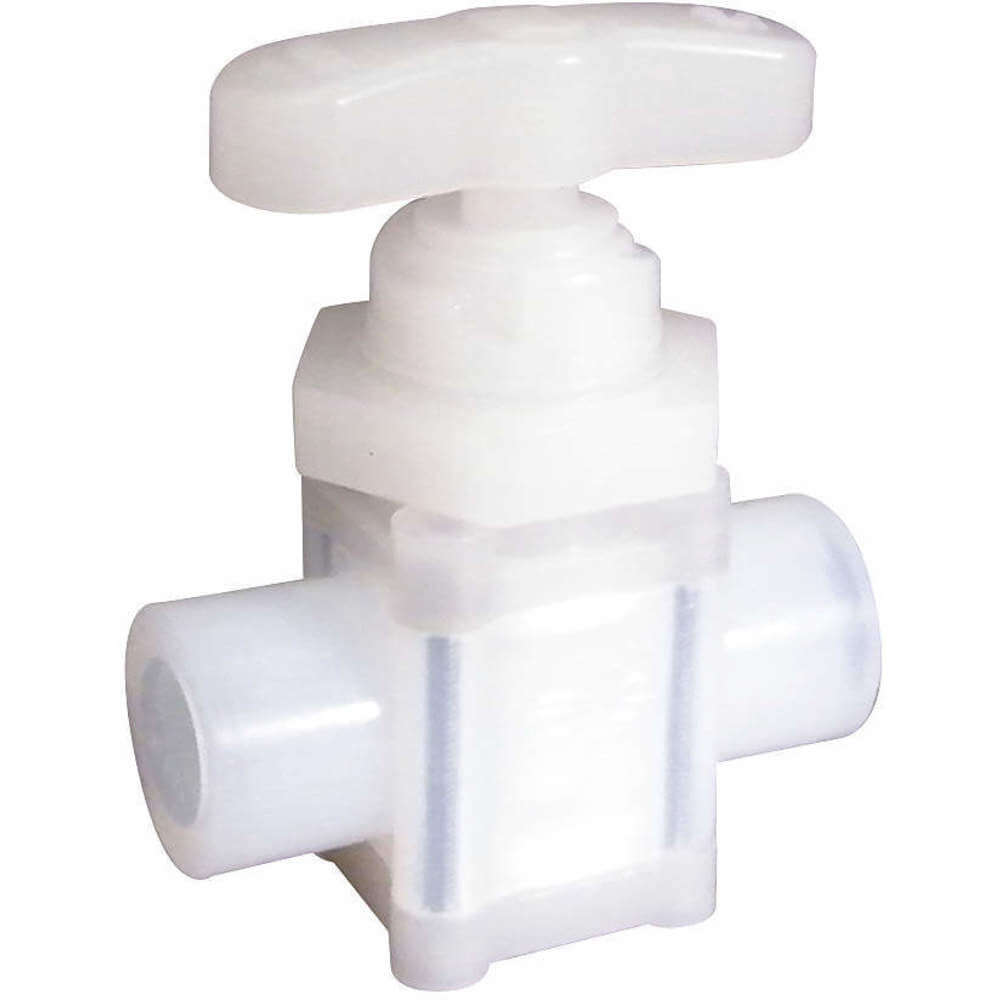

MV-10-1044-10 | FNPT x FNPT | 80 psi | 0.6 | PTFE | FKM | 0°F to +266°F | 0°F to +150°F | - | €930.61 |
