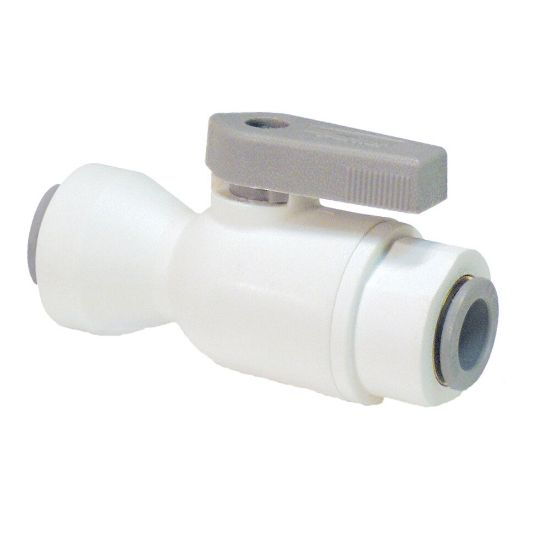

PARKER LFPP6VUC6 Ball Valve, 3/8 Inch Pipe, 3/8 Inch Tube, 150 PSI CWP, 35-200 Deg F, Push
Item: CT7CTZModel: LFPP6VUC6Cross Ref: 5UMV0
7 In Stock
Ships within 2 days via
5.00% off
€16.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Application | Water, Beverages, Food, Co2 |
| Average Surface Roughness | Not Applicable |
| Ball Material | PSU |
| Ball Opening Size | 0.19" |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Polypropylene |
| Body Seal Material | EPDM |
| Body Style | Inline |
| Color | White |
| Configuration Sub Type | Union |
| Configuration Type | Tube to Tube |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 3/8" |
| Connection Size-side 2 | 3/8" |
| Connection Type | Push x Push |
| Connection Type-side 1 | Push |
| Connection Type-side 2 | Push |
| Features | Self-Cleaning |
| Flow Dia. | 0.25" |
| For Media | Water |
| Handle | Lever |
| Handle Color | Gray |
| Handle Material | Nylon |
| Handle Type | Lever |
| Included Mounting | Not Applicable |
| Max. Pressure | 150 psi |
| Max. Pressure (cwp) | 150 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Max. Pressure-steam | 150 psi |
| Media Temp. | 35°F to 225°F |
| Nominal Valve Size | 3/8" |
| Nsf Certifications For Food And Drinking Water | Nsf 51, Nsf 61 |
| Operating Temp. | 35°F to 200°F |
| Outside Dia. 1 | 3/8" |
| Overall Length | 2.67" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 3/8" |
| Port | Full |
| Pressure | 0 psi to 150 psi |
| Seal Material | EPDM |
| Seat Material | EPDM |
| Series | LIQULFIT BALL VALVE Series |
| Specific Application | Meets Fda And Nsf-51 Requirements |
| Stem Material | PSU |
| Stem Type | Blowout Resistant |
| System Of Measurement | Imperial |
| Temp. | +35°F to +200°F |
| Thread 1 Type | NPT |
| Tube Size | 3/8" |
| Vacuum Service Rating | Not Rated |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | VUC Series |
| Valve Structure | Two Piece |
| Valve Type | Ball Valve |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 0.97 |
| Ship length (cm) | 6.78 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Seat Material | Ball Material | Max. Pressure | Stem Material | Color | Temp. | Port | Stem Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
16A-SWB16L-RT-T-SS-LD-GR | RPTFE | Stainless Steel | 2500 psi | Stainless Steel | - | -65°F to +350°F | Standard | Blowout Resistant | €1,989.46 | |
 |
HPBVB16FF | PEEK | Grade 316 | 6000 psi | 316 Stainless Steel | - | -65°F to +450°F | Full | Blowout Resistant | €3,250.25 | |
 |
FTPPB8VME8 | Buna N | PSU | 150 psi | PSU | Black | +35°F to +200°F | Full | Blowout Resistant | €23.42 | |
 |
LFPP8VME8 | EPDM | PSU | 150 psi | PSU | White | +35°F to +200°F | Full | Blowout Resistant | €27.83 | |
|
8A-SWB8L-RT-T-SS-LD-GR | RPTFE | Stainless Steel | 2500 psi | Stainless Steel | - | -65°F to +350°F | Standard | Blowout Resistant | €1,025.64 | |
 |
LFPP4VAS8 | EPDM | Polysulfone | 150 psi | Polysulfone | - | +35°F to +200°F | Full | One Piece | €24.79 | |
 |
LFPP4VMC8 | EPDM | PSU | 150 psi | PSU | White | +35°F to +200°F | Full | Blowout Resistant | €29.30 |
